Overview

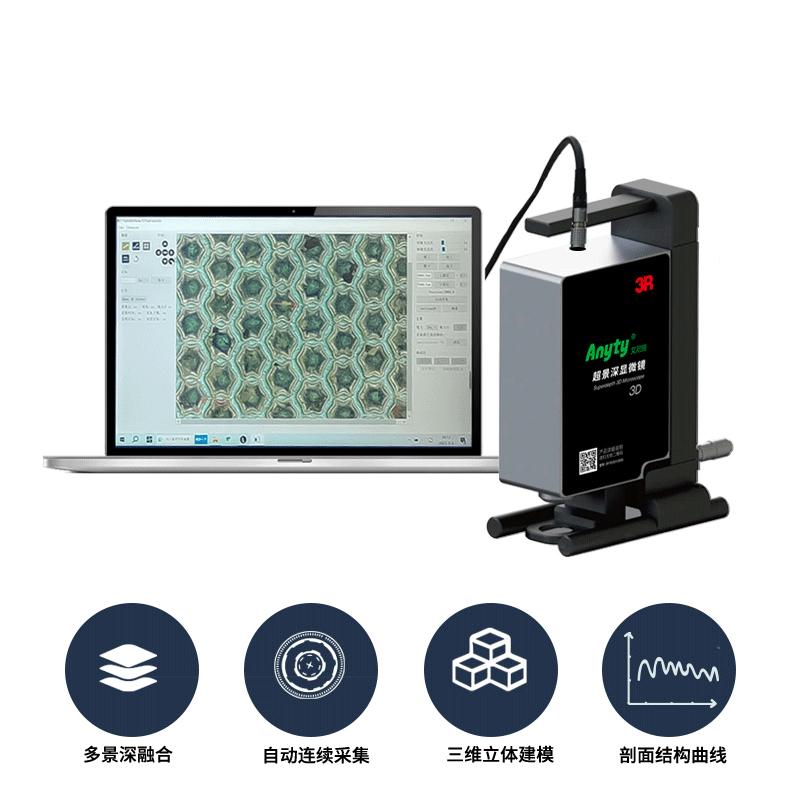

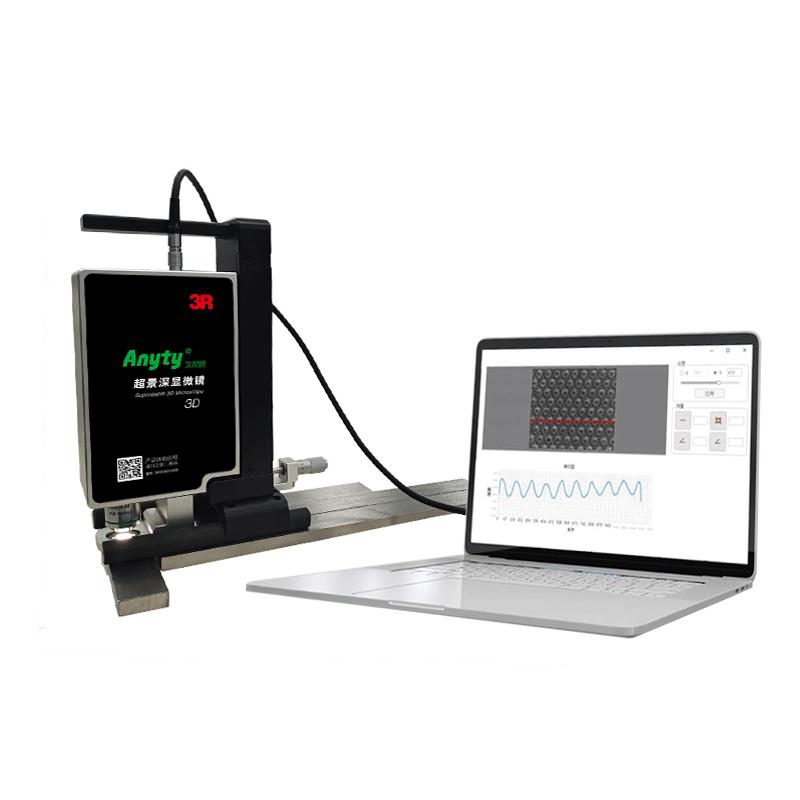

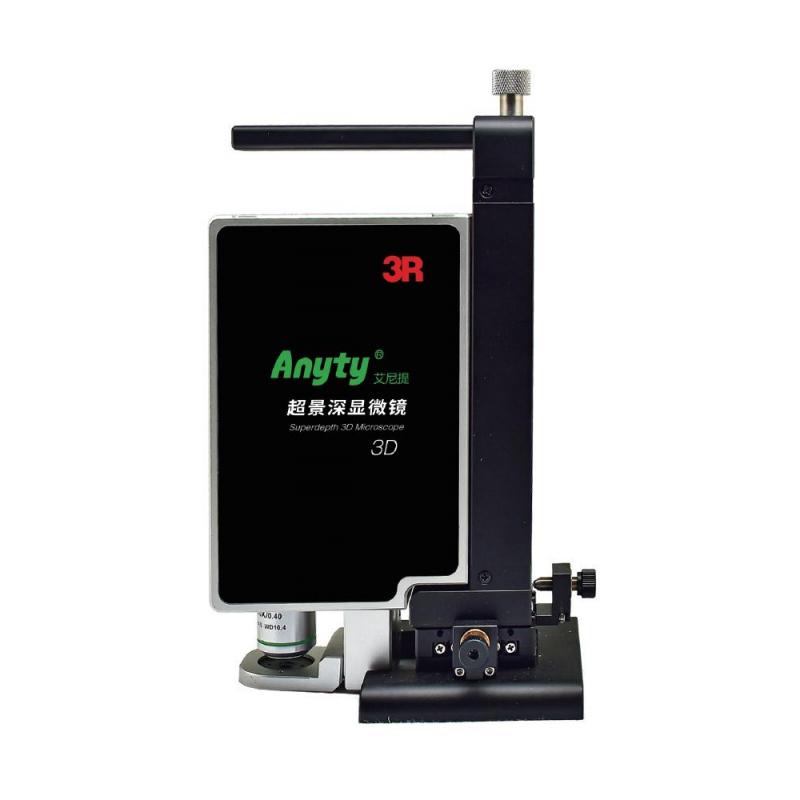

ANYTY 3R-YD3D3000S Ultra Depth of Field 3D Microscope adopts an integrated design, which is compact, portable, and does not require an external power supply. Equipped with a high-resolution Optical inspection lens, it can measure more than 1000 lines of reticulated data, support high-precision electric microfocus, the minimum image acquisition interval is 0.2 microns per step, and provides accurate measurement functions such as length, angle, and area to the micron level.
Features
1. Only a USB cable connection is required to achieve power supply and transmission
2. With 2D/3D measurement function, including angle, height, depth, section, straight line, area and other measurements
3. The lens can be replaced with 5X/10x/20x/50x (optional), up to 1500 times Optical inspection magnification
4. Can automatically collect multiple upper and lower limits of 10μm~ 100μm to synthesize images after high definition depth of field fusion
5. 2D to 3D stereoscopic imagery
6. The fuselage is integrated, lightweight and portable, supports data result analysis, and PDF export
7. Adopt coaxial and body-type lighting to quickly see the microscopic picture of the measured object

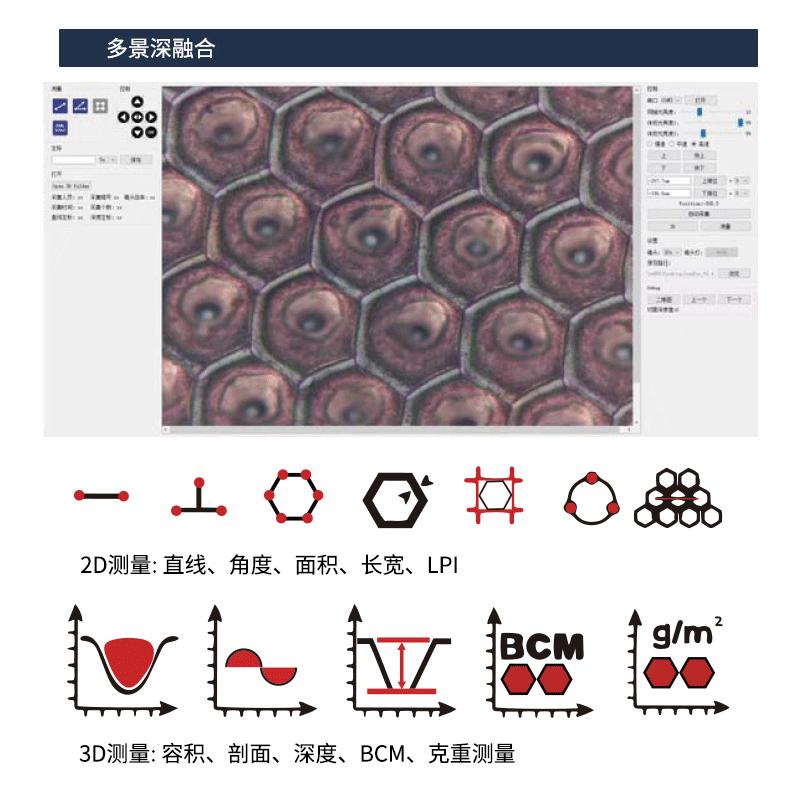

8. Multi-depth of field fusion: Get the "upper limit" and "lower limit" of the scanning range by adjusting the autofocus button, and then click "automatic acquisition" to complete the image depth of field fusion without other redundant operations
Principle
The microscope collects images at a minimum interval of 0.2 microns per step through a high-precision motorized microfocusing system, and automatically synthesizes high definition images with multi-depth-of-field fusion technology. Coaxial and body light illumination are integrated to ensure fast and clear imagery, and calculus volume measurement algorithm is used to achieve accurate measurement.
Applications
Gravure Printing Plate Making, Ceramic Reticulated Series, Printing Roller, Electronic Engraving, Laser Engraving, Chemical Etching
Steps
1. Connect the device for power supply and transmission through a USB cable
2. Adjust the autofocus button to set the "upper limit" and "lower limit" of the scanning range.
3. Click "Automatic Acquisition" to complete the image depth of field fusion
4. Carry out 2D/3D measurement, including angle, height, depth, section, line, area, etc
5. Save pictures and measurement data, generate PDF test analysis report
Notice
• Anti-shake design reduces measurement Stability from factory environment vibration
• Measurement accuracy of repeability is controlled within 5%
Make sure to connect using a compatible USB V3.0 port
• Pay attention to lens replacement and the scope of use of the mobile platform when operating
