Overview

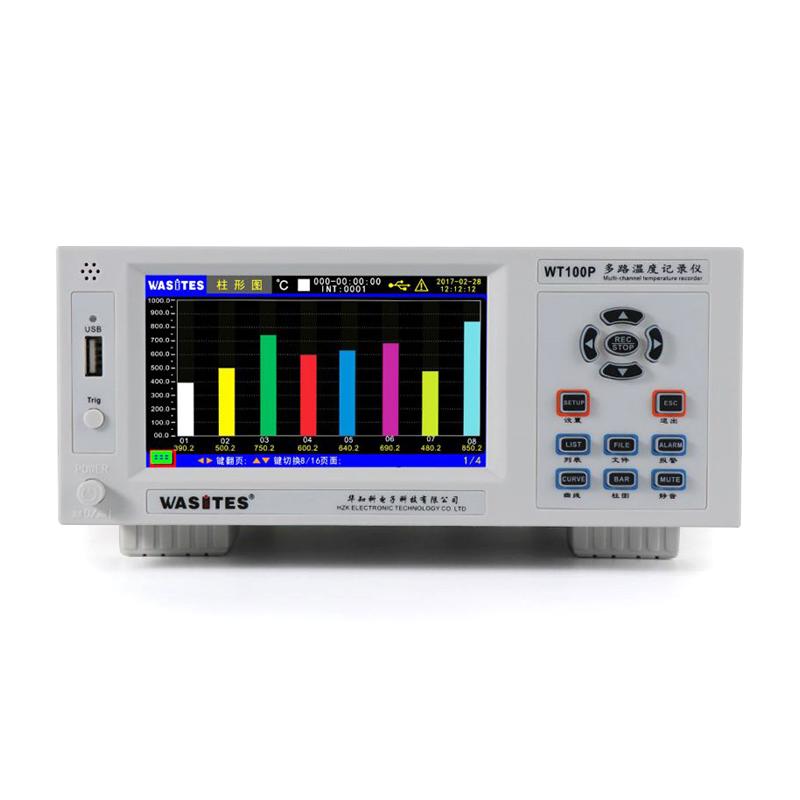

Wasites WT100P-48 multi-channel temperature recorder (upgraded Linear dispersion version) adopts 32-bit high-speed CPU and 5-inch industrial display screen, supports K, J, E, T, N, S, R, B type Thermocouple input, has a variety of Display mode, perfect function, superior performance, simple operation, can meet the needs of production, laboratory and R & D measurement. Widely used in lighting appliances, power tools, household appliances, motors, electric heating appliances, pharmaceutical, petroleum, chemical, metallurgy, electric power and other industries and R & D institutions of production lines, laboratories and Quality control departments, can customize various measurement functions according to user requests.
Features
1.High definition 5 inch IPS industrial LCD touch screen, resolution 854 × 480
32-Bit high-speed MCU data processing + 24-bit high-speed AD measurement chip, Response speed, high accuracy, stable and reliable
3. Multi-interface display, including file list, real-time list display, column chart display, real-time/record/analysis Linear dispersion display, alarm list, system settings, etc
4. Support 4/8/16/32 multi-interface real-time numerical display
5. Support multiple Sensor inputs: K, J, E, T, N, S, R, B type Thermocouple, each channel can be set with different Thermocouple types
6. Each channel name can be customized and exported to EXCEL
7. Channel voltage difference up to AC/DC 350V, super anti-interference ability
8. Each channel independently sets the alarm value of too high or too low, with sound and light alarm function
9. Independent error correction for each channel Y = KX + B
10. Built-in 8G large memory, supports up to 64 files, each file 130,000 group of data, 1 second interval can be continuously recorded for up to 97 days
11. Record files can be deleted and exported to a U disk or PC EXCEL with radio or multi-selection
12. Double relay alarm output, standard USB and RS485 Communication interface
13. With communication address code settings, it can be used in multiple machines simultaneously, and communication protocols can be provided
14. Modular design, 8 channels per module, maximum support for 64 channels, expansion automatic identification
15. Multi-level alarm indication, HH, H, L, LL alarm settings and alarm indication, you can view historical alarm records
Principle
The instrument consists of Thermocouple, photoelectric switch selector, amplifier, A/D converter, monolithic microcomputer, keyboard, display, Communication interface, Data storage device, cold junction compensation and other parts. The photoelectric switch selector selects the corresponding channel signal, amplifies it through the signal amplifier, and then converts the analog signal into a data signal through the A/D converter. The monolithic microcomputer performs data processing. The cold junction compensation measurement circuit obtains the cold junction temperature value at room temperature. The measurement signal and the cold junction temperature value are processed by the monolithic microcomputer to obtain the correct Measuring temperature value and display it on the display screen. The keyboard, Communication interface and Data storage allow data to be set up, stored and analyzed, and can also be connected to a computer for Data analysis through the Communication interface.
Applications
Lighting appliances, electric tools, household appliances, motors, electric heating appliances, medicine, petroleum, chemical, metallurgy, electric power and other industries and R & D institutions of production lines, laboratories, Quality control departments
Steps
1. Connect Thermocouple and Power Supply
2. Select the display interface through the touch screen (such as real-time list, Linear dispersion, bar chart, etc.)
3. Set each channel Thermocouple type and alarm value
4. Customize the channel name and export to EXCEL (optional)
5. Set the recording interval and file parameters
6. Start recording, and the instrument automatically collects and stores data
7. Export data through U disk or Communication interface for analysis
8. View alarm records and historical data
Notice
• Ensure that the power supply is within the range of AC85-265V, Frequency 50Hz/60Hz
• Operating Environment Temperature 5~ 40 ℃, Humidity 20%~ 80%, No condensation
• The voltage difference between channels does not exceed AC/DC 350V to avoid over-limit use
• Thermocouple type should be consistent with the settings to avoid measurement errors
• Regularly check the accuracy of cold junction compensation to ensure measurement accuracy
• Make sure the USB stick or connection is stable when exporting data to prevent data loss
• Alarm settings need to be adjusted according to actual needs to avoid false alarms
• Ensure that the automatic identification function is normal when the module is expanded
• Avoid use in strong interference environments to maintain anti-interference ability
