Overview

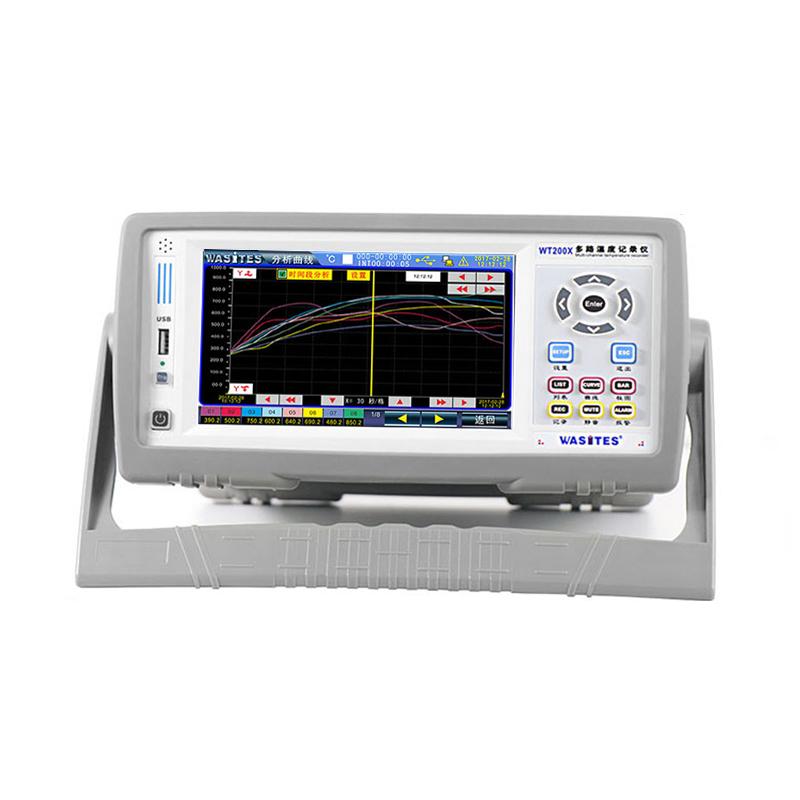

The Wasites WT200-8 multi-channel temperature recorder (smart) uses a 32-bit high-speed CPU for data processing, is equipped with a 7-inch industrial display capacitive touch screen, supports K, J, E, T, N, S, R, B type Thermocouple input, has a variety of Display modes and self-developed Operating system. The instrument is fully functional, superior performance and simple operation, which can meet the needs of production, laboratory and R & D measurement. It is widely used in the production lines, laboratories and Quality control departments of lighting appliances, power tools, household appliances, motors, electric heating appliances, medicine, petroleum, chemical industry, metallurgy, electric power and R & D institutions, and can customize various measurement functions to meet higher application requirements.
Features
1 high definition 7 inch IPS industrial LCD touch screen, resolution 1024 × 600
32-Bit high-speed MCU data processing + 24-bit high-speed AD measurement chip, Response speed, high accuracy, stable and reliable
3. Multi-interface display, including file list, real-time list display, column chart (temperature rise) display, real-time/record/analysis Linear dispersion display, alarm list, system settings, etc
4. Operation prompts Humanized design, easy to understand and simple to operate
5. Supports multiple Sensor inputs: K, J, E, T, N, S, R, B type Thermocouple
6. Basic measurement accuracy 0.2 ℃ + 2 words (excluding Sensor), cold junction compensation accuracy 0.5 ℃
7. Independent error correction for each channel Y = KX + B
8. Different Thermocouple types can be set for each channel
9. Each channel name can be customized and exported to Excel.
10. The voltage difference between channels is as high as AC/DC 350V, providing excellent anti-interference ability
11. Maximum support 64 files, each file 130,000 set of data, 1 second interval can be recorded continuously for 97 days
12. Record files can be deleted and exported with single or multiple selections, and support U disk and PC to directly export Excel files
13. Standard 4 Communication interfaces: USB, RS485, RS232, LAN
14. Detailed file Linear dispersion analysis can be performed, supporting coordinate setting, Linear dispersion translation zoom in and out, time line movement and arbitrary time period analysis
15. Modular design, 8 channels per module, maximum support for 64 channels, users can expand their own capacity
Principle
The instrument consists of Thermocouple, photoelectric switch selector, amplifier, A/D converter, monolithic microcomputer, keyboard, display, Communication interface, Data storage device and cold junction compensation. The photoelectric switch selector selects the corresponding channel signal, which is amplified by the signal amplifier, and the A/D converter converts the analog signal into a digital signal and transmits it to the monolithic microcomputer for data processing. The cold junction compensation circuit performs room temperature measurement to obtain the cold junction temperature value. The measurement signal and the cold junction temperature value are processed by the monolithic microcomputer to obtain the correct Measuring temperature value and displayed on the display screen. The keyboard, Communication interface and Data storage allow data to be set up, stored and analyzed, and can also be connected to a computer for Data analysis through the Communication interface.
Applications
Lighting appliances, power tools, household appliances, motors, electric heating appliances, medicine, petroleum, chemical, metallurgy, electric power, R & D institutions
Steps
1. Connect the Thermocouple Sensor to the corresponding channel
2. Select the display interface (file list, real-time list, bar chart, Linear dispersion, etc.) through the touch screen
3. Set the Thermocouple type and parameters of each channel
4. Customize the channel name (optional)
5. Set the recording interval and file parameters
6. Start data logging and monitoring
7. Export data files through U disk or Communication interface
8. Linear dispersion analysis with built-in analysis
Notice
• Ensure that the power supply is within the range of AC85-265V
• Operating Environment Temperature 5~ 40 ℃, Humidity 20%~ 80% (no condensation)
• Note that the voltage difference between channels is up to AC/DC 350V
• Recording interval settings range from 1 second to 24 hours
• Thermocouple type needs to match the settings
• Regular error calibration
• Make sure the storage device is connected properly when exporting files
