Overview

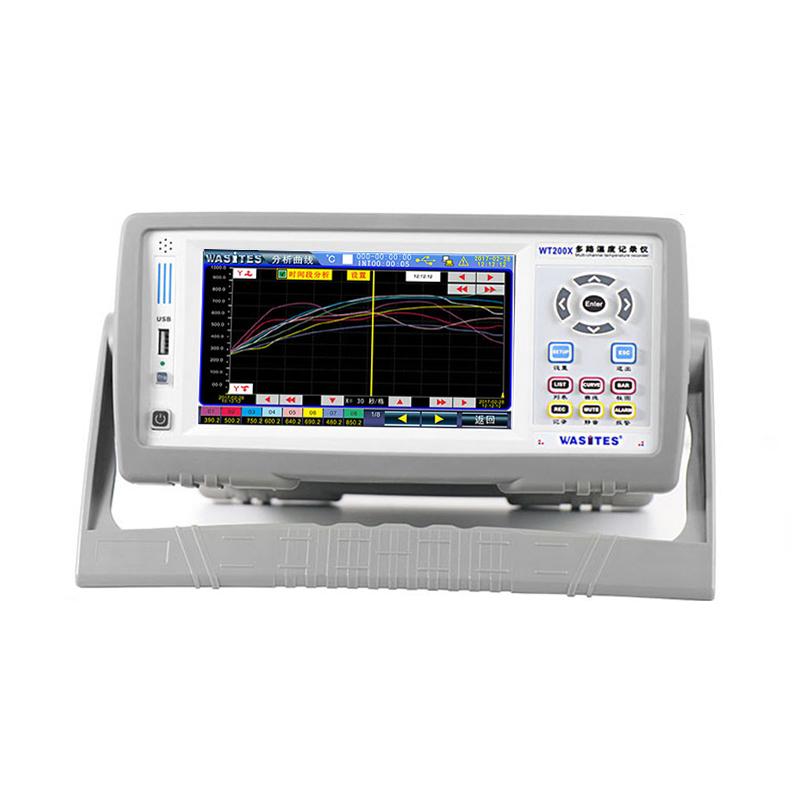

The Wasites WT200-16 multi-channel temperature recorder uses 32-bit high-speed CPU and 7-inch industrial display capacitive touch screen, supports K, J, E, T, N, S, R, B type Thermocouple input, has a variety of Display modes and self-developed Operating system. The instrument has complete functions, superior performance and simple operation, which can meet the needs of production, laboratory and R & D measurement. The measurement function can be customized according to customer needs.
Features
1 high definition 7 inch IPS industrial LCD touch screen, resolution 1024 × 600
32-Bit high-speed MCU data processing + 24-bit high-speed AD measurement chip, Response speed, high accuracy, stable and reliable
3. Multi-interface display, including file list, real-time list display, column chart (temperature rise) display, real-time/record/analysis Linear dispersion display, alarm list, system settings, etc
4. Humanized operation prompts, easy to understand and simple to operate
5. Supports multiple Sensor inputs: K, J, E, T, N, S, R, B type Thermocouple
6. Basic measurement accuracy 0.2 ℃ + 2 words (excluding Sensor), cold junction compensation accuracy 0.5 ℃
7. Independent error correction for each channel Y = KX + B
8. Different Thermocouple types can be set for each channel
9. Customize each channel name and export Excel
10. The voltage difference between channels can be as high as AC/DC 350V, providing excellent anti-interference ability
11. Maximum support 64 files, each file 130,000 set of data, 1 second interval can be recorded continuously for 97 days
12. Record files can be deleted and exported with single or multiple selections, and support U disk and PC to directly export Excel files
13. Standard 4 Communication interfaces: USB, RS485, RS232, LAN
14. Detailed file Linear dispersion analysis, support coordinate setting, Linear dispersion translation zoom in and out, time reticle movement, etc
15. Modular design, 8 channels per module, maximum support for 64 channels, users can expand their own capacity
Principle
The instrument is composed of Thermocouple, photoelectric switch selector, amplifier, A/D converter, monolithic microcomputer, keyboard, display, Communication interface, Data storage device, cold junction compensation and other parts. The photoelectric switch selector selects the corresponding channel signal, amplifies it by the signal amplifier, converts it into a digital signal through the A/D converter, and performs data processing by the monolithic microcomputer. The cold junction compensation circuit measures the normal temperature value, and finally obtains the correct Measuring temperature value and displays it on the display screen. The keyboard, Communication interface and Data storage device can set, store and analyze the data, and can also be connected to the computer through the Communication interface for Data analysis.
Applications
Production lines, laboratories, Quality control departments of production enterprises in the fields of lighting appliances, electric tools, household appliances, motors, electric heating appliances, medicine, petroleum, chemical industry, metallurgy, electric power and R & D institutions
Steps
1. Connect Thermocouple Sensor
2. Select measurement channel and parameter settings via touch screen
3. Set recording interval and File Storage method
4. Initiation of data collection and recording
5. View real-time data through multiple display interfaces
6. Linear dispersion analysis using file analysis
7. Export data via USB, RS485, RS232 or LAN interface
8. Optionally delete or export the log file
Notice
• Please read the instructions carefully before use
• Ensure that the power supply is within the range of AC85-265V
• Pay attention to environmental conditions: Temperature 5~ 40 ℃, Humidity 20%~ 80% (no condensation)
• The maximum voltage difference between channels is AC/DC 350V, if you need higher voltage, you need to customize it.
• Thermocouple type needs to match the settings
• Periodic error correction to ensure Measurement accuracy
Make sure the storage device is connected properly when exporting data
