Overview

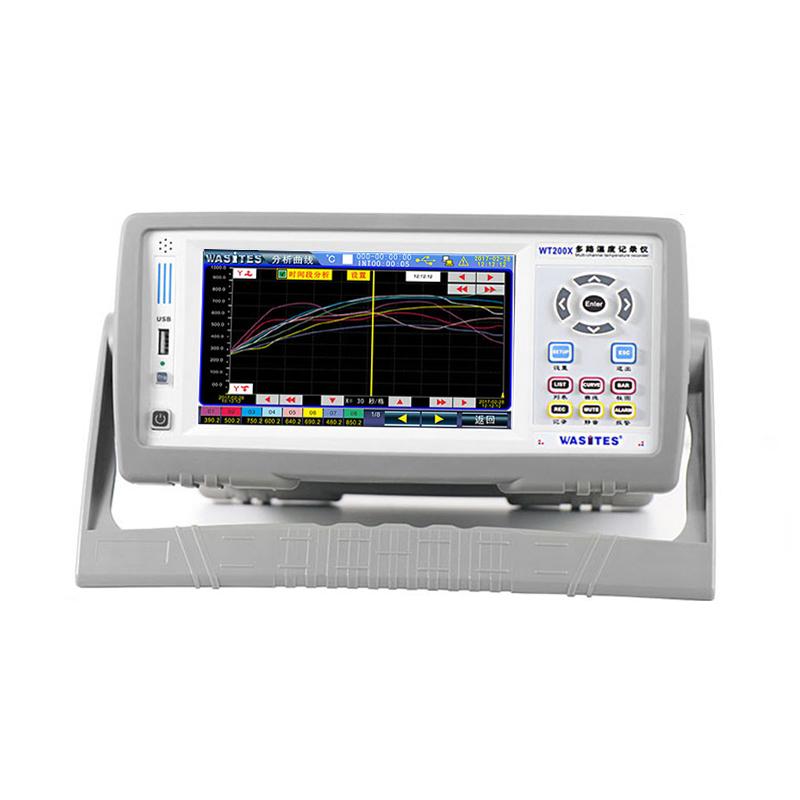

Wasites WT200-24 multi-channel temperature recorder (smart) adopts 32-bit high-speed CPU for data processing, equipped with 7-inch industrial display capacitive touch screen, supports K, J, E, T, N, S, R, B type Thermocouple input, and has a variety of Display modes. The instrument is simple and intuitive to operate, has perfect functions and superior performance, and can meet the needs of production, laboratory and R & D measurement. Widely used in lighting appliances, power tools, household appliances, motors, electric heating appliances, pharmaceutical, petroleum, chemical, metallurgy, electric power and other industries and R & D institutions, production lines, laboratories and Quality control departments, and can customize various measurement functions according to user requests.
Features
1 high definition 7 inch IPS industrial LCD touch screen, resolution 1024X600
32-Bit high-speed MCU data processing + 24-bit high-speed AD measurement chip, Response speed, high accuracy, stable and reliable
3. Multi-interface display, including file list, real-time list display, column chart (temperature rise) display, real-time/record/analysis Linear dispersion display, alarm list, system settings, etc
4. Operation prompts Humanized design, easy to understand and simple to operate
5. Supports multiple Sensor inputs: K, J, E, T, N, S, R, B type Thermocouple
6. Basic measurement accuracy: 0.2 ℃ + 2 words (without Sensor), cold junction compensation accuracy: 0.5 ℃
7. Independent error correction for each channel Y = KX + B
8. Each channel can be set to use different Thermocouple types
9. Each channel name can be customized and exported to EXCEL
10. The voltage difference between channels can be as high as AC/DC 350V, providing excellent anti-interference ability
11. Maximum support 64 files, each file 130,000 set of data, 1 second interval can continuously record up to 97 days
12. Record files can be deleted and exported with single or multiple selections, and support U disk and PC to directly export Excel files
13. Standard 4 Communication interfaces: USB, RS485, RS232, LAN (network)
14. Modular design, 8 channels per module, maximum support for 64 channels, users can expand their own capacity and automatically identify
Principle
The instrument consists of Thermocouple, photoelectric switch selector, amplifier, A/D converter, monolithic microcomputer, keyboard, display, Communication interface, Data storage device, cold junction compensation and other parts. The photoelectric switch selector selects the corresponding channel signal, amplifies it through the signal amplifier, and then converts the analog signal into a data signal through the AD converter, which is processed by the monolithic microcomputer for data processing. The cold junction compensation circuit performs room temperature measurement to obtain the cold junction temperature value. The measurement signal and the cold junction temperature value are processed by the monolithic microcomputer to obtain the correct Measuring temperature value and display it on the display screen. The keyboard, Communication interface and Data storage allow data to be set up, stored and analyzed, and can also be connected to a computer for Data analysis through the Communication interface.
Applications
Lighting appliances, power tools, household appliances, motors, electric heating appliances, medicine, petroleum, chemical, metallurgy, electric power, R & D institutions, production lines, laboratories, Quality control departments
Steps
1. Connect the Thermocouple Sensor to the corresponding channel
2. Select the display interface through the 7-inch touch screen (such as real-time list, Linear dispersion chart, column chart, etc.)
3. Set the recording interval (HH: MM: SS, adjustable from 1 second to 24 hours)
4. Customize the channel name and Thermocouple type as required
5. Start recording, and the data is automatically stored in the file
6. Export the record file to Excel through U disk or Communication interface
7. Use the built-in analysis function for Linear dispersion analysis, set the X-axis and Y-axis coordinates, translate and zoom in and out Linear dispersion
8. View the alarm list and handle the alarm
Notice
• Ensure that the power supply is within the range of AC85-265V +/- 10% 50Hz/60Hz
• Operating Environment 5~ 40 ℃, 20%~ 80% RH (no condensation)
• The maximum voltage difference between channels is AC/DC 350V to avoid overvoltage use
• Thermocouple type needs to match settings to ensure measurement accuracy
• Record files support up to 64, each file 130,000 group of data, pay attention to storage space
• Make sure the USB stick or PC connection is stable when exporting files
• Relay output can be set with backlash and delay, which need to be adjusted according to the application
• The alarm buzzer can be set to silent, but it needs to be checked regularly that the alarm function is normal
• Modular expansion to ensure that the automatic identification function is normal
