Overview

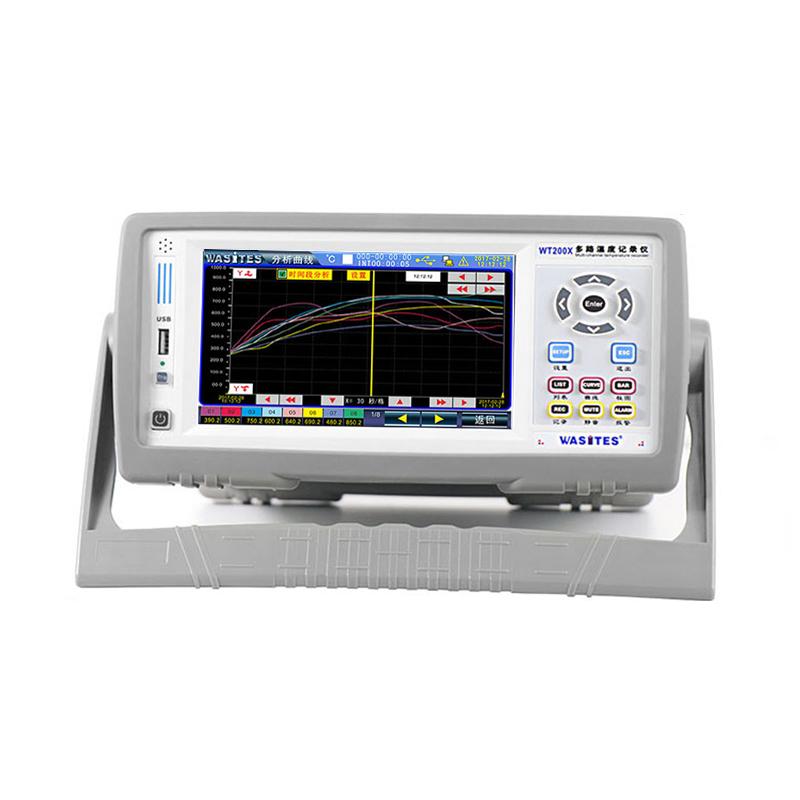

The Wasites WT200-32 multi-channel temperature recorder (smart) uses a 32-bit high-speed CPU for data processing, is equipped with a 7-inch industrial display capacitive touch screen, supports K, J, E, T, N, S, R, B type Thermocouple input, and has a variety of Display modes. The instrument is simple and intuitive to operate, has complete functions and superior performance, and can meet the needs of production, laboratory and R & D measurement.
Features
1 high definition 7 inch IPS industrial LCD touch screen, resolution 1024X600
32-Bit high-speed MCU data processing + 24-bit high-speed AD measurement chip, Response speed, high accuracy, stable and reliable
3. Multi-interface display, including file list, real-time list display, column chart (temperature rise) display, real-time/record/analysis Linear dispersion display, alarm list, system settings, etc
4. Operation prompts Humanized design, easy to understand and simple to operate
5. Supports multiple Sensor inputs: K, J, E, T, N, S, R, B type Thermocouple
6. Basic measurement accuracy: 0.2 ℃ + 2 words (without Sensor), cold junction compensation accuracy: 0.5 ℃
7. Independent error correction for each channel Y = KX + B
8. Each channel can be set to use different Thermocouple types
9. Each channel name can be customized and EXCEL can be exported
10. The voltage difference between channels can be as high as AC/DC 350V, providing excellent anti-interference ability
11. Maximum support 64 files, each file 130,000 set of data, 1 second interval can continuously record up to 97 days
12. Record files can be deleted and exported with single or multiple selections, and Excel files can be directly exported from U disk and PC
13. Standard 4 Communication interfaces: USB, RS485, RS232, LAN (network)
14. Detailed document Linear dispersion analysis, X-axis Y-axis coordinate setting, Linear dispersion can be translated to zoom in and out
15. Modular design, 8 channels per module, maximum support for 64 channels, users can expand their own capacity
Principle
The instrument consists of Thermocouple, photoelectric switch selector, amplifier, A/D converter, monolithic microcomputer, keyboard, display, Communication interface, Data storage device, cold junction compensation and other parts. The photoelectric switch selector selects the corresponding channel signal, amplifies it by the signal amplifier, and then converts the analog signal into a data signal through the AD converter, which is processed by the monolithic microcomputer for data processing. The cold junction compensation circuit performs room temperature measurement to obtain the cold junction temperature value. The measurement signal and the cold junction temperature value are processed by the monolithic microcomputer to obtain the correct Measuring temperature value and displayed on the display screen. The keyboard, Communication interface and Data storage allow data to be set up, stored and analyzed, and can also be connected to a computer for Data analysis through the Communication interface.
Applications
Production lines, laboratories, Quality control departments of production enterprises in the fields of lighting appliances, electric tools, household appliances, motors, electric heating appliances, petroleum, chemical industry, metallurgy, electric power and R & D institutions
