Overview

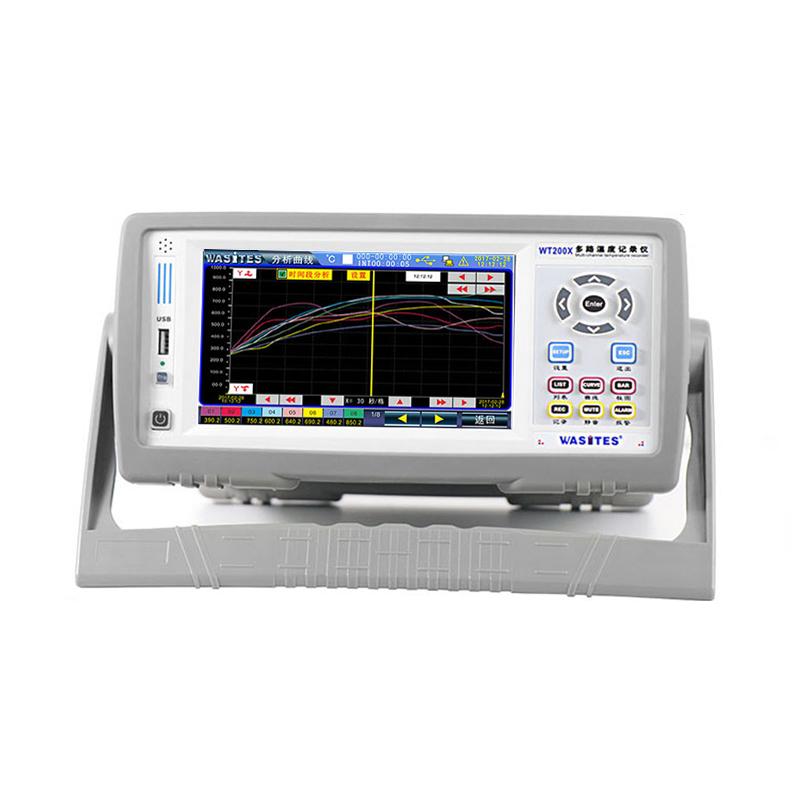

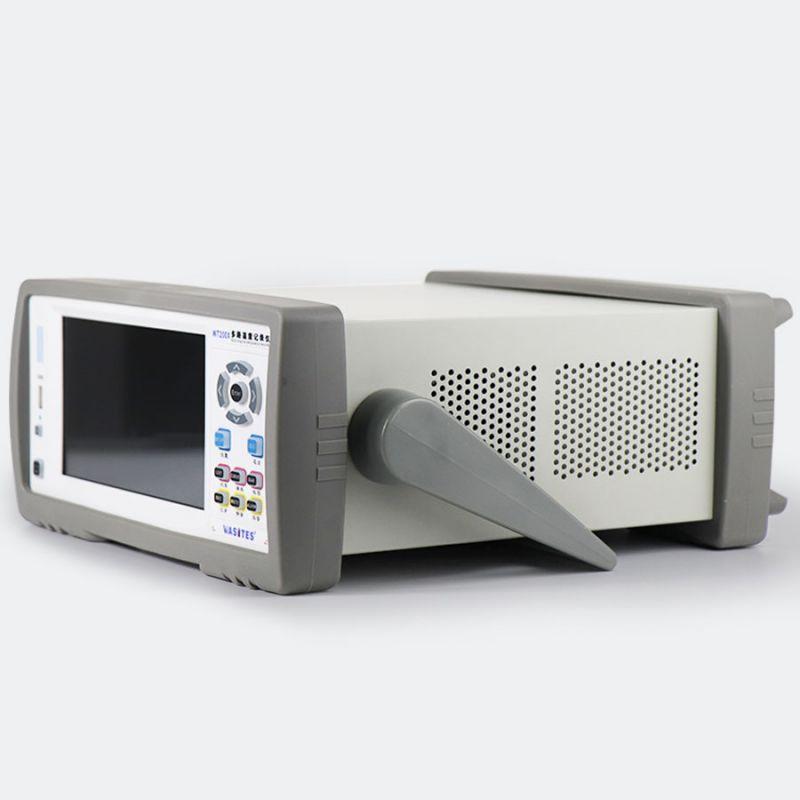

Wasites WT200-40 multi-channel temperature recorder (smart) adopts 32-bit high-speed CPU for data processing, equipped with 7-inch industrial display capacitive touch screen, supports K, J, E, T, N, S, R, B type Thermocouple input, and has a variety of Display modes. The instrument is simple to operate and easy to understand, with perfect functions and superior performance, which can meet the needs of production, laboratory and R & D measurement. Widely used in lighting appliances, power tools, household appliances, motors, electric heating appliances, petroleum, chemical, metallurgy, electric power and other industries and R & D institutions, production lines, laboratories and Quality control departments, and can customize measurement functions according to user requests.
Features
1 high definition 7 inch IPS industrial LCD touch screen, resolution 1024X600
32-Bit high-speed MCU data processing + 24-bit high-speed AD measurement chip, Response speed, high accuracy, stable and reliable

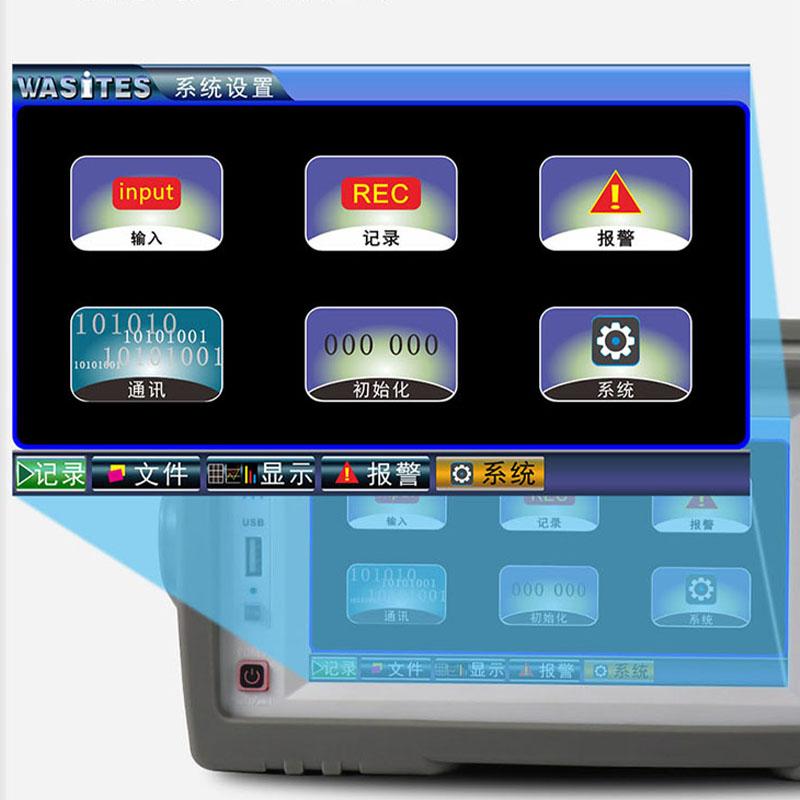

3. Multi-interface display, including file list, real-time list display, column chart (temperature rise) display, real-time/record/analysis Linear dispersion display, alarm list, system settings, etc
4. Operation prompts Humanized design, easy to understand and simple to operate
5. Supports multiple Sensor inputs: K, J, E, T, N, S, R, B type Thermocouple
6. Basic measurement accuracy 0.2 ℃ + 2 words (excluding Sensor), cold junction compensation accuracy 0.5 ℃
7. Independent error correction for each channel Y = KX + B
8. Different Thermocouple types can be set for each channel
9. Each channel name can be customized and exported to Excel.
10. The voltage difference between channels can be as high as AC/DC 350V, providing excellent anti-interference ability
11. Maximum support 64 files, each file 130,000 set of data, 1 second interval can continuously record up to 97 days
12. Record files can be deleted and exported with single or multiple selections, and Excel files can be directly exported from U disk and PC
13. Standard 4 Communication interfaces: USB, RS485, RS232, LAN (network)
14. Detailed document Linear dispersion analysis, X-axis Y-axis coordinate setting, Linear dispersion translation zoom in and out

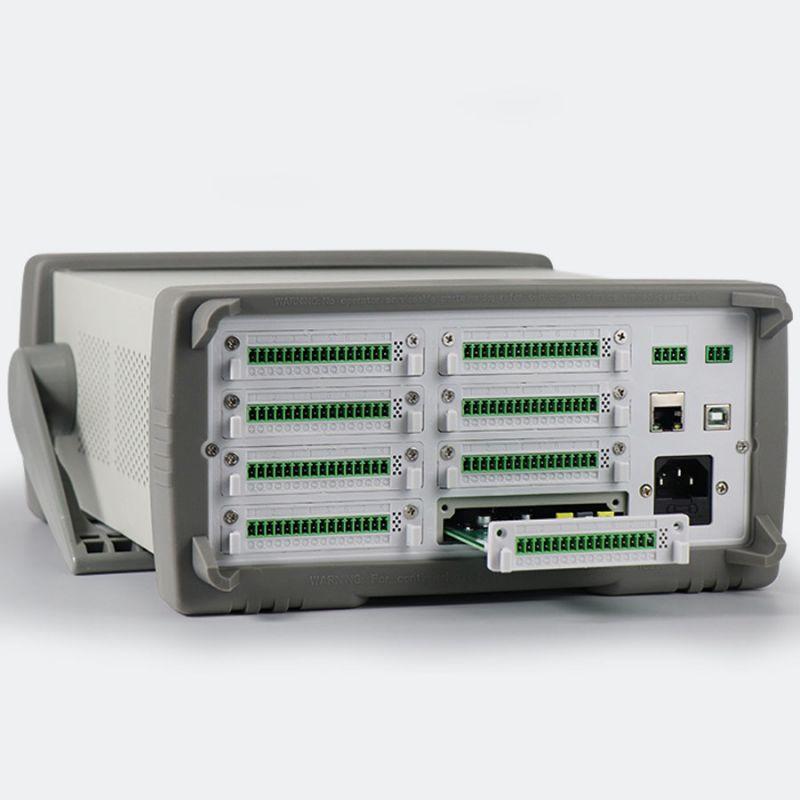

15. Modular design, 8 channels per module, maximum support for 64 channels, users can expand their own capacity
Principle
The instrument consists of Thermocouple, photoelectric switch selector, amplifier, A/D converter, monolithic microcomputer, keyboard, display, Communication interface, Data storage device, cold junction compensation and other parts. The photoelectric switch selector selects the corresponding channel signal, amplifies it through the signal amplifier, and then converts the analog signal into a digital signal through the AD converter, which is processed by the monolithic microcomputer for data processing. The cold junction compensation circuit measures the normal temperature to obtain the cold junction temperature value. The measurement signal and the cold junction temperature value are processed by the monolithic microcomputer to obtain the correct Measuring temperature value and display it on the display screen. The keyboard, Communication interface and Data storage allow data to be set up, stored and analyzed, and can also be connected to a computer for Data analysis through the Communication interface.
Applications
Lighting appliances, power tools, household appliances, motors, electric heating appliances, petroleum, chemical, metallurgy, electric power, R & D institutions
Steps
1. Connect Thermocouple to the corresponding channel
2. Select the display interface through the touch screen (such as real-time list, Linear dispersion, bar chart, etc.)
3. Set the recording interval (HH: MM: SS, 1 second to 24 hours)
Step 4 Start recording data
5. Query historical Linear dispersion and alarm records through file list
6. Export Excel files using a USB stick or PC
7. Linear dispersion analysis, set the coordinate axis, translate zoom in and reduce Linear dispersion
Notice
• environmental conditions: 5~ 40 ℃, 20%~ 80% RH (no condensation)
• Power supply: AC85-265V +/- 10% 50Hz/60Hz, Power < 10W
• The voltage difference between channels can be as high as AC/DC 350V, pay attention to high voltage live measurement
• The recording interval can be adjusted arbitrarily, but the total duration is limited by the file size
• Thermocouple type and error correction can be set independently for each channel
• Alarm buzzer can be set to mute
• Modular design, users can expand the channel by themselves
