Overview

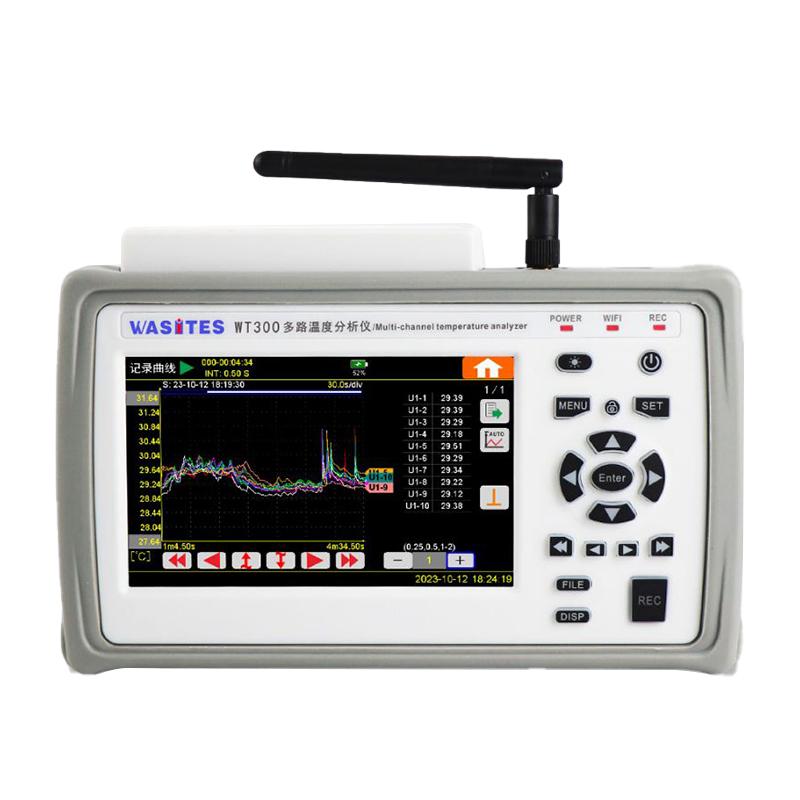

Wasites WT300 Multi-channel Temperature Analyzer (Handheld) uses high-speed CPU for data processing and 24-bit high-speed AD for measurement, equipped with 5-inch industrial display screen, supports KJETNSRB type Thermocouple input, has a variety of Display modes, complete functions, superior performance, simple operation, can meet the needs of production, laboratory and R & D measurement. Widely used in lighting appliances, power tools, household appliances, motors, electric heating appliances, pharmaceutical, petroleum, chemical, metallurgical, electric power and other industries and R & D institutions and other production lines, laboratories, Quality control departments, and can customize measurement functions to meet higher applications.
Features
1.High definition 5 inch IPS industrial LCD touch screen, resolution 800X480
2. High-speed MCU data processing + 24-bit high-speed AD measurement chip, Response speed, high accuracy, stable and reliable
3. Communicate with the computer via wireless connection
4. Wireless expansion of the measurement channel to achieve 40 channels of temperature measurement
5. The fastest recording speed of 0.1 second interval, interval setting method HH: MM: SS. SSS

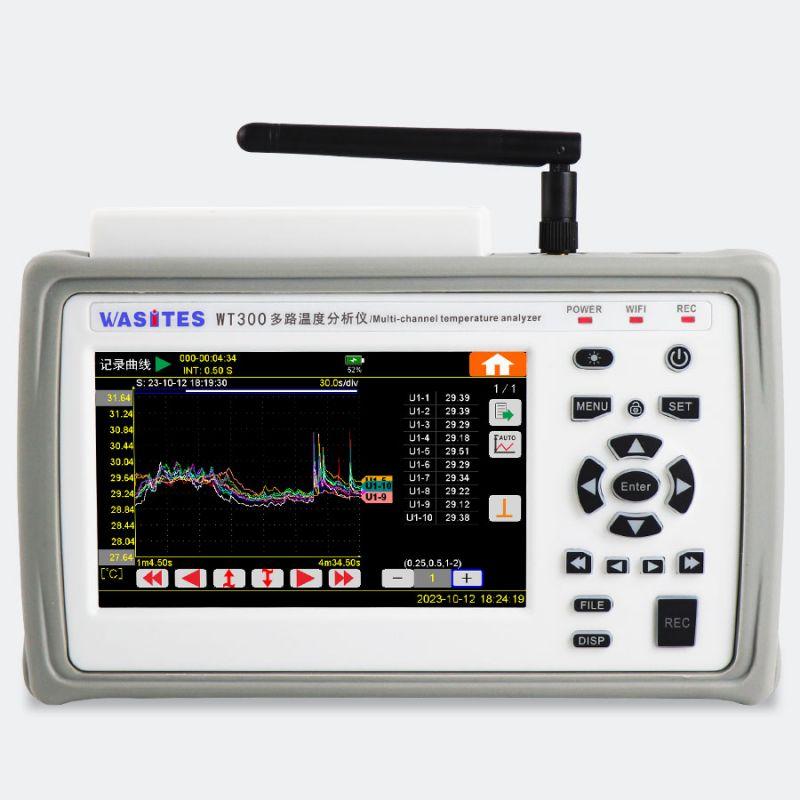

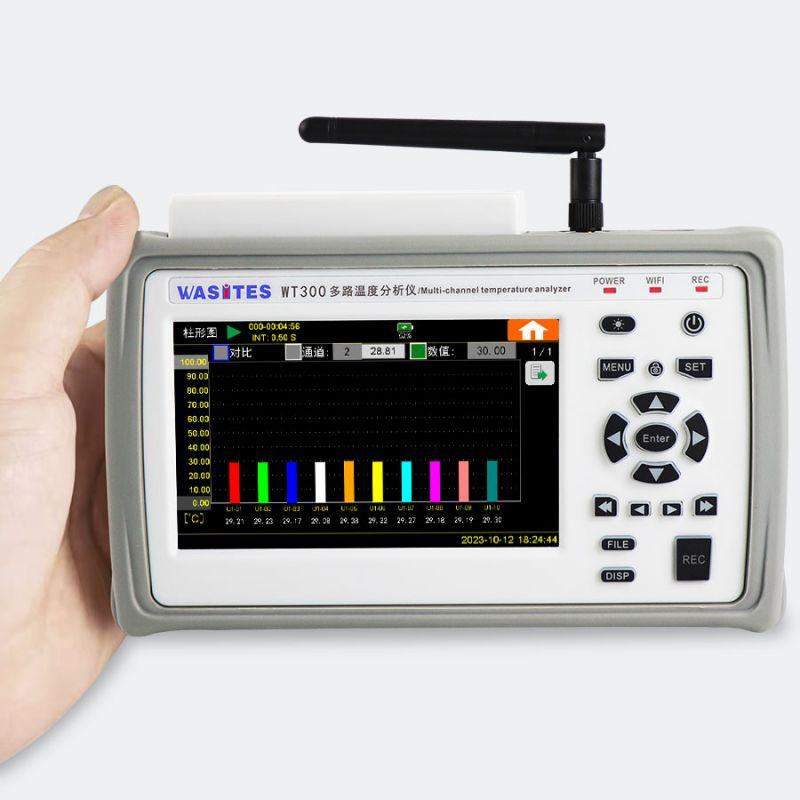

6. Multi-interface display, including file list, real-time list, bar chart display, real-time/record/analysis Linear dispersion display, alarm list, system settings, etc
7. Detailed X-axis and Y-axis coordinate settings can be carried out in real time to realize up, down, left and right movement and zoom in and out, the time marking line moves left and right, and can display the corresponding temperature value. Intelligent Linear dispersion adjustment
8. Support 10, 20, 40 multi-interface real-time numerical display
9. Supports Multiple Sensor Inputs: K JETNSR B
10. Each channel can be set using different Thermocouple types
11. You can customize the name of each channel and export the custom name to EXCEL.
12. The voltage difference between channels can be as high as AC/DC350V, providing excellent anti-interference capabilities
13. Each channel can independently set the alarm value of too high or too low, and has the function of sound and light alarm
14. Independent error correction for each channel Y = KX + B
15. Built-in 8G large memory, file list display, maximum support for 100 files, each file 120,000 group of data, 1 second interval can be continuously recorded for up to 138 days
16. TYPE-C interface, OTG function, integrating charging, communication, U disk and virtual U disk
17.18W fast charge, 2 hours full charge, up to 10 hours of use (turn off WIFI)
18. High-speed U disk interface, faster transmission speed, 40 times faster than ordinary MCU full speed
19. Record files can be deleted and exported with single or multiple selections, and EXCEL files can be directly exported from U disk and PC
20. One-click screenshots
Principle
The instrument consists of Thermocouple, photoelectric switch selector, amplifier, A/D, monolithic microcomputer, keyboard, display, communication, Data storage device, power management, cold junction compensation and other parts. The photoelectric switch selector selects the corresponding channel signal, amplifies the signal through the signal amplifier, and then converts the analog signal into a data signal through the AD converter to the monolithic microcomputer for data processing. The cold junction compensation circuit performs room temperature measurement to obtain the cold junction temperature value. The measurement signal and the cold junction temperature value are processed by the monolithic microcomputer for data processing, and finally the correct Measuring temperature value is displayed on the display screen. Keyboard, Communication, Data storage allows data to be set and stored on the display screen for analysis, and can also be connected to a computer through the Communication interface for Data analysis directly from the computer. Power management includes battery and charging circuitry.
Applications
Lighting appliances, electric tools, household appliances, motors, electric heating appliances, pharmaceutical, petroleum, chemical, metallurgy, electric power and other industries and R & D institutions and other production lines, laboratories, Quality control departments
