Overview

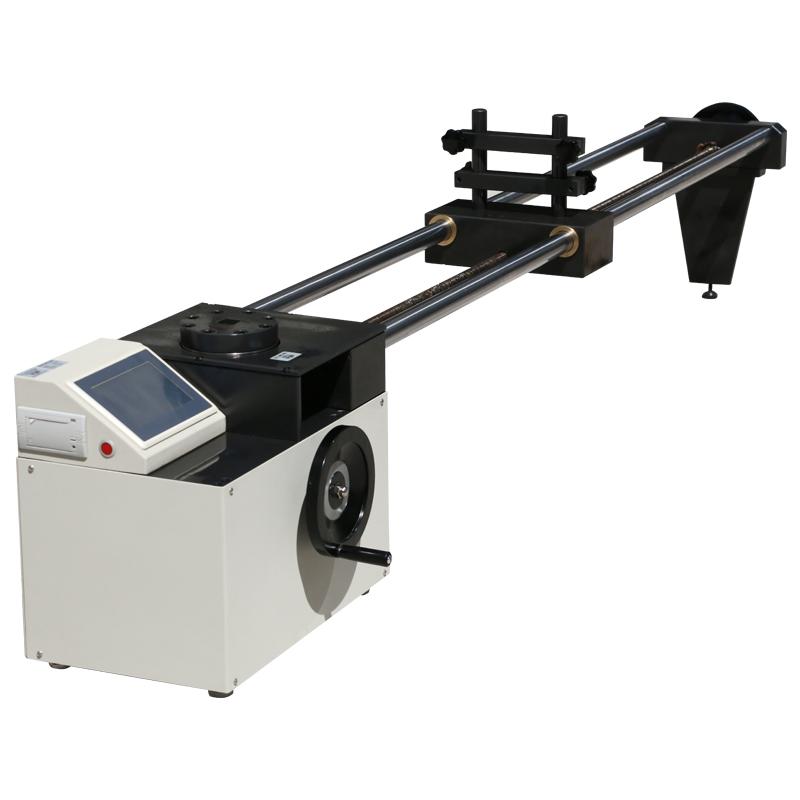

HNS-3000 torque spanne verification instrument is a professional instrument produced by HBO for all kinds of torque spanne verification (calibrate). The instrument conforms to JJG 797-2013 torque spanne verification instrument verification procedure and JJG707-2014 torque spanne verification procedure standard test method. It adopts electronic Sensor technology and has the advantages of high accuracy, easy operation, high Sensitivity and reliable data.
Features
1. High Accuracy, High resolution, High Stability
2. Large 7-inch color touch LCD screen, human-machine interaction interface is simple and easy to use
3. Three units N.m, kgf.cm, lbf.in automatic conversion
4. The device can do two-way (clockwise, counterclockwise) verification
5. Test direction display (counterclockwise +, clockwise -)
6. Provide JJG707-2014 torque spanne verification procedure standard test form, can directly print test data
7. You can customize 10 different test items and set different test points respectively. After saving for the first time, you can start the test directly after loading it in the future, no need to set it again
8. Can customize 8 check points, and can set the standard torque value of the corresponding point, the test interface can display the test point torque indication and its indication relative error, indication Repeatability, etc
9. Select the test location to set the gravitational acceleration value, and you can also customize the settings
10. Connect the host computer through the USB connection cable to read, store, analyze, print and other operations of real-time data
Principle
The HNS-3000 torque wrench verification instrument adopts electronic Sensor technology, verifies the torque wrench through hand-cranked loading, collects torque data in real time and analyzes and calculates.
Steps
1. Connect the power supply (AC 220V 50HZ)
2. Set up test items or load saved test items through Touchscreen
3. Set the verification point and standard torque value
4. Select the test direction (clockwise or counterclockwise)
5. Test by hand-cranked loading
6. View test data in real time (torque indication, relative error, Repeatability, etc.)
7. Connect the host computer through USB for data reading, storage, analysis, printing and other operations
Notice
• Environmental requirements No seismic source and electromagnetic interference around
• Power supply voltage 220V 50HZ
• Check whether the device connection is normal before use
• Note that the length of the wrench is applicable to 270-2500mm.
• Confirm that the gravity acceleration is set correctly before the test
