Overview

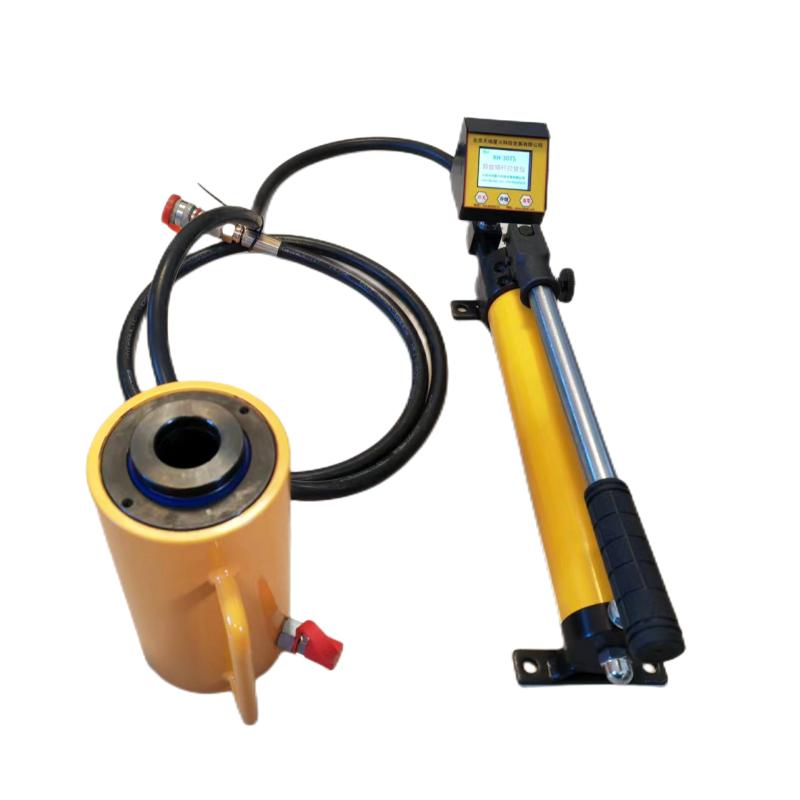

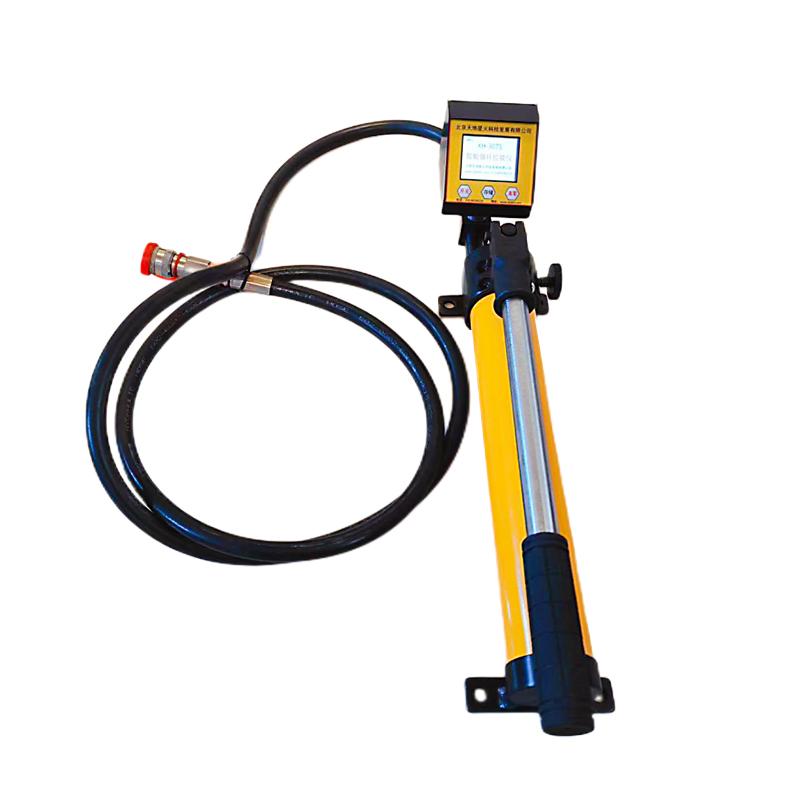

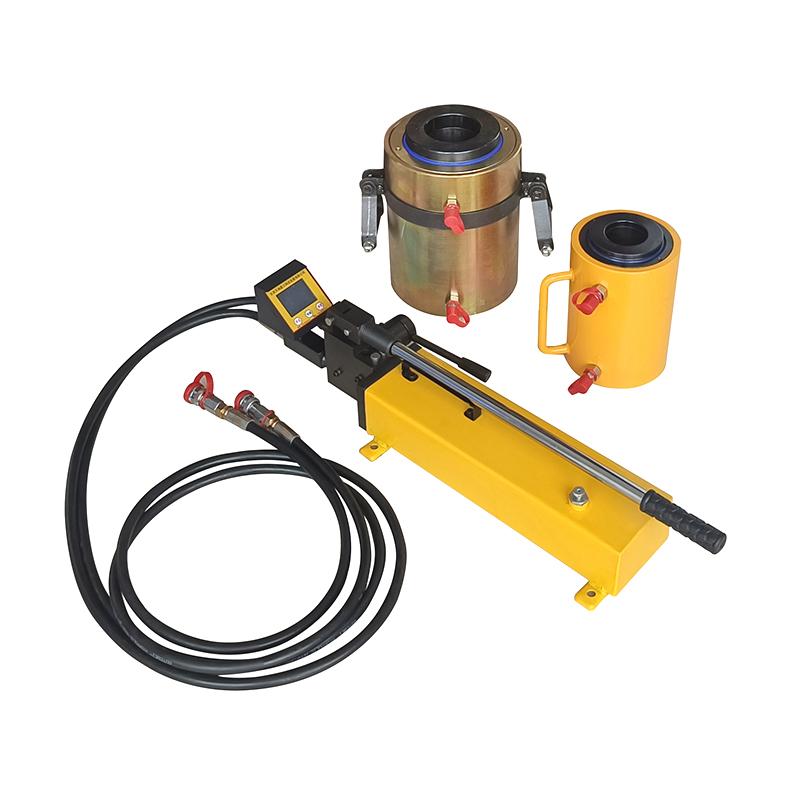

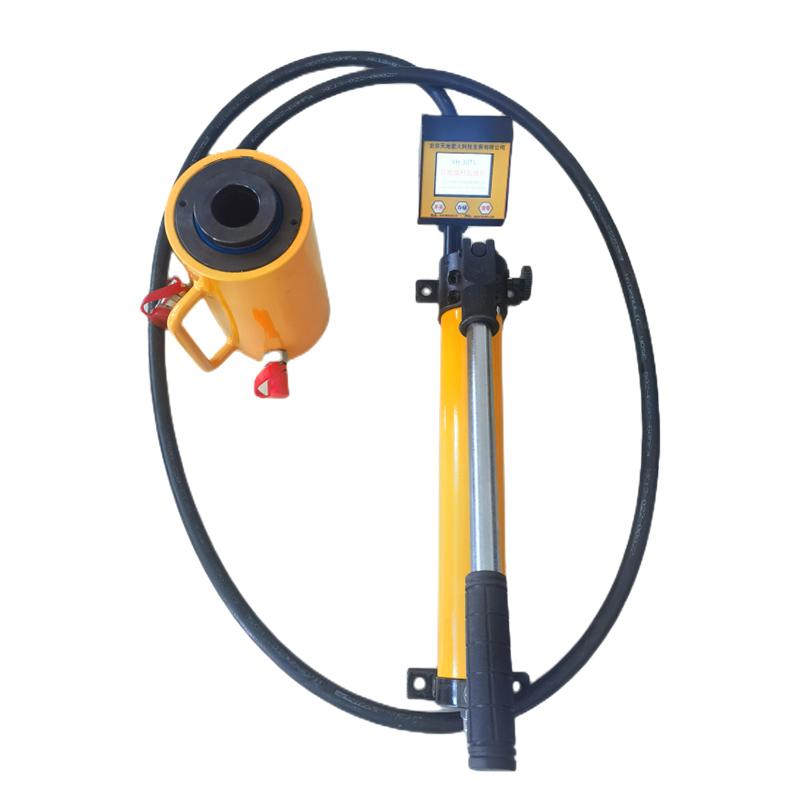

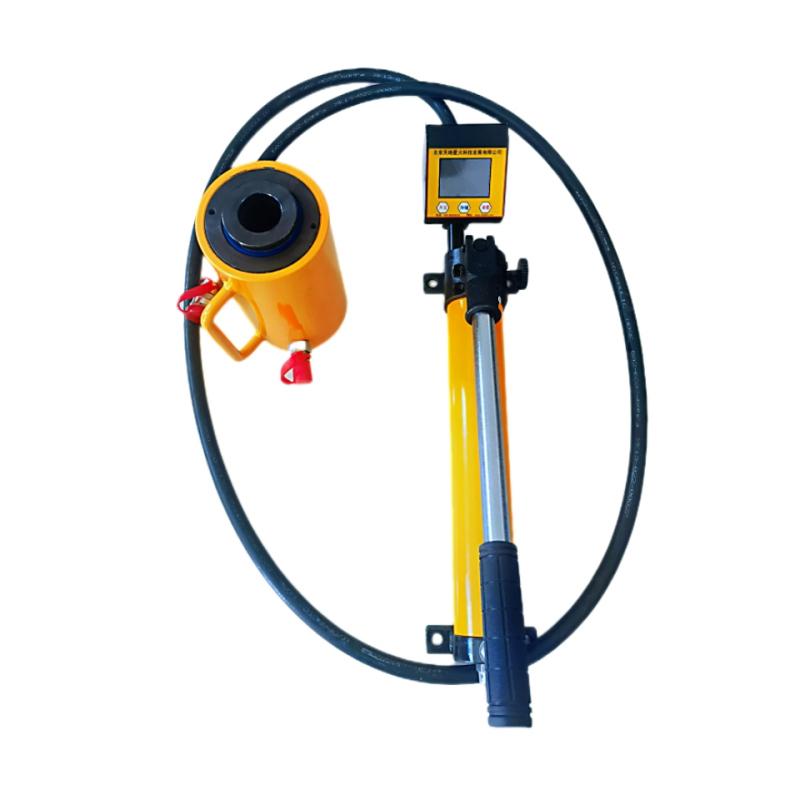

Tiandi Spark XH-60TS intelligent bolt drawing instrument is suitable for the detection of the anchoring force of anchors, steel bars (planting bars), anchors and other anchors. It is a recommended instrument for mass inspection of anchors and anchors in construction projects. The drawing instrument is composed of manual pump, hydraulic cylinder, digital pressure gauge and high voltage hose. It is made of aluminum alloy and stainless steel materials, with compact structure, accurate measurement and stable performance.
Features
1. 240 * 320 color touch screen
2. Automatic storage of the detection process
3. Memory card stores data, EXCEl format stores, and can be viewed by computer Connectivity
4. Drawing force value - Linear dispersion display
5. Large-capacity memory card, capable of storing 10,000 pieces of data
6. Data is automatically stored, 0.5S stores 1 piece of data
7. Adjustable screen luminance
8. Automatic shutdown can be set
9. Switch between Chinese and English display
10. The range can be switched, and a digital display meter can calibrate multiple hydraulic cylinders
11. Two display interfaces (data interface, Linear dispersion interface)

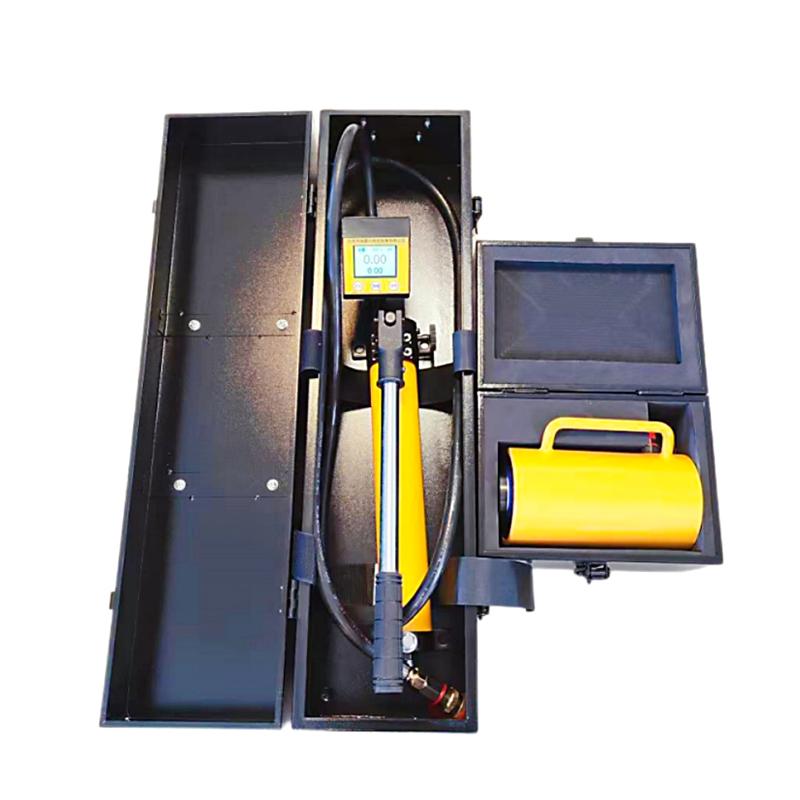

12, Engineering Plastic Encasement Box, Rainproof, Dustproof, Anti-impact
Principle
The Working Principle of the intelligent pullout instrument is: after the center hole of the jack passes through the rod to be tested, select a suitable anchor to clamp the outer leakage part of the rod to be tested; under the action of the hydraulic force of the manual pump, the oil pressure is transmitted to the cylinder block through YouTube, and the piston rod moves outward against the special anchor; the pressure acts directly on the anchor shell and is then transmitted to the clip. After the clip is stressed, the measured rod is clamped, and finally the rod is subjected to the outward pulling force. At this time, the pressure gauge on the pressure pump shows the corresponding force (kN) value, which reflects the size of the pulling force on the tested rod. After the drawing instrument completes the test, it needs to manually remove the anchorage by shaking and vibrating with less force, so that the hollow cylinder can be easily removed.
Applications
Anchor, steel bar (planting bar), anchor bolt and other anchorage parts, anchor construction engineering mass inspection, anchor construction engineering mass inspection
Standards
GB50367-2006 "concrete structure reinforcement design code", JGJ 145-2013 "concrete structure after anchorage technical specification"
Steps
1. The center hole of the jack passes through the rod under test
2. Select the appropriate anchor to clamp the outer leakage part of the tested rod
3. Operate the manual pump to pressurize, and the oil pressure is transmitted to the cylinder through YouTube
4. Observe the pressure gauge to display the pulling force value
5. After the test is completed, manually remove the anchors with less force shaking and vibration
6. Remove the hollow cylinder
Notice
• After the test is completed, the anchor needs to be removed manually by shaking and vibrating with less force
• Ensure that the anchors clamp the tested rod correctly
• Pay attention to the pressure gauge reading during operation to avoid overloading
• Regularly check the integrity of equipment components
