Overview

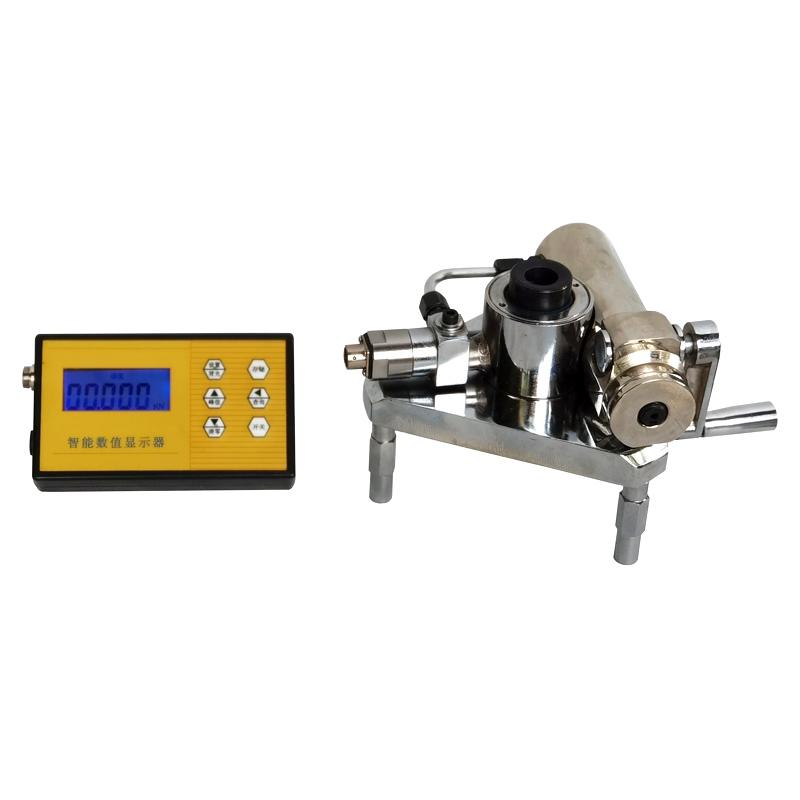

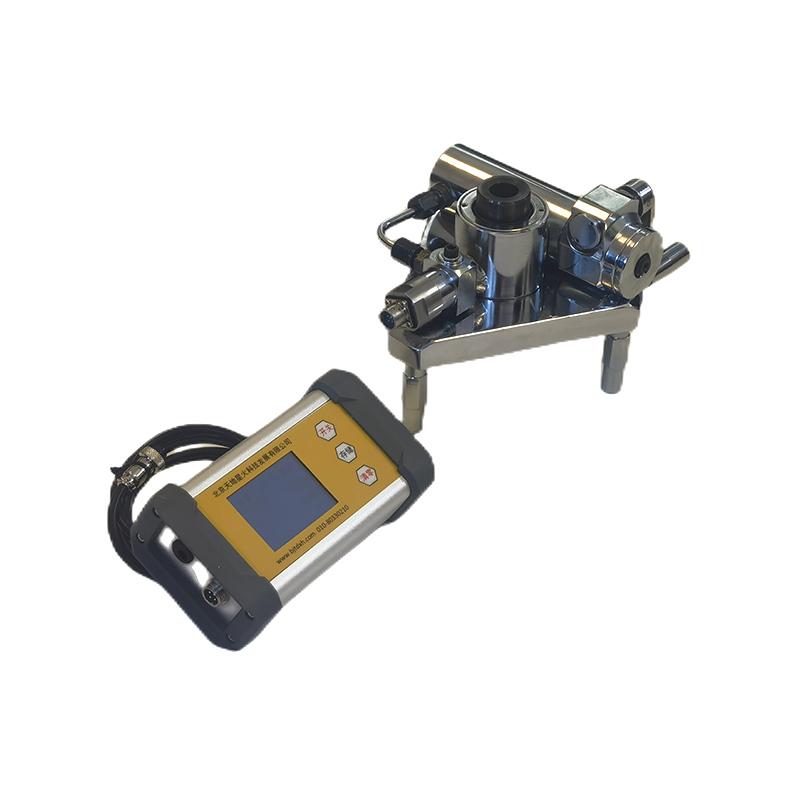

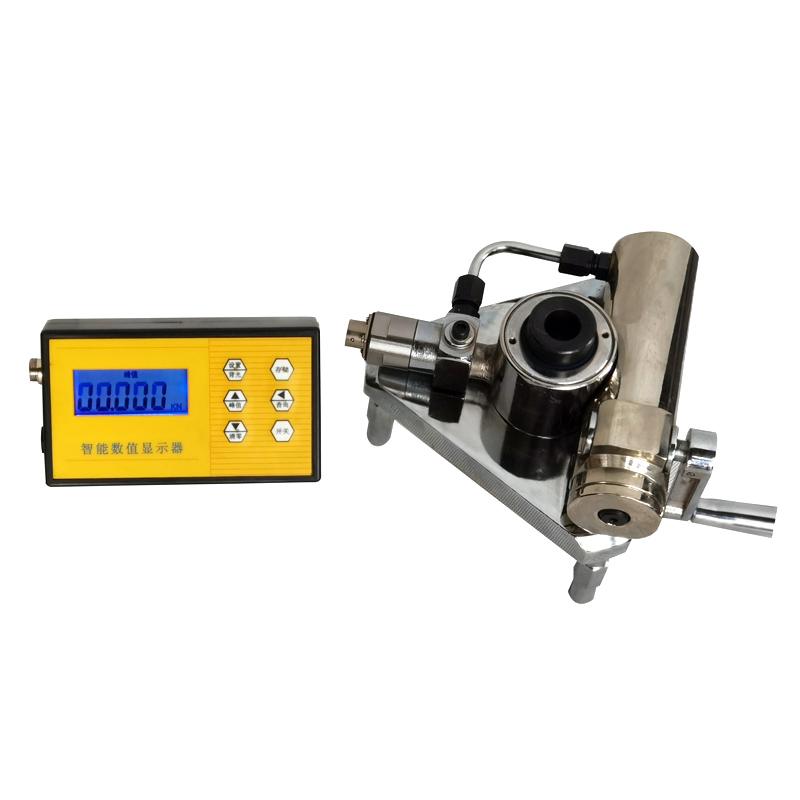

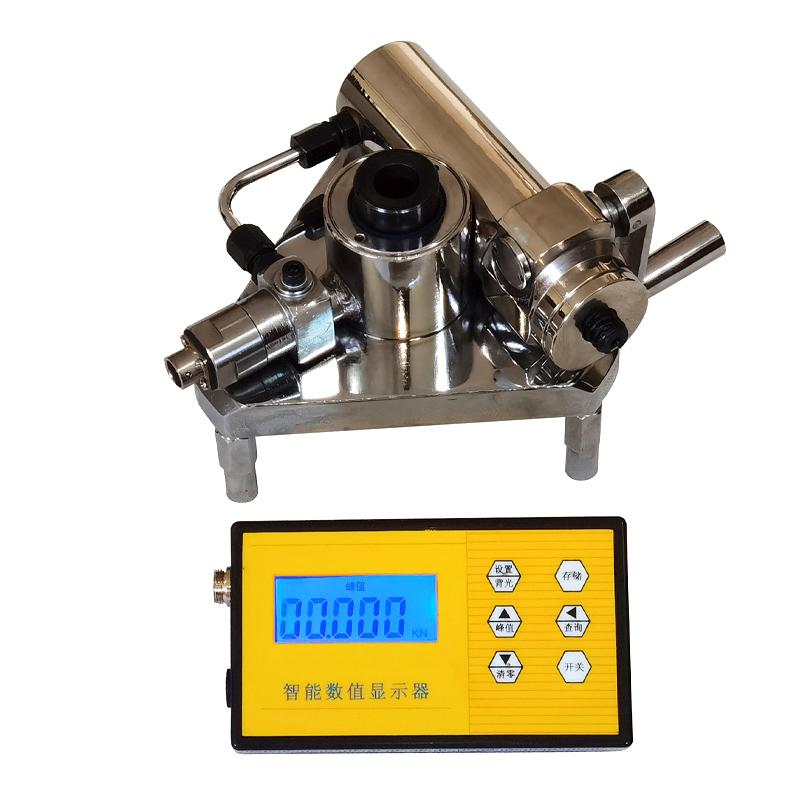

XH-40S intelligent multi-functional strength tester is a small hydraulic force measuring device of Tiandi Spark brand, which is used for inspection of the bond strength and concrete strength of building engineering veneer bricks, mosaics and walls or floors. The instrument is composed of a piercing jack, a hand pump, a triangular chassis and a force measuring device. It has the characteristics of one-machine dual-use, novel structure, small size, convenient operation and complete functions.
Features
1. One machine dual-use, can detect the bond strength of veneer brick and concrete strength
2. Novel structure, small size, easy operation and complete function
3. The oil pump is loaded manually, with small driving torque, comfortable and reasonable rocking direction, and continuous and uniform loading
4. Using single-chip microcomputer as the core intelligent data processing device, the battery in the machine can be recharged
5. With full digital display, automatic clearing, peak real-time force value display function
6. Equipped with 240 * 320 color touch display, supports switching between Chinese and English
7. Large data storage capacity, can store 10000 pieces of data, support TF memory card and computer Connectivity view
8. Linear dispersion display of force value and time, adjustable screen luminance, support automatic shutdown and automatic storage
Principle
When detecting the bonding strength of the veneer brick, the tensile force is generated on the bonding material of the veneer brick through the three-point reaction force support; when detecting the strength of the concrete, the principle of the post-assembly pull-out method is used to calculate the force required to pull out the anchors placed in the concrete.
Applications
Building engineering veneer brick bond strength testing, mosaic bond strength testing, concrete strength testing
Standards
CE CS69:2011 "Technical Specifications for Detecting concrete strength by post-loading and pulling-out method", JGJ110-2008 "Bonding strength inspection standard for construction engineering veneer bricks", JGJ126-2000 "Construction and acceptance regulations for exterior veneer bricks"
Steps
1. Accessories, jacks, standard blocks and pressure sensor interfaces
2. Use a hand pump to load manually
3. Viewing force value display and Linear dispersion through color touch display
4. The instrument automatically stores data, which can be viewed later through the memory card or computer Connectivity
Notice
• Make sure the components are firmly connected before use
• Maintain continuous and uniform operation during loading
• Regularly check the battery level to ensure normal charging
• When storing data, pay attention to the correct installation of the TF card
• Follow relevant standards and specifications for operation
