Overview

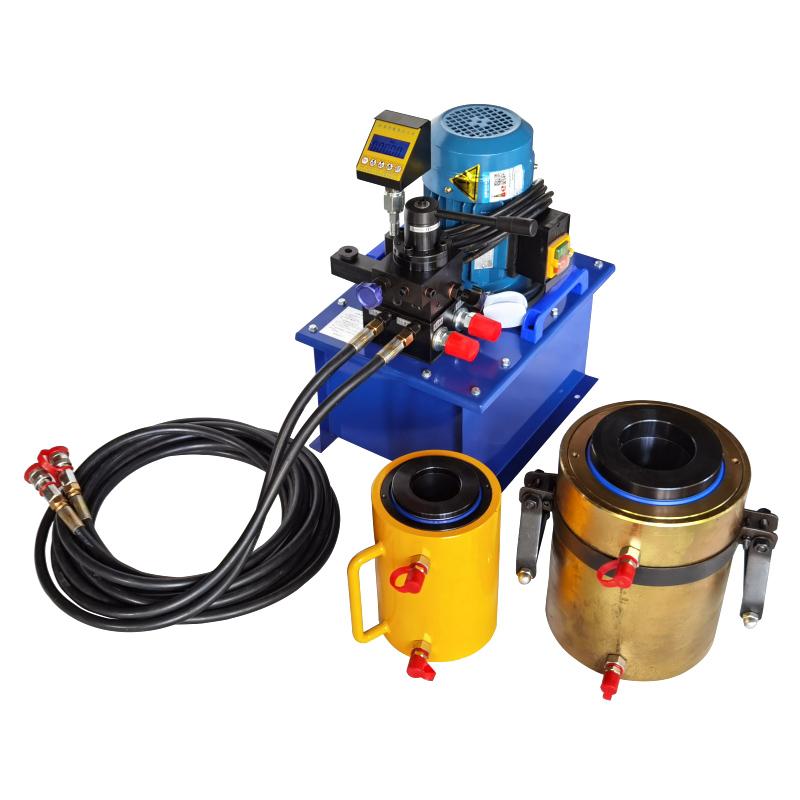

Tiandi Spark XH-100T (electric) graded pressure relief electric pulling instrument is an electric bolt tension meter, which is suitable for the detection of the anchoring force of anchors, anchor cables and other anchors. It is an essential instrument for mass inspection of anchor construction. The tension meter is composed of Electric Pump, hydraulic cylinder, digital pressure gauge and high voltage hose. It has the characteristics of novel structure, reliable performance, convenient operation and small size.
Features
1. Electric Pump with double oil plunger design, high efficiency, fast loading speed
2. The high voltage can be adjusted according to the required pressure
3. The pump body is equipped with three-position four-way manual reversing valve, which adopts end-face sealing structure, good sealing performance, convenient operation and long life
4. The hydraulic cylinder is in the form of hollow double oil circuit, which is connected to the high voltage hose through quick connector
5. The digital pressure gauge directly reads the KN value without conversion
6. The pressure gauge has a peak hold function and can store 50 data
7. With the function of grading unloading, it can control the hydraulic cylinder grading unloading
Principle
The electric puller generates hydraulic pressure through the Electric Pump, which is transmitted to the hydraulic cylinder through the high voltage hose, and the hydraulic cylinder applies tension to the anchor rod or anchor cable. The reversing valve controls the loading and unloading of the oil pump, and the grading unloading knob controls the grading unloading of the hydraulic cylinder. The digital pressure gauge directly displays the tension value and has a peak holding function.
Applications
Anchorage force detection of anchor rod, anchor cable, etc
Standards
Bolt construction mass inspection standard
Steps
1. Tighten the grading unloading knob clockwise before use
2. Control the oil pump loading through the reversing valve
3. The digital pressure gauge directly reads the KN value
4. Slow counterclockwise swirl/spin grading unloading knob can control hydraulic cylinder grading unloading
Notice
• Please tighten the grading unloading knob clockwise before use
• Pay attention to oil circuit reversing when operating the reversing valve
• Regularly check the sealing performance of the equipment
• Pay attention to the battery power of the pressure gauge to ensure normal display
