Overview

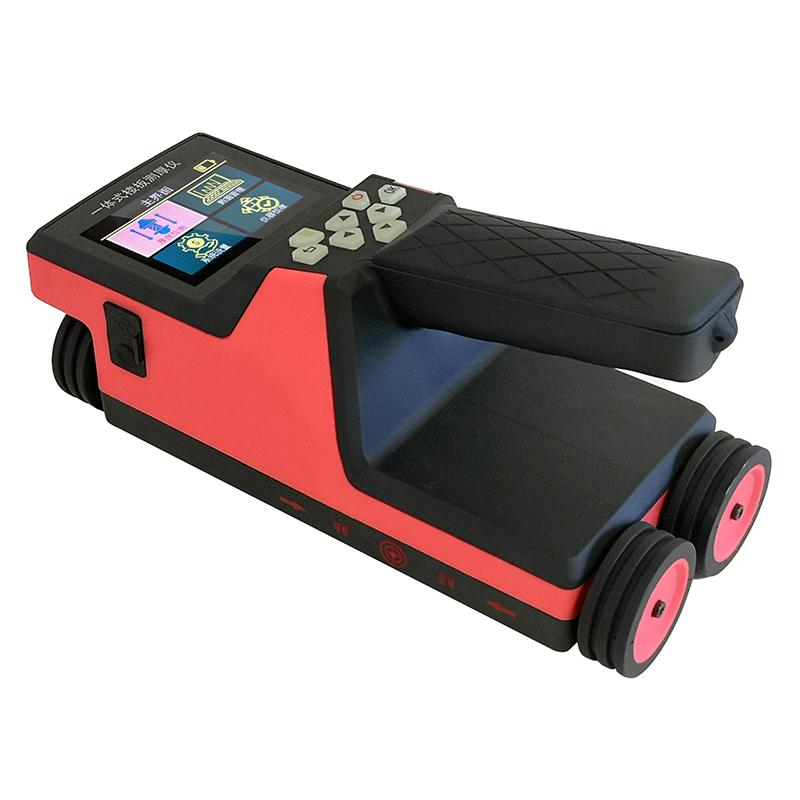

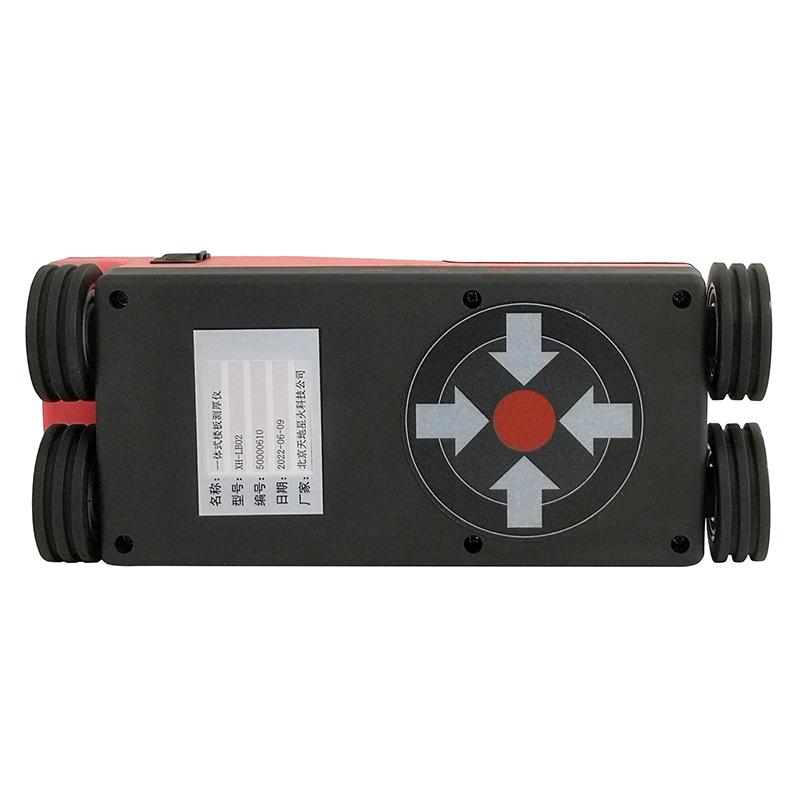

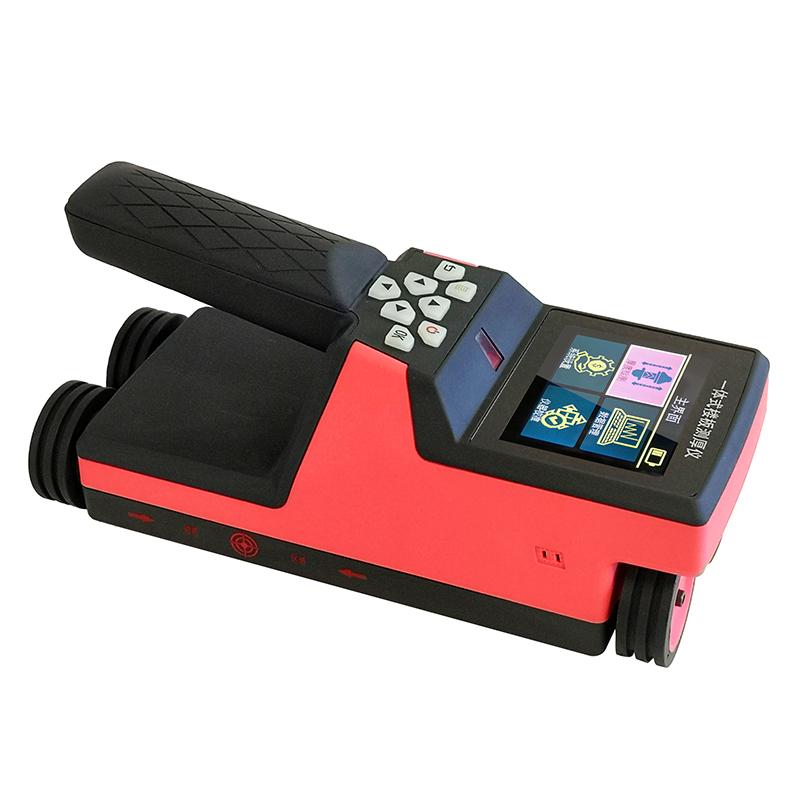

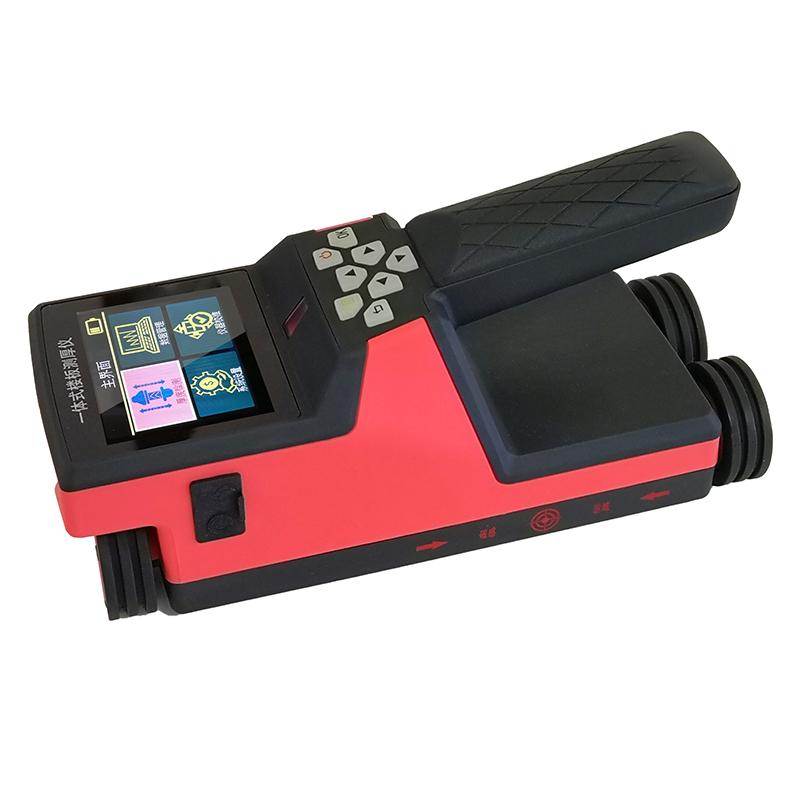

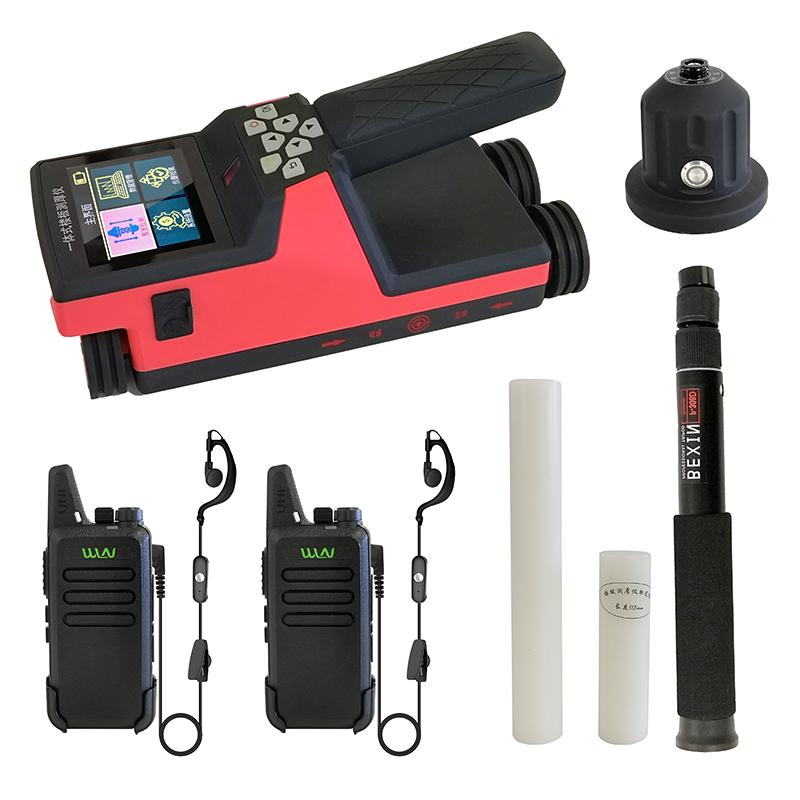

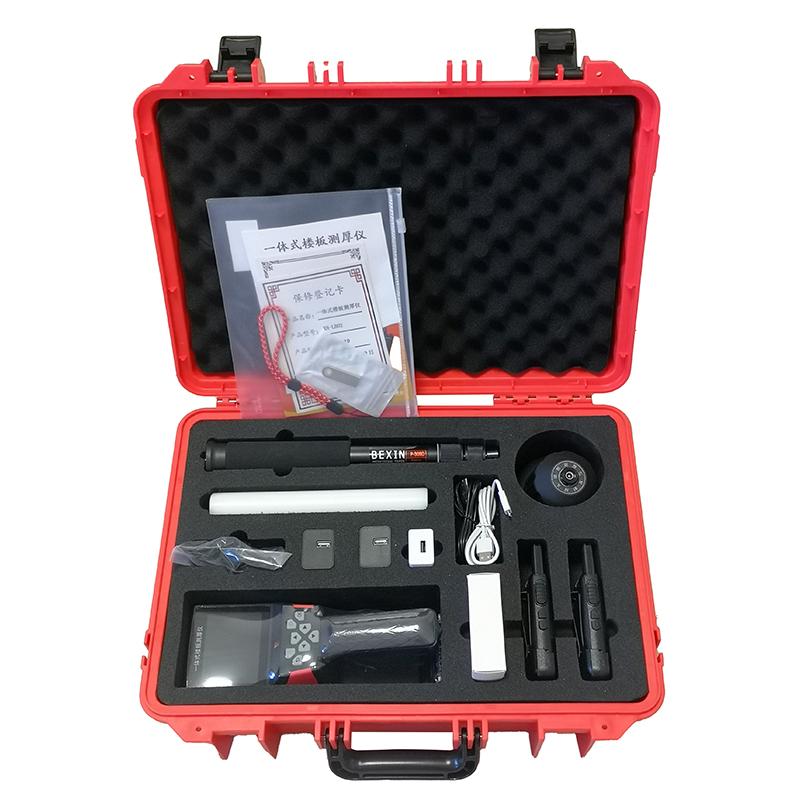

Tiandi Spark XH-CH01 Integrated Floor Thickness Gauge is a Portable nondestructive testing instrument, suitable for the measurement of the thickness of concrete or other ferromagnetic media. When used, the transmitting Probe and the receiving Probe are placed on two opposite test surfaces of the floor, respectively, to transmit and receive electromagnetic signals. The instrument measures the floor thickness according to the received signal strength.
Features
1. Adopt integrated design, 3.5-inch large-screen color LCD;
2. Real-time positioning function, arrow direction indicates the position of the launching Probe, and the testing process is simple.
3. Wide measurement thickness range and high accuracy;
4. The build has been stored and can continue to be tested.
5. TF card storage makes storage and transmission more convenient and fast.
6. It can correct the deviation caused by the surrounding environment of the instrument;
7. Special computer software for analysis can quickly generate test reports.
8. The integrated design of the main engine makes it easy to operate and carry.
9, real-time display measurement value, automatically lock the true thickness;
10, support instrument calibration, effectively solve the environmental factors affecting thickness deviation;
11. Measurement point data, average value and construction parameters are displayed on the same screen;
12. Three layers of data management, including engineering, components, and data, provide a clear structure and easy operation.
Principle
In use, the transmitting Probe and the receiving Probe are respectively placed on two opposite test surfaces of the floor, respectively, to transmit and receive electromagnetic signals, and the instrument measures the floor thickness value according to the received signal strength.
Applications
Floor thickness detection
Standards
GB50204-2015 "concrete structure engineering construction mass acceptance code", JJF 1224-2009 "steel protective layer, floor thickness measurement instrument calibrating code"
