Overview

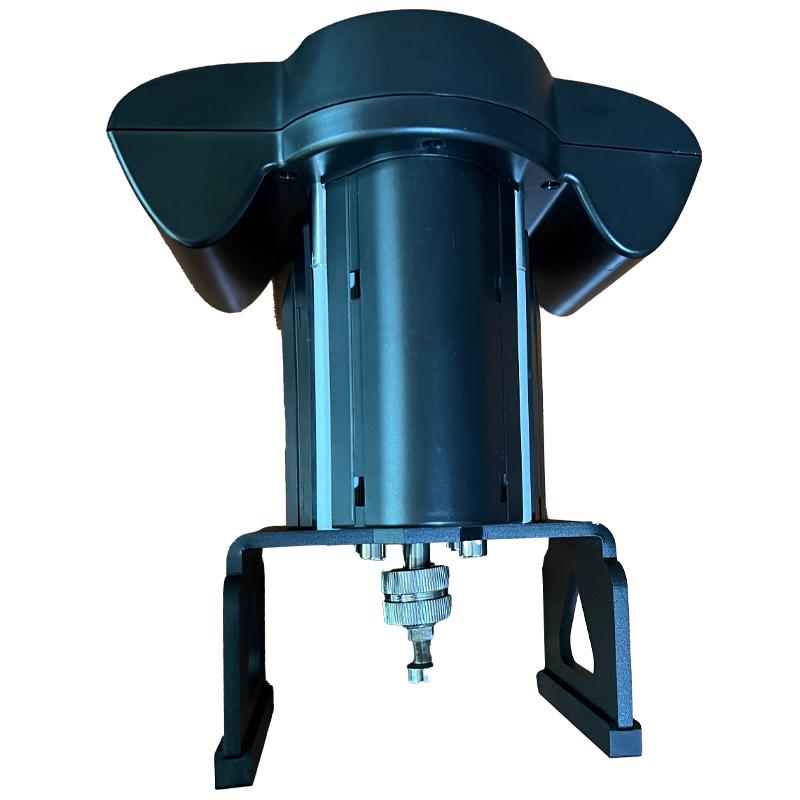

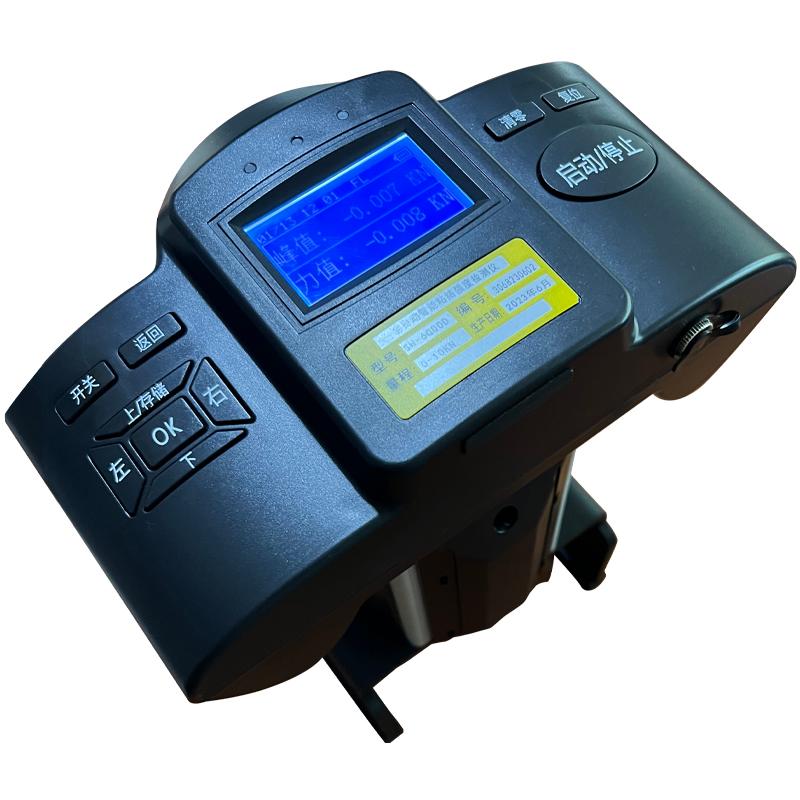

XH-D10 automatic intelligent Bond strength Tester is an electric Bond strength Tester developed and produced by Tiandi Spark brand. The instrument is suitable for construction engineering fixed thermal insulation material rivet pull-out force, wall thermal insulation material bond strength, exterior facing brick bond strength, carbon fiber bond strength, mortar bond strength, pull-off method to detect concrete strength and various plates, concrete surface coatings and Miscellaneous material bond strength detection.
Features
1. Integrated design, simple and convenient operation
2. High Accuracy "S" Sensor, accuracy up to 0.5%
3. The fuselage is made of aluminum alloy and engineering plastics, with small size and light weight

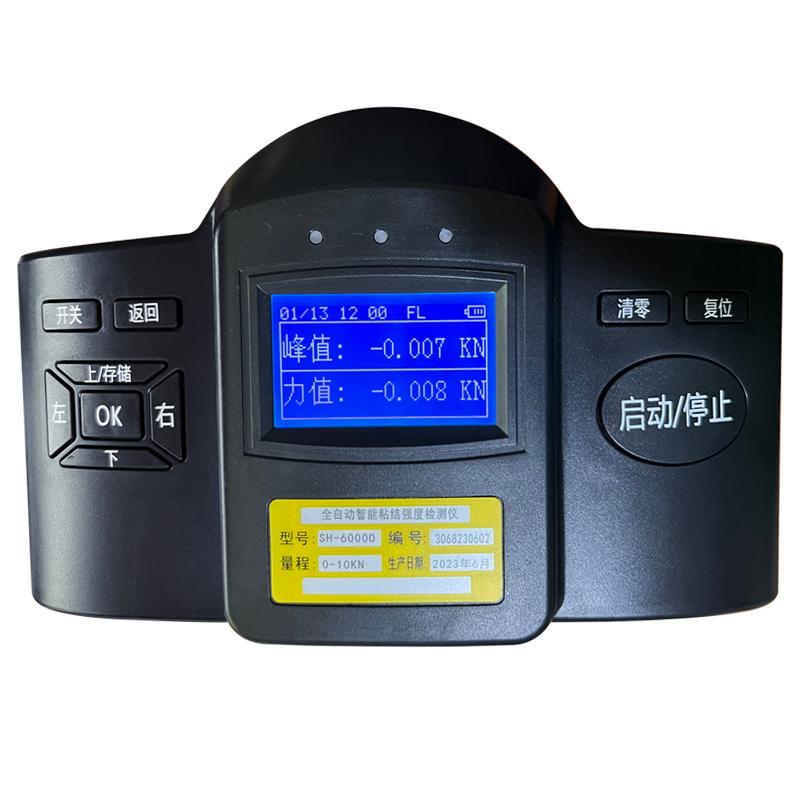

4, the instrument adopts point array LCD display
5. Pull off the automatic shutdown function
6. Three operation modes are optional, one-click detection is completed, no human intervention is required
7. A variety of test block specifications are available, and the force value (KN) and strength value (Mpa) are displayed on the same screen.
8. You can directly enter the test block area, and display the force value (KN) and strength value (Mpa) on the same screen.
9. The target value, load holding time and other related parameters can be freely set, and the detection is completed to automatically reset
10. Peak and real-time values are displayed on the same screen
11. Data can be recorded manually or automatically, and automatic recording conditions are optional
12. Low-power design, automatic shutdown without operation
Principle
Instrument through the High Accuracy "S" Sensor measurement of pull-out force, using electric drive mode to achieve tensile test, with pull-off automatic stop function, can automatically record test data and display the force value and strength value.
Standards
JGJ144-2019 "exterior insulation engineering technical standard", JG158-2013 "rubber powder polystyrene particles exterior insulation system", JG149-2006 "expanded polystyrene board thin plaster exterior insulation system", JGJ110-2017 "construction engineering veneer brick strong bond inspection standard", JGJ126-2015 "exterior veneer brick engineering construction and acceptance regulations"
