Overview

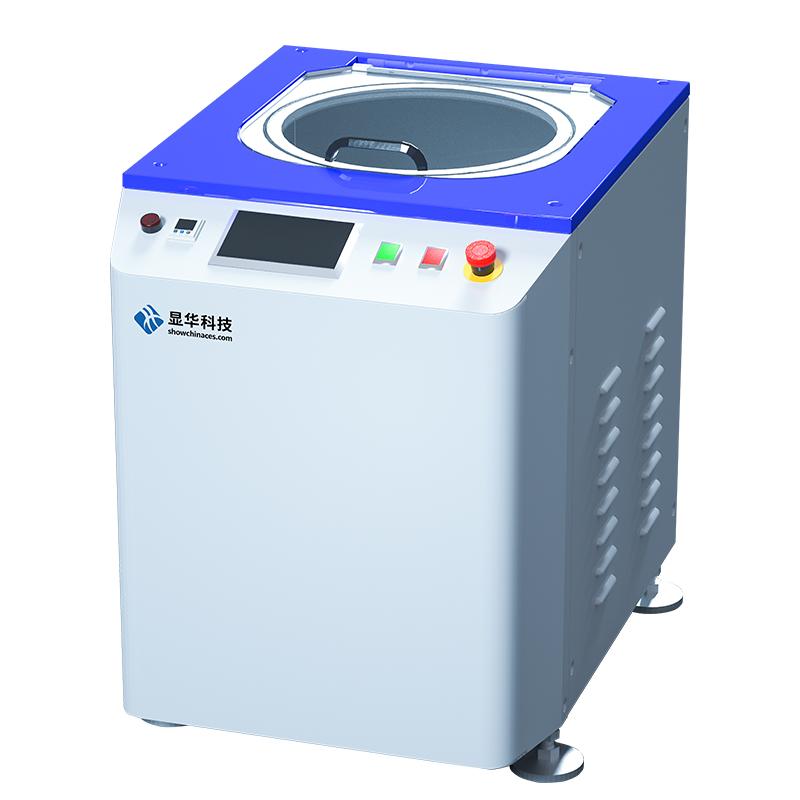

Vacuum Defoaming Stirrer SC-S700 is a self-rotating revolution defoaming mixing equipment produced by XianHua, which can uniformly disperse and defoam materials at the same time. It generates strong Acceleration to promote defoaming by causing the container to rotate at high speed and rotate in the orbit, and at the same time, the rotation causes convection of the material to realize dispersion and defoaming in a short time. It is suitable for epoxy glue, silicone gel, battery material, grease, paste, carbon nanotube, carbon black, LED encapsulation glue and ointment adjustment in pharmacies. It has the advantages of short processing time, simple operation, high Repeatability, and no stirring blade structure.
Features
1. The rotation and revolution are carried out at the same time, and the material can be defoamed and stirred evenly within a few seconds to a few minutes.
2. Rotation speed is mechanically constant, and the Rotation speed ratio can be customized for special materials that are not easy to stir.
3. Equipped with different fixtures and cups, the mixing capacity can reach within 700 milliliters, making it easy to handle the test to mass production requirements.
4. 5 sets of data can be stored (can be specially customized), and each set can be set at different times in 5 segments to meet the needs of mixing and dispersing most materials.
5. Important core components are imported and industry brands to ensure the long-term use Stability of the machine under high load.
6. Upon customer request, some functions of the machine can be customized.
Principle
Vacuum Defoaming Stirrer promotes defoaming by generating a high-speed revolution of the container with the material and rotating in the revolution orbit, generating a strong revolution of Acceleration, and at the same time, the rotation causes convection of the material in the container, so as to realize dispersion and defoaming in a short time. The public rotation non-contact Mix & disperse method is used, combined with the vacuum environment (the vacuum range atmospheric pressure is about -98Kpa or more), to effectively remove bubbles.
Applications
Epoxy glue, silica gel, battery material, grease, paste, carbon nanotube, carbon black, LED packaging glue, dispensing pharmacy ointment dispensing, emulsification, nano crushing, vacuum defoaming
