Overview

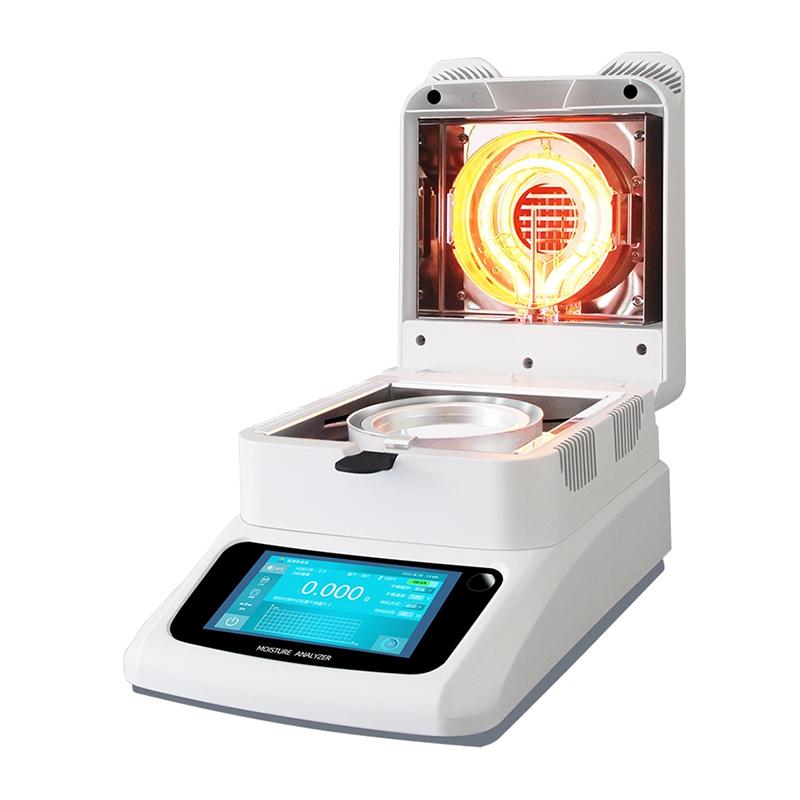

XIONGFA XFSFY-1205MB fast moisture meter is an instrument that uses thermogravimetry to determine the moisture and Solid content of samples. It consists of a weighing unit and a heating unit. It is widely used in plastic particles, food, sludge, tea, corn feed, battery powder, metal powder, dry goods and other industries to meet quality control and production needs.
Features
1. 5-Inch programmable color Touchscreen, directly displays moisture%, Solid content%, test temperature and other information, built-in guided Chinese operation and voice prompts, intuitive and adjustable operation.
2. 500W high-efficiency halogen ring lamp, heating fast, waterproof and explosion-proof, the heating chamber adopts pure stainless steel chamber cover, and the sample is heated evenly.
3. Using PT100 temperature sensor, accurate temperature control, waterproof, anti-corrosion and high temperature resistance.
4. Built-in RS232 interface, can be connected to thermal printer, label printer or computer, or can choose USB interface.
5, instead of the national standard oven method, widely used, suitable for various industries Moisture content and Solid content testing.
6. No need to install and debug, ready to use out of the box; Linear dispersion diagram display in real time during the test process, intuitive observation of moisture changes; rich data display, including Linear dispersion diagram, time, real-time temperature, moisture, Solid content; automatic measurement, alarm reminder after measurement.
Principle
Moisture content and Solid content are measured by a fast moisture meter using thermogravimetry. The weighing unit is combined with a heating unit to measure the weight loss of the sample during the heating process. The instrument ensures accurate results through precise weighing and temperature control.
Applications
Plastic particles, food, sludge, tea, corn feed, battery powder, metal powder, dry goods
Steps
1. After unpacking, there is no need to install and debug, and the instrument is used directly.
2. Follow the guided Chinese operation and voice prompts on the Touchscreen to gradually complete the workflow.
3. Set test parameters, such as heating temperature and shutdown mode.
4. Start the test, the instrument automatically measures, and displays the Linear dispersion diagram and data in real time.
5, the measurement is completed, the instrument alarm reminder, check the results.
Notice
• Follow graphical instructions when operating to ensure safety.
• The heating chamber is made of stainless steel, pay attention to prevent high temperature burns.
• There is no need to take care of the test process, but it needs to be processed in time when the measurement is completed.
When connecting external devices such as printers, ensure that the interfaces are compatible.
• The instrument has waterproof and anti-corrosion characteristics, but it still needs to be avoided in extreme environments.
