Overview

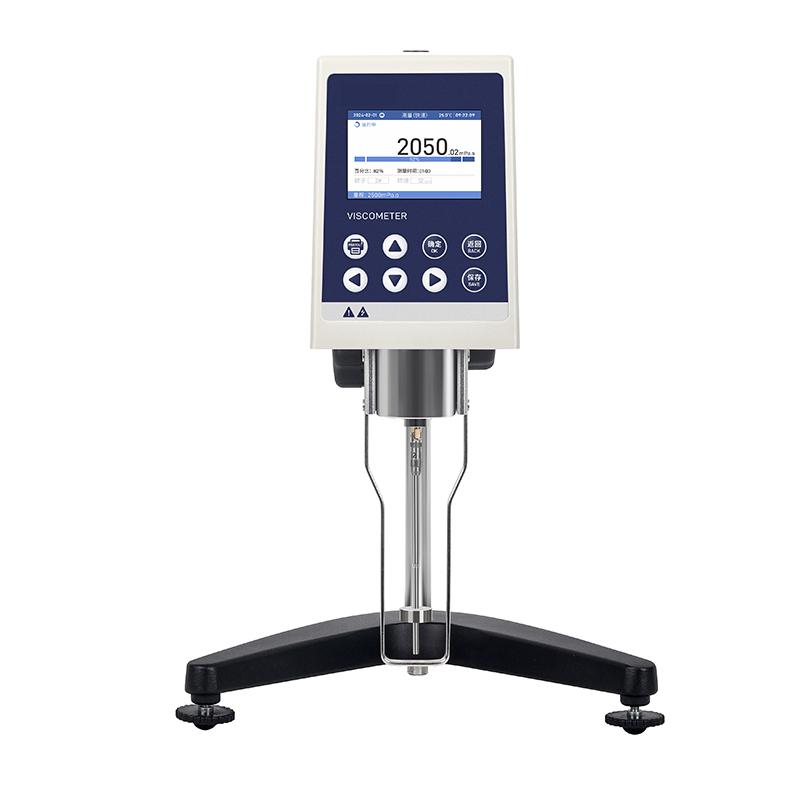

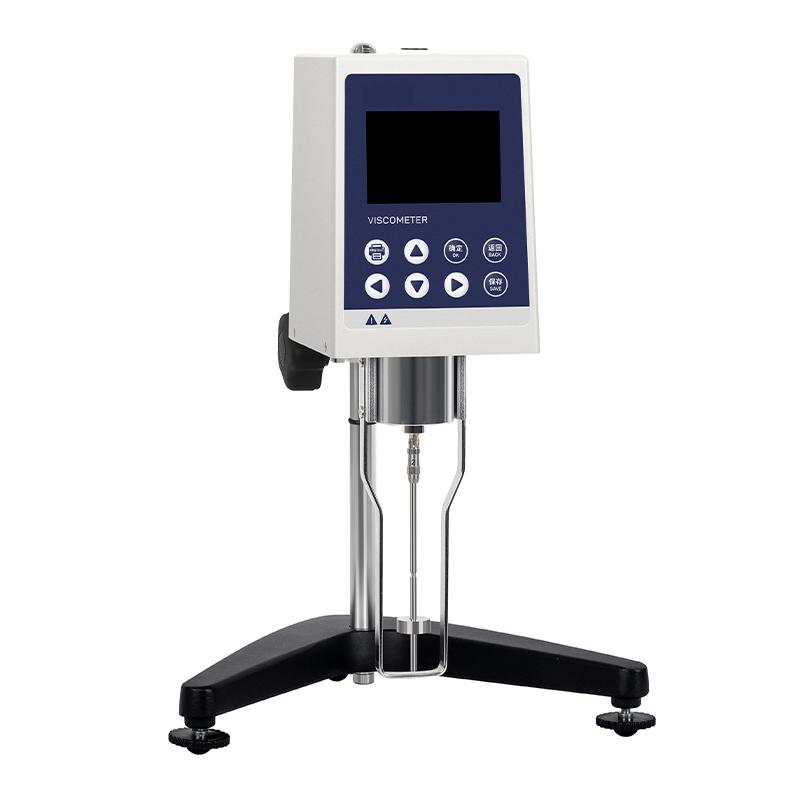

The NDJ-5S rotational viscometer is an upgraded digital rotational viscometer launched by HuiNuo brand. It adopts reliable mechanical design technology, manufacturing process and microcomputer control technology, and has stable data collection. The instrument has the characteristics of high measurement Sensitivity and reliable test results. It is suitable for the measurement of absolute viscosity of Newtonian liquids and apparent relative viscosity of non-Newtonian liquids.
Features

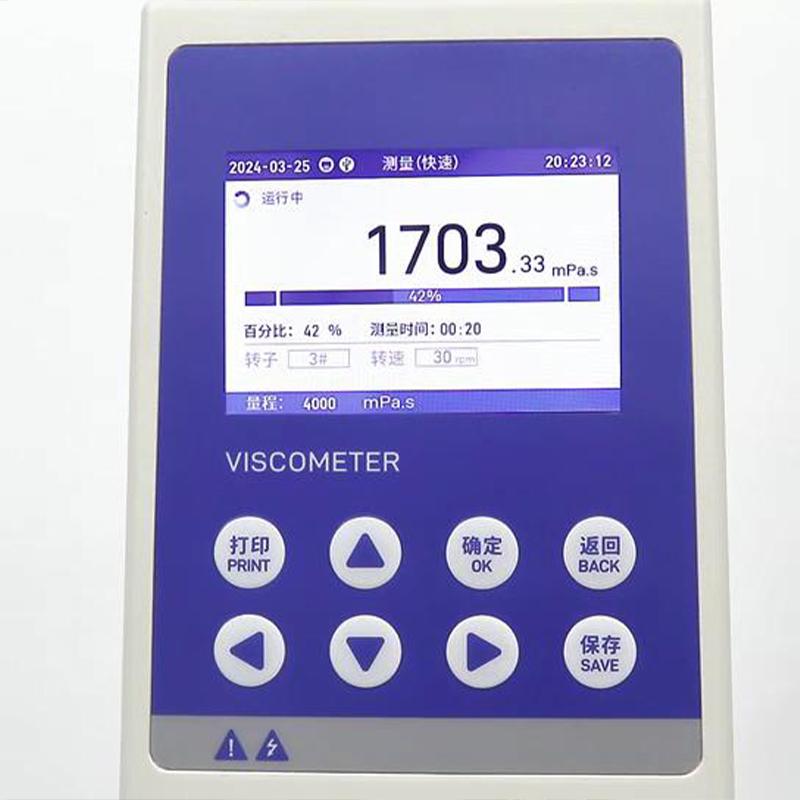

1. Adopt high-resolution 3.5-inch IPS display, visually display viscosity, Rotation speed, temperature, percent torque, rotor number and the maximum viscosity that can be measured at the current Rotation speed of the selected rotor number
2. Sensitivity of measurement, reliable test results
3. Stable data collection
4. Support conventional measurement, Linear dispersion measurement, recording, viscosity conversion, printing and other system functions
5. Provide USB, RS232 Interface
6. Support Chinese and English language switching
7. Travel up to 250mm
Principle
The instrument measures viscosity through the resistance of the rotor when swirling/spinning in the liquid, uses microcomputer control technology to ensure data collection Stability, and visually displays various measurement parameters through a high-resolution display screen.
Applications
Oil, paints, plastic, food, Coatings, glue, Adhesive, Resin, chemical raw materials and other fluid viscosity measurement
Steps
1. Select the appropriate rotor and install it
2. Rotation speed required

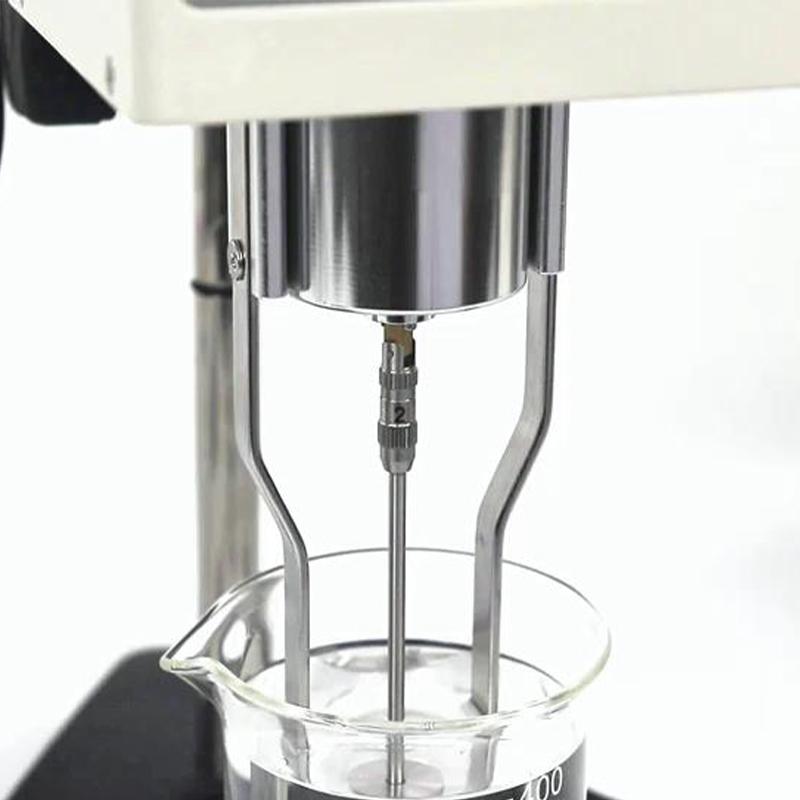

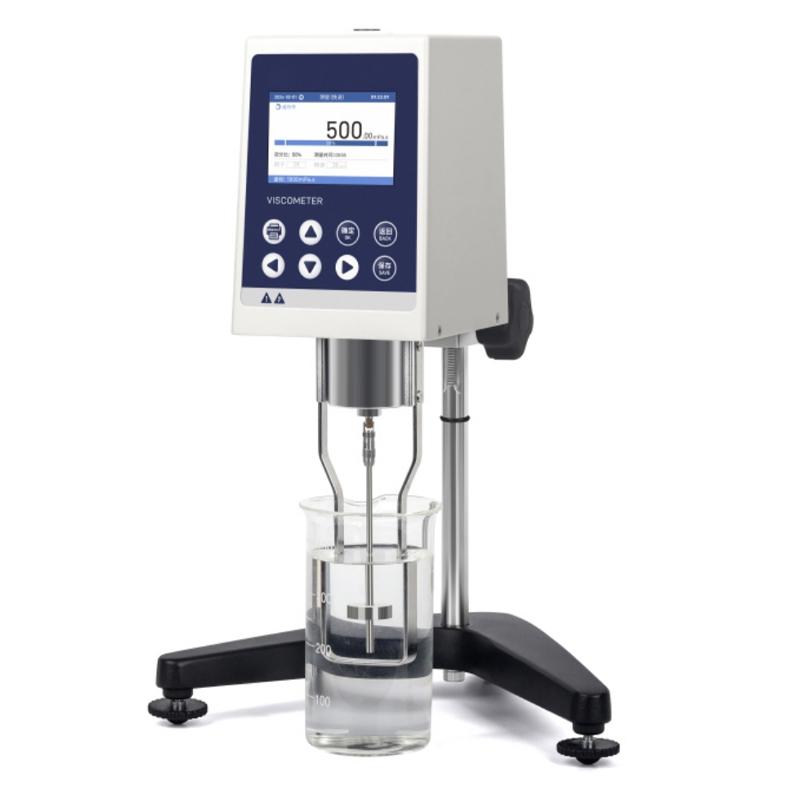

3. Immerse the rotor in the liquid to be tested
4. Start the measurement program
5. Read the viscosity data on the display
6. Save or print measurement results as needed
Notice
• The instrument should be used in an environment Operating temperature of 0 ℃~ 40 ℃
• environment relative humidity should be maintained in 20% to 80% non-condensing air environment
• Power supply voltage within 100~ 240v, 50~ 60HZ range
• Select the appropriate rotor specification before measurement
• Net weight of the instrument is about 5kg, please pay attention to safety when handling
• Regularly check instrument reproducibility and Measurement accuracy
