Overview

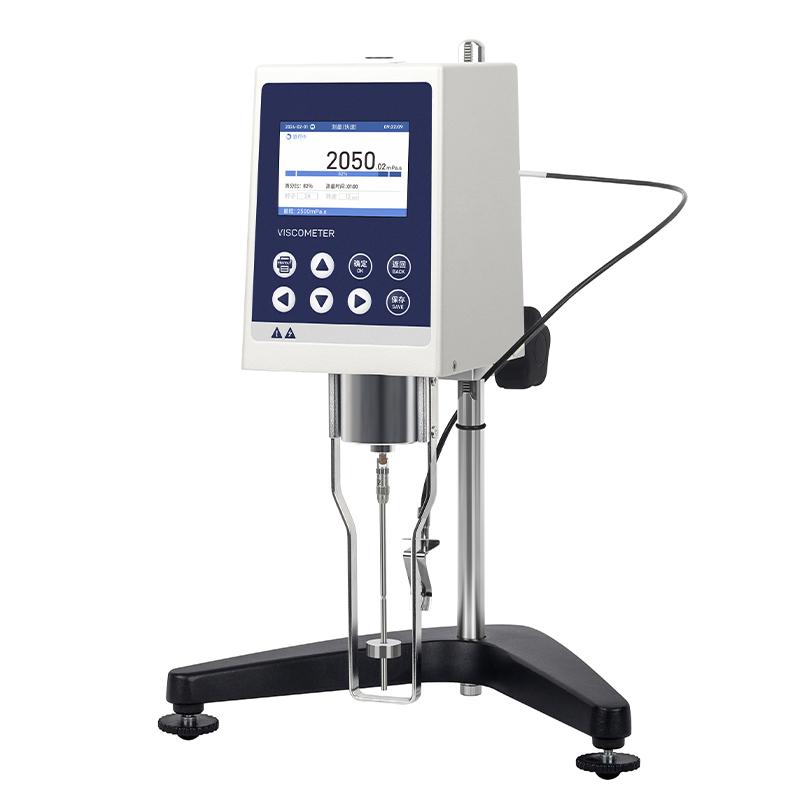

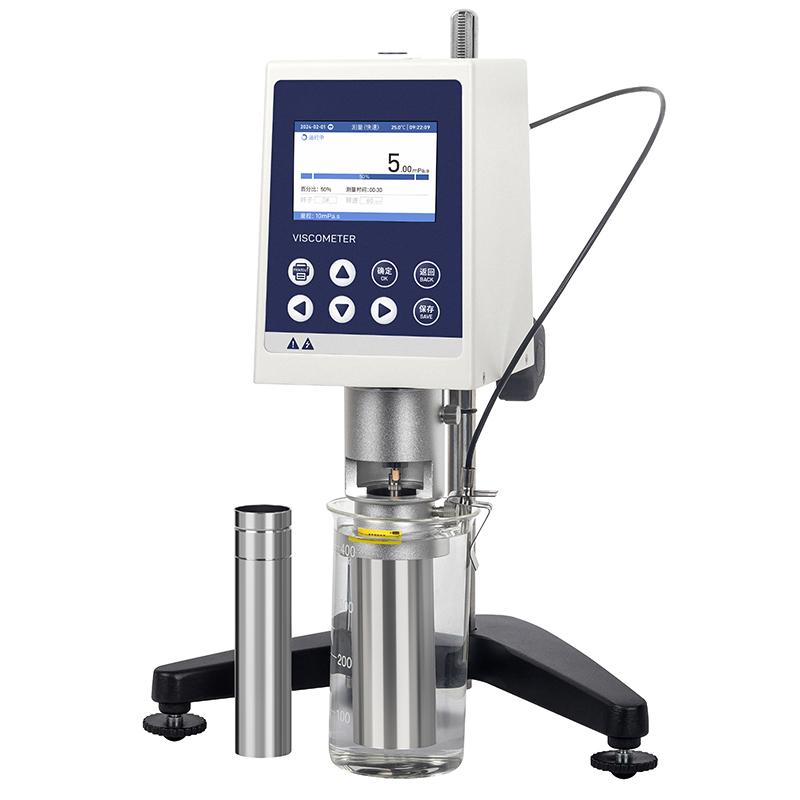

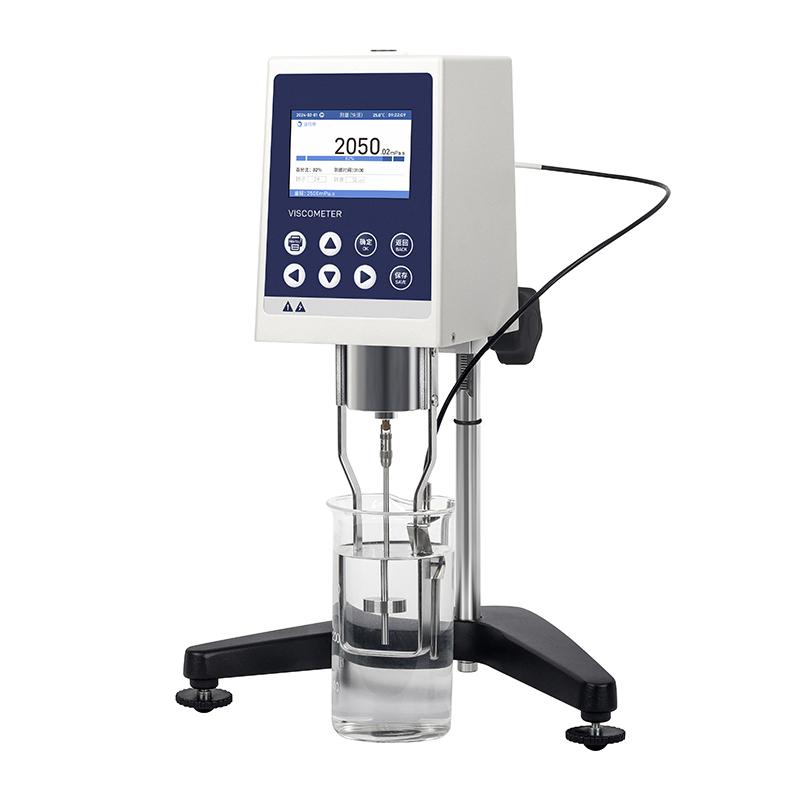

The NDJ-5ST rotational viscometer is a digital rotational viscometer product of HuiNuo brand. It adopts reliable mechanical design technology, manufacturing process and microcomputer control technology, and has stable data collection. The display adopts a high-resolution 3.5-inch IPS display screen, which displays data intuitively. The color screen can directly display the viscosity, Rotation speed, temperature, percentage torque, rotor number and the maximum viscosity measurable at the current Rotation speed of the selected rotor number.
Features
1. Sensitivity of measurement, reliable test results
2. Adopt reliable mechanical design technology and microcomputer control technology
3. High-resolution 3.5-inch IPS display, intuitive data display

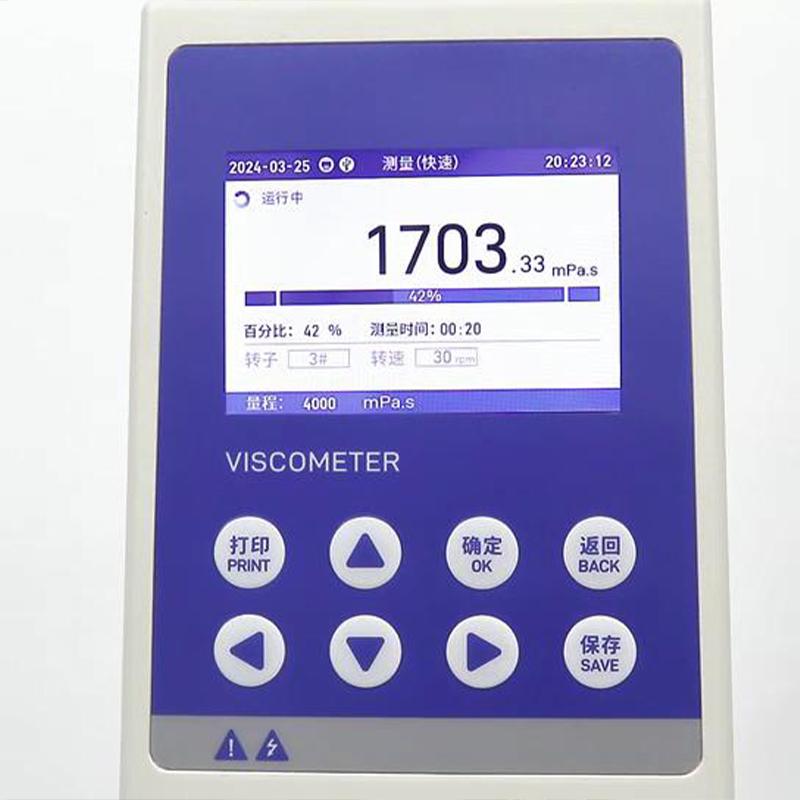

4. Color screen can display viscosity, Rotation speed, temperature, percent torque, rotor number and maximum viscosity
5. Measurement mode multiple options, such as timing measurement, automatic scanning
6. All models come standard with temperature probe
7. Measurement accuracy +/- 1% F.S, reproducibility +/- 0.5% F.S
8. Display resolution 0.01mPa.s
9. With conventional measurement, Linear dispersion measurement, recording, viscosity conversion, printing and other functions
Principle
The NDJ-5ST rotational viscometer is a precision instrument used to measure the absolute viscosity of Newtonian liquids and the apparent relative viscosity of non-Newtonian liquids. The instrument calculates the viscosity value by swirl/spin of the rotor in the liquid and measurement of swirl/spin resistance.
Applications
Oil, paints, plastic, food, Coatings, glue, Adhesive, Resin, chemical raw materials and other fluid viscosity measurement
Steps
1. Choose the right rotor and Rotation speed

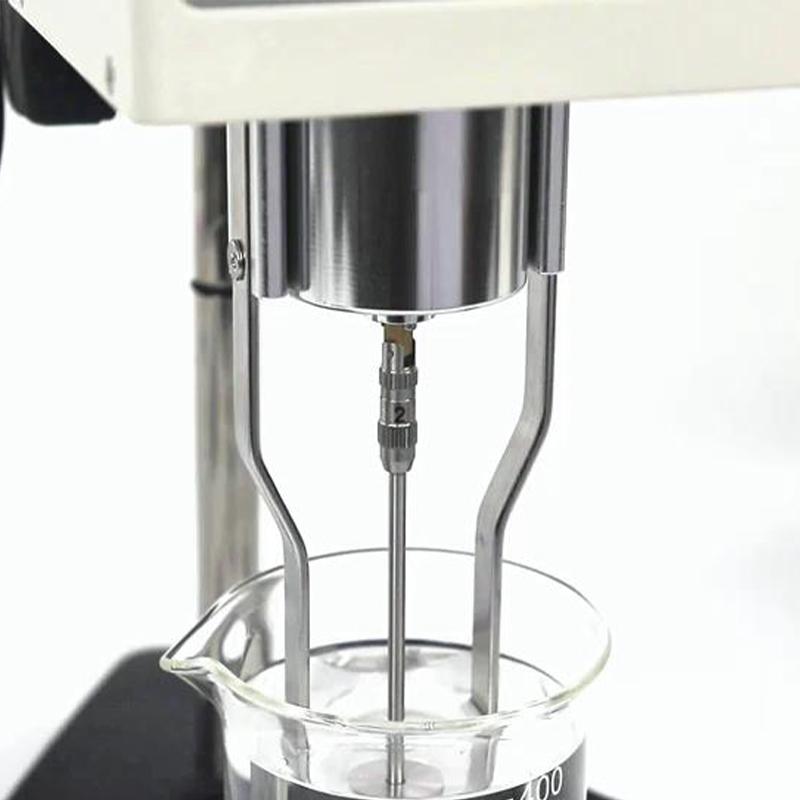

2. Immerse the rotor in the liquid to be tested
3. Select Measurement mode (Fast, Timed or Auto Scan)
4. Start measurement and read data
5. Data can be exported via USB or RS232 interface
Notice
• Environmental requirements: 0 ℃~ 40 ℃, Humidity 20%~ 80% No condensation in the air environment
• Power supply voltage: 100~ 240v, 50~ 60HZ
• Lift Travel: 250mm

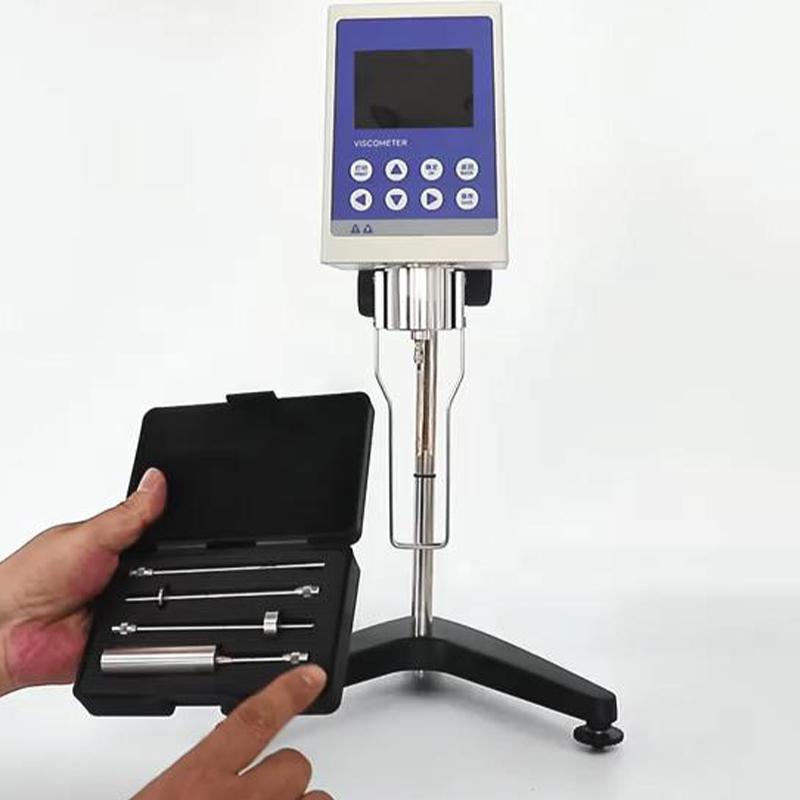

• Standard 1/2/3/4 rotor, 0 rotor is optional
• 50 measurement records can be stored
• Support switching between Chinese and English
