Overview
The NDJ-8ST rotational viscometer is HuiNuo brand digital rotational viscometer upgrade product, using reliable mechanical design technology, manufacturing process and microcomputer control technology, and stable data collection. The instrument has high measurement Sensitivity and reliable test results, and can be used for the measurement of absolute viscosity of Newtonian liquids and apparent relative viscosity of non-Newtonian liquids.
Features

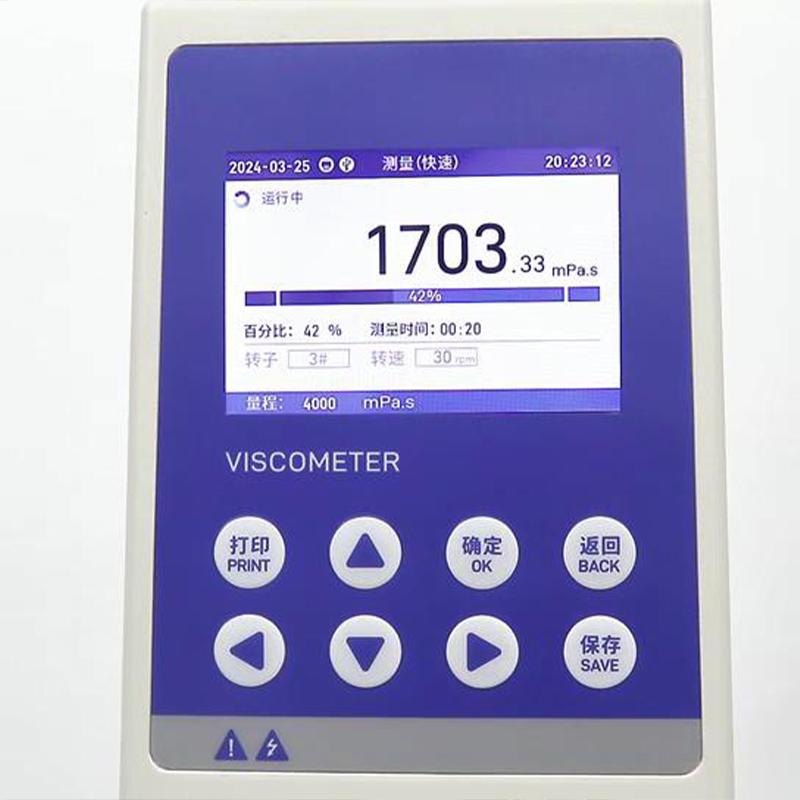

1. Adopt high-resolution 3.5-inch IPS display, visually display viscosity, Rotation speed, temperature, percent torque, rotor number and the maximum viscosity that can be measured at the current Rotation speed of the selected rotor number
2. Sensitivity of measurement, reliable test results
3. Measurement mode options including timing measurement and automatic scanning
4. All models come standard with temperature probe
5. Stable data collection, using reliable mechanical design technology and microcomputer control technology
Principle
The instrument determines the viscosity value by swirling/spinning the rotor in the liquid and measuring the resistance of the liquid to the rotor. The microcomputer Control system collects and processes the data, and the monitor displays the measurement results in real time.
Applications
Oil, paints, plastic, food, Coatings, glue, Adhesive, Resin, chemical raw materials and other fluid viscosity measurement
Steps
1. Select Measurement mode (Fast, Timed or Auto Scan)
2. Install the right rotor
3. Measuring location of samples
4. Start measurement, the instrument automatically collects data
5. Read the viscosity, Rotation speed, temperature and other parameters on the display screen
Notice
• The working environment needs to be in an air environment with 0 ℃~ 40 ℃, Humidity 20%~ 80% no condensation
• Power supply voltage 100~ 240v, 50~ 60HZ range
• Check whether the rotor is installed correctly before use
• Avoid operating the instrument in humid or condensing environments
