Overview

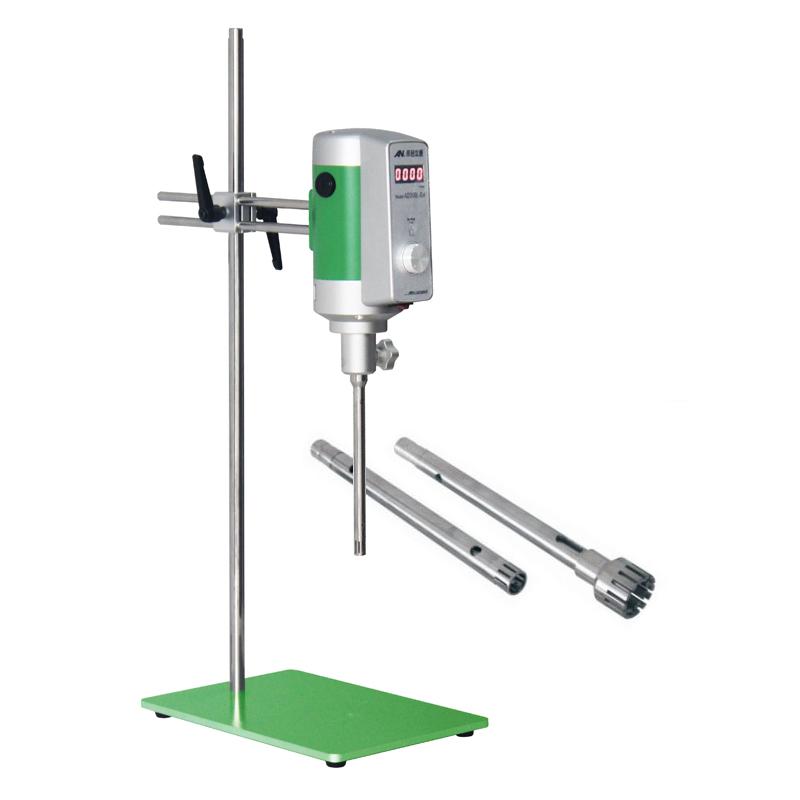

AD300L-SH high-speed dispersion Mulser is an ANGNI brand laboratory equipment. It is driven by a series motor and is suitable for stirring and mixing of low to high viscosity liquids in the laboratory, dispersing and homogenizing granular materials and crushing tissue cells. The machine consists of a high-speed motor, a dispersed homogenizing working head and a speed control controller, with stable operation, precise control of Rotation speed and automatic protection functions.
Features
1. Adopt high-quality die-cast aluminum alloy body for stable operation
2. The working head is made of high-quality stainless steel, with a wide range of experimental applications
3. Microprocessor control Rotation speed, can instantly compensate for load changes and Power supply voltage fluctuations, constant speed reliable
4. Built-in soft start and automatic overload protection ensure the safety of continuous operation with full load for a long time
5. Stepless speed regulation function, to meet the experimental Rotation speed correction at any time
6. Rotation speed of digital display is intuitive, providing convenience for experimental data collection
7. Run the timing control function to ensure that the experimental timeliness is effectively controllable
Principle
The device uses a high-speed motor to drive the working head to swirl/spin at high speed in the liquid medium, generating a strong shear force to achieve dispersion, homogenization and cell crushing of the material. The microprocessor Control system can monitor and adjust the Rotation speed in real time to ensure a constant working effect under different load conditions.
Applications
Laboratory liquid mixing, granular material dispersion homogenization, tissue cell crushing
Standards
Duty Cycle S1 (Continuous)
Steps
1. Select the appropriate 19G or 35G working head and install it
2. Dip the working head into the liquid to the appropriate depth (19G: 45-160mm, 35G: 60-175mm)
3. Turn on the power and set the required Rotation speed (2000-24000rpm)
4. Set the timing time (1-999 minutes)
5. Start the device and start working
6. Turn off the power after the work is completed and clean the work head
Notice
• The depth of the working head immersed in the liquid should meet the specified range
• Operating temperature of material contact part is 120 ℃
• Permissible Ambient Temperature 5~ 40 ℃, relative humidity ≤ 80%
• Chemical wet sterilization
• Pay attention to the suspension particle size and emulsion particle size range requirements
• Avoid long-term overload operation
• Regularly check the operating status of the equipment
