Overview

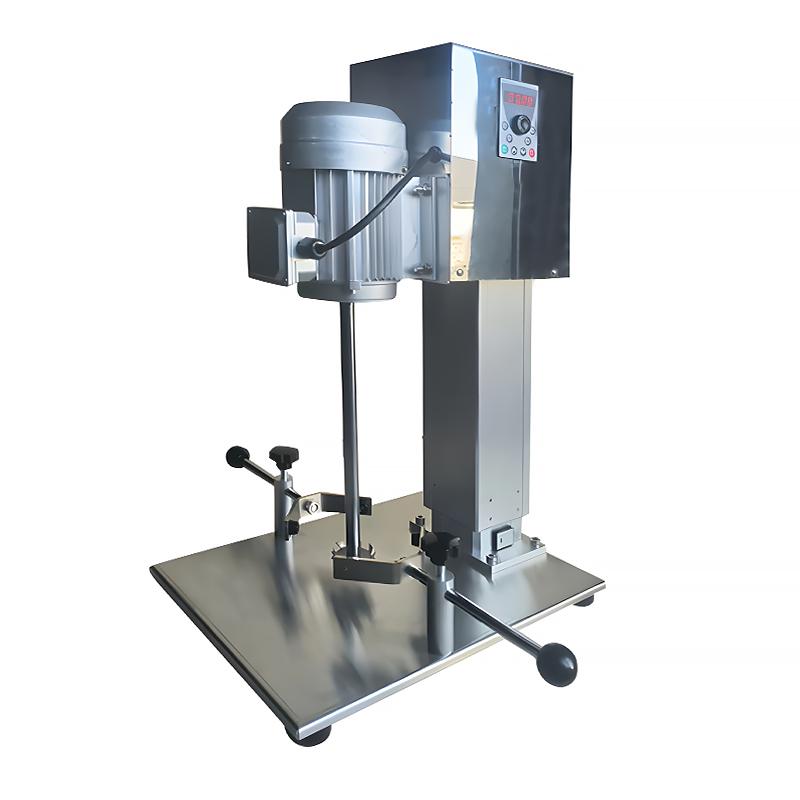

HUXI HR-750BPF laboratory high speed dissolver is an experimental equipment that integrates stirring, sand grinding and dispersion functions. It has the advantages of small size, low noise, no commutation interference, and no carbon brush mechanical abrasion. The device directly displays the rotating shaft Rotation speed digitally, equipped with dispersion blades, which can adapt to different experimental needs, and calculates the relationship between linear speed and material viscosity and chemical reaction rate through the rotating shaft speed, providing correct data for large-scale production.
Features
1. Select frequency conversion brushless motor, no spark/dust, high safety performance, low noise, sufficient power, can run for a long time, meet the high requirements of dispersion and mixing experiments.
2. Adopt the design of holding the fixed material barrel, and the kettle body will not be displaced when handling high viscosity materials.
3. The dispersion disc is connected with the dispersion shaft with hexagon screws, which is easy and flexible to disassemble and assemble, and can be selected in multiple specifications.
4. Rotation speed up to 8000RPM with variable frequency high-speed motor is used to strengthen the shear rate of the equipment in the experiment.
5. Adopting the electric lifting method, the lifting is simple and convenient.
Principle
The experimental high speed dissolver drives the dispersion shaft at high speed swirl/spin through the frequency conversion brushless motor to drive the dispersion blade for stirring, grinding or dispersing operations. The digital display of the rotating shaft Rotation speed allows users to directly calculate the relationship between the linear speed and the material viscosity and chemical reaction rate according to the Rotation speed to achieve accurate experimental control.
Applications
Factories, Research Institutions, Universities & colleges, Medical Units, Pigments, inks, Food, Coatings, Biology, Physicochemical, Cosmetics and other product development and experimental fields
Steps
1. Fix the material barrel with a clamp to ensure that the kettle body does not move.
2. Select the appropriate size of the dispersion disc, the use of hexagon screws and dispersion shaft connection.
3. Adjust the height of the dispersion shaft through the electric lifting platform and set the lifting Travel.
4. Start the device and use the stepless speed regulation function to adjust the Rotation speed to the desired range (0~ 8000rpm).
5. Monitor the digital display of the shaft Rotation speed for stirring, dispersing or grinding operations.
6. After the experiment, turn off the equipment and clean the components.
Notice
Make sure the voltage is 220V to avoid power mismatch.
• When handling high viscosity materials, be sure to use a holding fixed material bucket.
• When disassembling the dispersion disc, pay attention to the use of hexagon screws to ensure that the connection is firm.
• When the equipment is running, avoid overloading for a long time to prevent the motor from overheating.
• Regularly check the lifting platform and dispersed components to ensure smooth operation.
