Overview

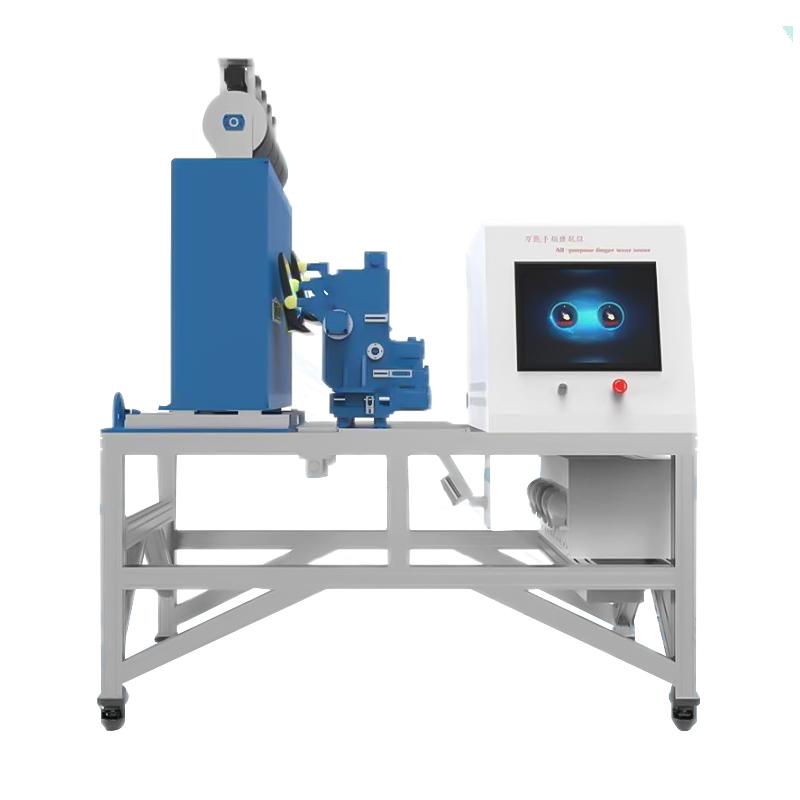

HUITAO HT-555 five-station finger Abrasion Tester is a multi-functional wear-resistant testing device that can simulate the abrasion process of products, fingers, skin, etc., including finger abrasion, nail scratch, tooth abrasion, sole abrasion and industrial scratch. The device can truly simulate the liquid environment and supports testing under liquid medium conditions such as human sweat, hand cream, sunscreen, detergent, toothpaste, etc.
Features
1. Five-station design, support multiple groups of simultaneous tests
2. Fully automatic wear-resistant movement, X and Y axes are automatically fed by High Accuracy motors
3. Customizable test conditions, support dry and liquid environment testing
4. Equipped with color 7-inch Touchscreen Operating interface, support Chinese and English switching
5. Automatic Liquid Feeding Function, High Accuracy Peristaltic Pump
6. Automatic cycle test fluid and test woven fabric supply
7. Configure the level to ensure Test accuracy
8. Add test automatic conveying function
Principle
Apply a certain pressure through the test head, carry the standard test cloth to automatically cycle friction on various material surfaces/coatings at a standard angle of 45 degrees. Test conditions can be customized, including dry and liquid environments (such as sweat, emulsion), to simulate the real abrasion process.
Applications
Nail scratch test, nail scratch test "for the automotive industry", sole abrasion test, tooth simulation test, fingerprint test
Standards
IEC 68-2-70、DIN EN 60068-2-70、BMW GS 97034/GS 97045、Daimler DBL 7384、Ford WSS-M2P188-A1、EWIMA Specification、Sony Ericsson 45/152 41-FEA 202 8139 Uen、VW TL 226、DIN 53160-2：2001
Steps
1. Prepare test samples and standard test cloths
2. Set the test parameters (Travel 1-40mm, angle 45 degrees, test times 1-1 million times)
3. Select test mode (dry or liquid environment)
4. Start the equipment for automatic cyclic friction testing
5. Observe and record test results
Notice
• Friction fabric (wool) is a consumable and needs to be brought by the customer
• Confirm the level of the equipment before testing
• Liquid medium addition requires the use of a designated peristaltic pump system
• Test parameter settings should comply with relevant standards
• Regularly check friction head Hardness and abrasion
