Overview

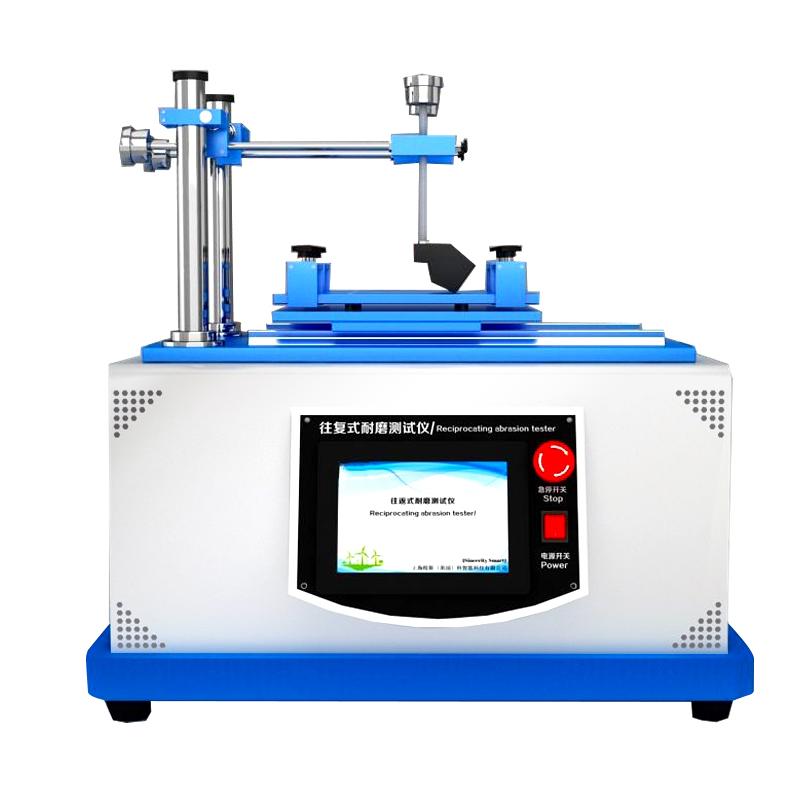

HUITAO HT-108 reciprocating Wear resistance testing apparatus is used to detect the scratch resistance and wear resistance performance of Coatings, Plastics, Decorative Fabrics, Automobile Interiors, Velvet Fabrics, etc. The instrument uses LCD screen to control and display the test process, and can set the number of reciprocating abrasions, motion Travel, reciprocating speed and other parameters according to user requests, and uses a unique friction arm design to realize the replacement of different friction heads. The implementation of pressure is controlled according to the principle of lever equilibrate to meet the requirements of different standards for friction forms, friction heads and pressures.
Features
1. The LCD screen controls and displays the test process, and can set parameters such as speed and number of reciprocating movements
2. Unique friction arm design to achieve the replacement of different friction heads
3. Control the implementation of pressure according to the principle of lever equilibrating to ensure load accuracy
4. Two-station design saves test time
5. Test Travel 6-150mm adjustable, speed range 1-100 reciprocating/min stepless adjustable
6. Adjustable height of abrasive and load rack, suitable for sample testing of different heights
Principle
The test sample is fixed on the horizontal sample stage and abraded with the horizontal movement of the sample stage under the specified abrasive and load. The other end of the test arm is weighted to maintain the equilibrate to ensure the accuracy of the sample surface load. The instrument uses a motor drive to generate a linear reciprocating motion, and the pressure is controlled by the principle of lever equilibrate, so that the additional Nominal Mass is the actual weight pressed on the sample.
Applications
Coatings, Plastics, Decorative Fabrics, Automotive Interiors, Velvet Fabrics
Standards
ASTM F2496、ISO 1518-1、ISO 1518-2、GME 60248、D42 1775、MS652-15、DBL 7384-2017、PV3987、ASTM F2495、GME 60368、GMW 14125、MS655-08、PV3906、ISO 1518、ISO 105 X12、ISO 105 D02、ASTM F1319、GB/T 9279
Steps
1. Release the fixing knob and adjust the equilibrating weight position to make the equilibrating rod reach the equilibrating rod
2. Select the appropriate friction head according to the standard and install it
3. Fix the sample on the sample table
4. Set test parameters (speed, number of reciprocations, Travel, etc.) through the LCD screen
5. Rotate the locking knob to lock the equilibrating rod ratio
6. Start the power switch to start the test
7. In case of emergency, you can press the emergency stop button to shut down.
Notice
• Make sure the instrument power supply is 220V, 50HZ before use
• When adjusting the equilibrate, release the fixed knob and observe the tilt state of the equilibrate rod
• For the D42 1775 grinding head, sandpaper should be attached to the arc surface of the grinding head
• For rubber grinding heads and sets, put the grinding heads into the middle of the sets and tighten them with top wires to expose 0.1in.
• Clean the friction head and sample stage in time after the test is completed
The emergency stop button is only used in emergencies
