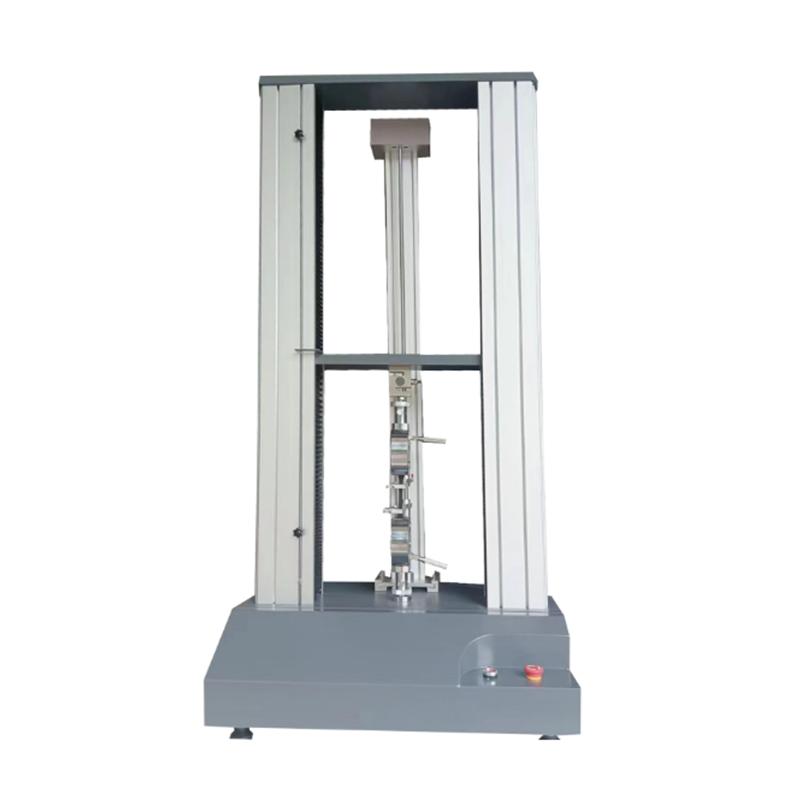

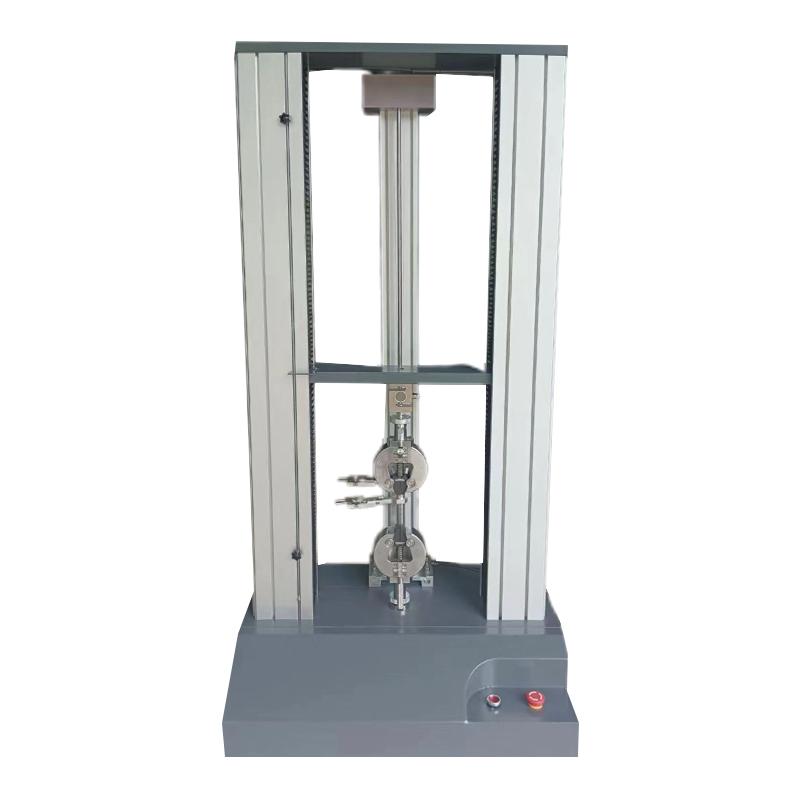

SHUCHANG SC-LL-20KN Double column UTM electronic universal testing machine 20KN High Accuracy measurement

Name: SHUCHANG SC-LL-20KN Double column UTM electronic universal testing machine 20KN High Accuracy measurement
Brand: ShuChang
SKU: NB048328
Price: 2590.0 USD
Availability: InStock

$ 2590.00Ex works

The double space portal structure is used with precision ball screws to achieve smooth transmission and high rigidity; the maximum test force is 20KN, the force resolution is 1/+/- 500000F. S, and it supports constant force, constant deformation and constant displacement control. The effective tensile height is 700mm, which is suitable for the study of mechanical performance of various materials.

Model

SC-LL-20KN

Get Quote

Category : Tensile Testing Machine

Brand : ShuChang

SKU : NB048328

Service :The delivery and service By NBCLab.Com

Overview

SHUCHANG SC-LL-20KN double column UTM is a computerized servo system universal testing machine, which adopts dual space gate structure, combines advanced measurement and control technology at home and abroad and high-efficiency transmission system. The all-digital closed-loop Control system adopts high-speed PCI2.2 standard parallel bus design, is equipped with High Accuracy Load Sensor and precision ball screw, which can realize closed-loop control of displacement, force and deformation, and professional measurement of the maximum force, tensile strength, elongation, yield strength and other mechanical properties of the sample.

Features

1. Double Space Door Structure with Four Guide Columns and Two Precision Ball Screws to Ensure High Rigidity and Stability 2. Full digital closed-loop Control system, using high-speed PCI2.2 standard parallel bus design 3. High Accuracy Load Sensor, accuracy up to 0.03Fs%, Repeatability ≤ 0.03Fs% 4. A variety of perfect test fixtures to support quick replacement 5. Software with automatic zero adjustment, Data Linear dispersion reproduction, Multi-Linear dispersion superposition comparison function 6. Multiple Safety protection functions, including test force overload protection, sample breaking Safety protection, etc 7. Adopt brand digital servo motor, smooth transmission, noise below 50 decibels 8. Hierarchical management of software rights, easy to manage by rights

Principle

The testing machine controls the full digital controller through the computer system, controls the servo motor to rotate through the speed control system, and drives the precision ball screw pair swirl/spin through the synchronous toothed belt deceleration system. The ball screw pair drives the middle beam to move up and down, and drives the tensile auxiliary device to realize the loading and unloading of the sample. Control system uses BB company amplifier and AD company high-speed analog-to-digital converter to form a data collection system to realize precise control and data collection of the test process.

Applications

Institutions of higher learning, Research institutes, Building materials, Aerospace, Machinery manufacturing, Wires and cables, Rubber plastics, Automobile manufacturing, Shock absorption systems, Industrial and mining enterprises, Technical supervision, Commodity inspection and arbitration

Standards

GB/T2611-2007 "Testing machine general technical requirements", GB/T16491-2008 "electronic universal testing machine", GB/T16825-2008 "Universal Testing Machine inspection", GB/T16775-2005 "building silicone structure sealant - tensile test", GB/T1040.-2018 "plastic tensile performance measurement"

Steps

1. Select and install the appropriate test fixture 2. Clamp the specimen 3. Test space adjustment by moving control box 4. Click to start, the software automatically executes the zero adjustment program 5. Set test parameters and standards 6. Start the test, the system automatically records the data Linear dispersion 7. Automatically return to the initial position after the test 8. Analyze test data through software to obtain various mechanical properties

Notice

• Make sure the fixture is firmly installed before the test • Pay attention to the position and method of sample clamping • Avoid exceeding the maximum test force of 20KN during the test • Regularly check the ball screw and transmission system • Keep the equipment clean to prevent dust from entering the ball screw • Safety protection function is normal during operation • Software use needs to be managed hierarchically according to permissions

maximum test force
20KN
Testing machine level
Level 0.5
Measurement Range
0.4%~100%FS
Indication relative error
≤±1%
Test force resolution
1/+/- 500000F. S (full resolution unchanged)
Measurement Range
0.2%~100%FS
Force-controlled rate adjustment Range
0.005%~5%FS/S
Force control rate control accuracy
When the rate is < 0.05% FS, it is within the set value of +/- 1%; when the rate is ≥ 0.05% FS, it is within the set value of +/- 0.5%
Deformation rate adjustment Range
0.005~5%FS/s
Deformation rate control accuracy
When the rate is < 0.05% FS/s, it is within +/- 1% of the set value; when the rate is ≥ 0.05% FS/s, it is within +/- 0.5% of the set value
Displacement rate adjustment Range
0.05~ 500Mm/min (adjustable)
Displacement rate control accuracy
Within +/- 0.5/1% of the set value
Constant force, constant deformation, constant displacement control Range
0.5%~100%FS
Constant force, constant deformation, constant displacement control accuracy
When the set value is ≥ 10% FS, it is within +/- 0.5% of the set value. When the set value is < 10% FS, it is within +/- 1% of the set value
effective test span
400mm

[Q] Our lab primarily conducts tensile and compression tests on metal materials, and we need a universal testing machine with high precision and good stability. Do you have any recommendations?

Recommend the SC-LL-20KN Dual Column Tensile Testing Machine. It features a 0.5-grade accuracy, with load measurement starting from 0.4% FS and an indication error of ≤±1%, enabling precise measurement of key indicators such as the maximum force, tensile strength, and yield strength of metals. Its full digital closed-loop control and precision ball screw transmission ensure smooth and highly repeatable testing processes, making it suitable for studying the mechanical properties of metal materials.

[Q] Our company produces automotive shock absorption systems and needs to test the tensile and compression properties of rubber components. Is this instrument suitable?

Applicable. The Shuchang SC-LL-20KN supports a variety of tests, including tension, compression, and bending, and is equipped with a wide range of testing accessories. It is specifically designed for testing non-metallic materials such as rubber. It can accurately measure parameters such as tensile strength and elongation at break, and complies with automotive industry standards like GB/T 16775, helping you effectively control the quality and durability of damping components.

[Q] We need an instrument that can simultaneously meet the testing requirements for both plastic tensile and construction sealants. How should we choose in terms of functionality?

The Xuanshuchang SC-LL-20KN is a suitable choice. It comes with built-in professional measurement and control software, enabling testing according to various standards such as GB/T 1040 (plastics) and GB/T 16775 (building sealants), with one-click switching between them. The instrument features multiple control modes, including constant force, constant deformation, and constant displacement. It automatically calculates and outputs data such as maximum load capacity and elongation rate. With this single machine, you can cover the tensile performance testing needs for both plastics and sealants.
