Overview

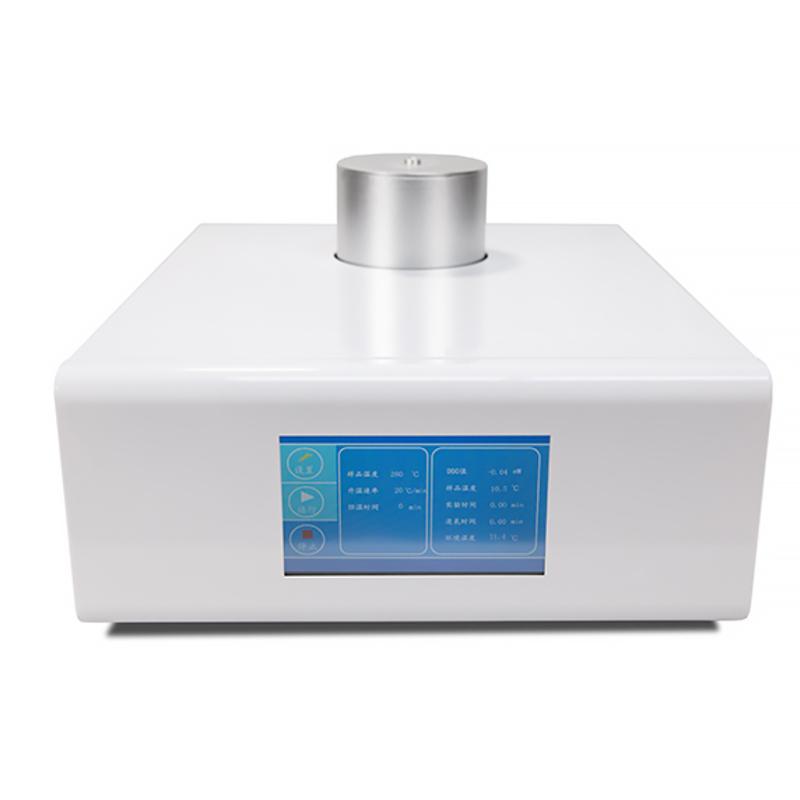

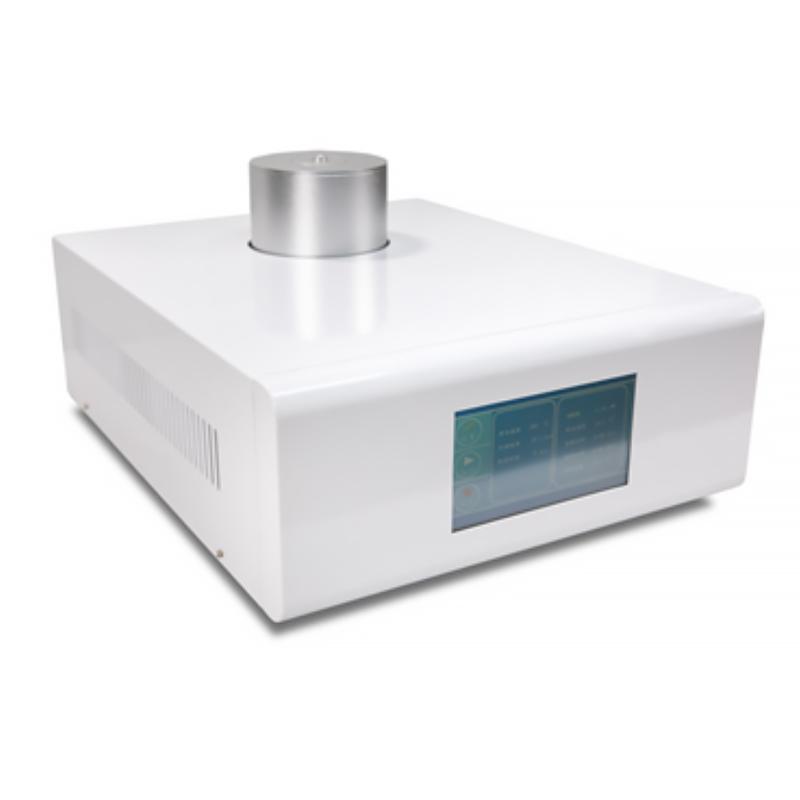

Huicheng DSC-600 Differential Scanning Calorimeter is a heat flow Differential Scanning Calorimeter, which adopts the classical thermal analysis method of thermal effect under controllable program temperature. The instrument is widely used in the research and development, process optimization, Quality control and failure analysis of various materials and chemical fields. It can measure the phase transition of inorganic materials, the melting of polymer materials, the crystallization process, and the solid/liquid ratio of foods such as oils and fats.
Features
1. New Fully Enclosed Metal Furnace Design Structure Improves Sensitivity and resolution and Baseline Stability
2. Imported alloy Sensor, more corrosion resistance, oxidation resistance, Sensor sensitivity
3. Adopt Cortex-M3 core ARM controller, faster computing processing speed and more accurate temperature control
4. Adopt USB two-way communication to achieve intelligent operation
5. Adopt 7-inch 24bit color full-color LCD Touchscreen to display instrument status and data in real time
6. Intelligent software design, automatic drawing of the instrument, software can realize various data processing
Principle
Differential Scanning Calorimetry (DSC), as a classical thermal analysis method for thermal effects at controlled program temperatures, studies the change of thermal performance of materials by measuring the difference in heat flow between the sample and the reference.
Applications
Material research, Chemical research, Process optimization, Quality control, Failure analysis
Steps
1. Connect the power supply and working gas
2. Set experimental parameters through Touchscreen
3. Place samples and references
4. Start the program for heating, thermostatic or cooling scans
5. The instrument automatically collects data and plots
6. Use software for data processing and analysis
Notice
• Power Supply requires AC 220V 50Hz or custom power supply
• Gas flow rate range is controlled at 0-200mL/min
• Gas pressure does not exceed 0.2 MPa
• Temperature and enthalpy calibrated before use
• Pay attention to the heat dissipation of the instrument during operation to ensure good ventilation
