$ 10049.00Ex works
Temperature range -170 to 600 ℃, support 0.1~ 100 ℃/min heating and 0.1~ 50 ℃/min cooling, using imported high Sensitivity Sensor and dynamic PID algorithm to improve signal analysis and temperature control robustness.
Category : Other Instruments
Brand : HuiCheng
SKU : NB048381
Service :The delivery and service By NBCLab.Com

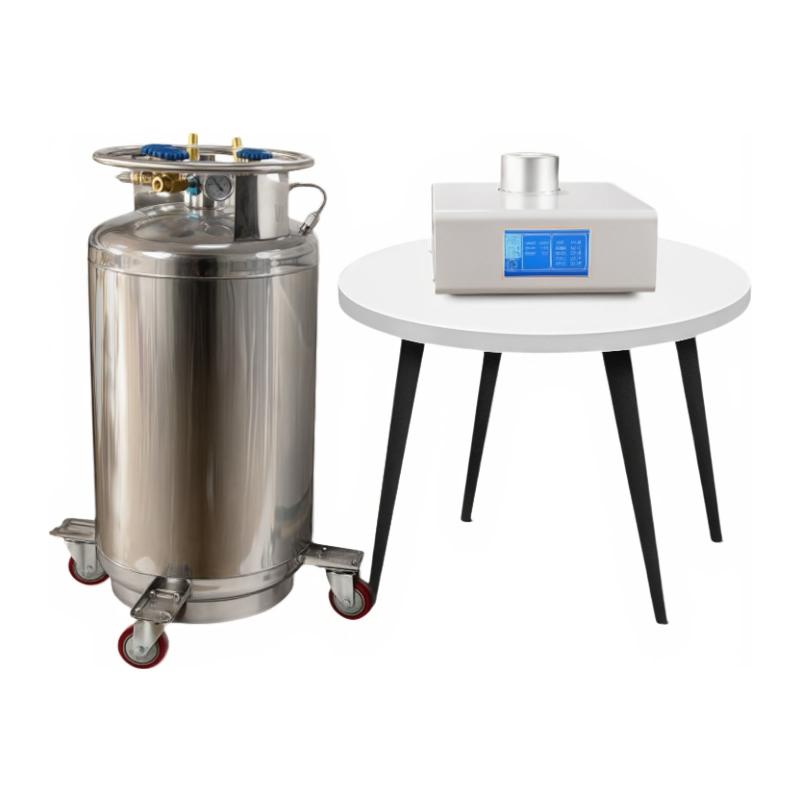

Huicheng DSC-600L/-170~ 600 Differential Scanning Calorimeter is a thermal flow Differential Scanning Calorimeter. It adopts thermal effect measurement technology at controllable program temperature and is widely used in research and development, process optimization, Quality control and failure analysis in the field of materials and chemistry. The instrument can measure physical and chemical changes related to heat, such as Glass transition temperature, melting point, crystallization heat, phase transition reaction heat, thermal stability, curing/crosslinking and oxidation induction period.
1. The integrated design of the whole machine improves the signal sensitivity and resolution, and the Baseline is more stable. 2. Imported high-frequency core control processor, with fast processing speed and efficient control. 3. Imported High Sensitivity Sensor to improve DSC signal sensitivity and accuracy. 4. Independent atmosphere control, intelligent software settings, automatic switching of gas paths, high experimental efficiency. 5. The lower computer and the upper computer have multi-point temperature correction function to improve the accuracy of temperature testing. 6. FTC and STC two experimental modes are optional, the temperature control is flexible and accurate, and the Sensor signal analysis is efficient. 7. The full temperature control system adopts an optimized dynamic PID algorithm to improve the robustness of dual-mode temperature control. 8.12-Order program temperature control settings, experimental methods are diverse. 9. Sensor signal sampling Frequency 1~ 10Hz can be set, the experiment is flexible, and the data is controllable. 10. Independent dual temperature sensor, test furnace temperature and sample temperature at the same time. 11. Support heating, cooling, and isothermal experiments. 12. USB two-way communication, self-recovery connection, intelligent software, with Baseline deduction, automatic drawing and data processing functions.
Differential Scanning Calorimetry (DSC) is a thermal analysis method for the measurement of thermal effects at a controlled programmed temperature. The instrument detects the heat flow difference between the sample and the reference substance through a high-Sensitivity Sensor, and combines dynamic PID algorithm and programmed temperature control to accurately analyze the heat change. It is used to study the phase transition, melting, crystallization and other processes of materials.
Research and development, process optimization, Quality control, failure analysis of inorganic materials, polymer materials, oily food and other materials and chemical fields
Equipped with standard materials, users can adjust the temperature and enthalpy by themselves
1. Intelligent setting of experimental parameters through software, including temperature program, atmosphere control and sampling Frequency. 2. The instrument automatically switches the gas path system for heating, cooling or isothermal scanning. 3. Automatic data collection and processing, including enthalpy calculation, Glass transition temperature analysis, etc. 4. Use the multi-point temperature correction function to calibrate the instrument.
• Operating voltage is AC220V/50Hz or custom voltage. • Gas flow rate is controlled at 0~ 200mL/min, gas pressure is 0.2Mpa. • Temperature and enthalpy calibration using reference materials before experiments. • Avoid operating outside the Temperature range (-170 ℃~ 600 ℃). • Regularly check the instrument connection and communication status.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
