Overview

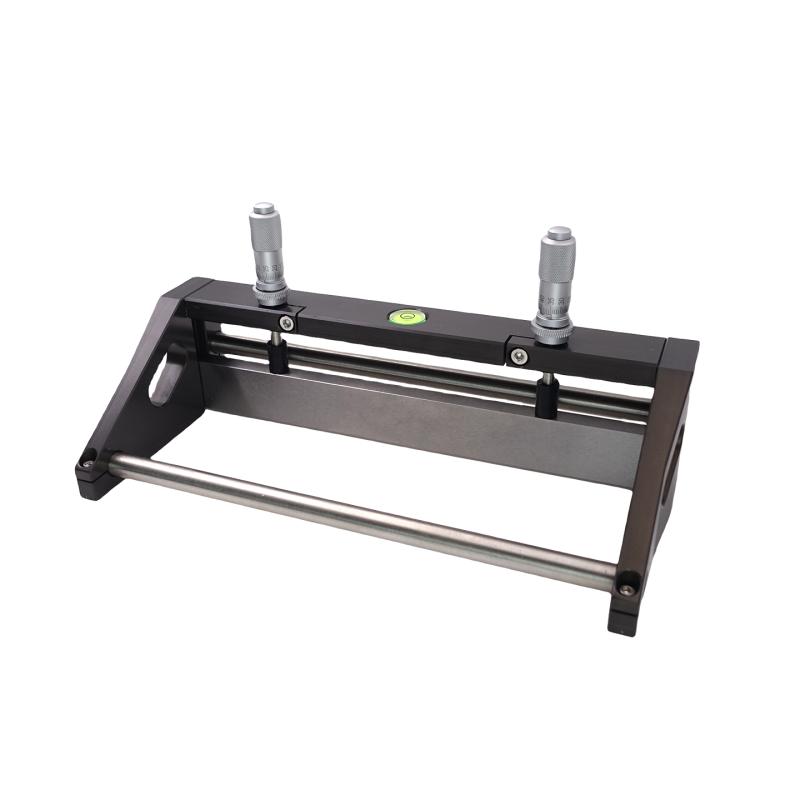

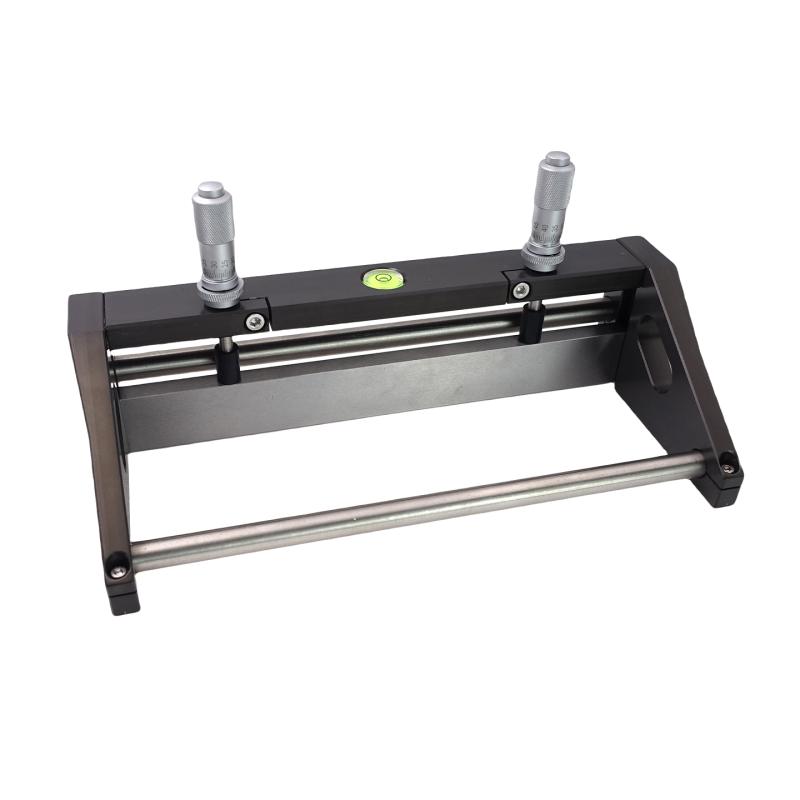

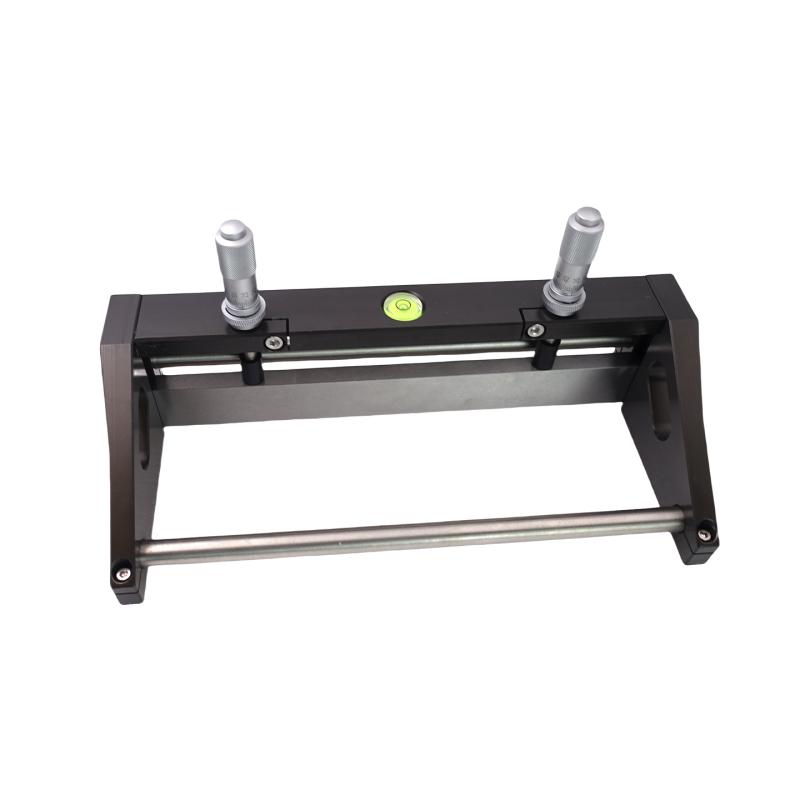

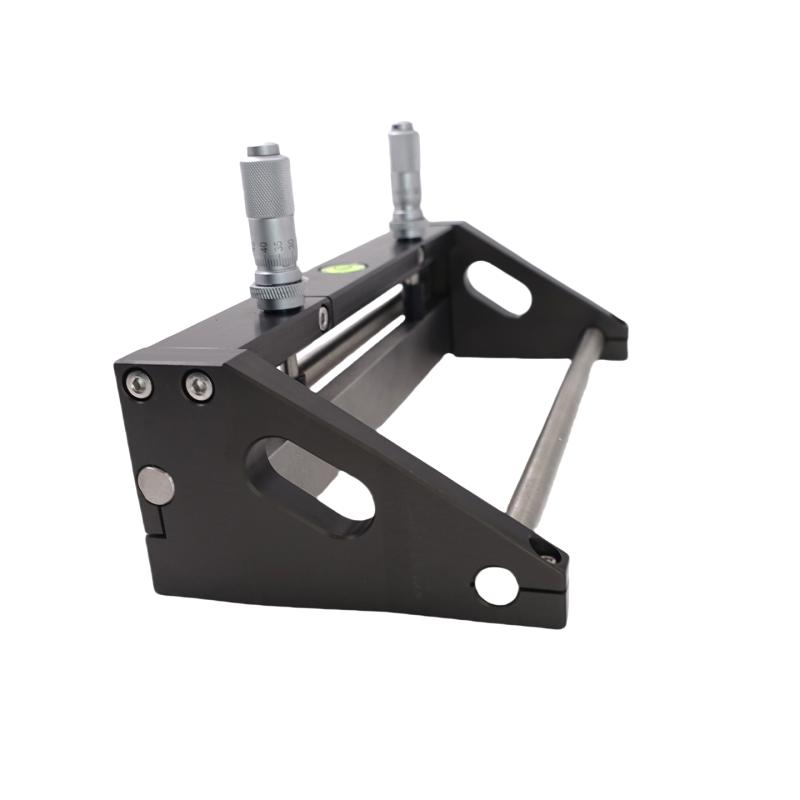

HuiNuo adjustable fabricator KTQ-200 is a film thickness adjustable Film Applicator. Adjust the drawdown blade gap through the top two scale differential heads to control the Coating thickness. Graduation is 10μm. The film range is adjustable from 0 to 5000 microns, accuracy +/- 5μm, the frame is aluminum hard oxidation, and the drawdown blade is made of die steel.
Features
1. Non-digital scale differential head, Graduation 10μm
2. Die steel drawdown blade material, with high Hardness, Abrasion Resistance and corrosion resistance
3. Large range, adjustable from 0 to 5000 microns
4. Application width 200mm
5. drawdown blade straightness +/- 2μm
Principle
By adjusting the two differential heads above the Applicator, the drawdown blade is adjusted vertically to control the gap, the gap size is the final Coating thickness.
Specifications
Type: removable drawdown blade, wet film thickness: 0~ 5000μm, application width: 200mm, accuracy ： +/- 5μm, frame material process: aluminum hard oxidation, drawdown blade material process: die steel, size: 224 * 100 * 55mm (excluding differential head), Net weight: 1070g, differential head: scale differential head, drawdown blade straightness: +/- 2μm, differential head Graduation: 10μm
