HuiNuo KTQ-250 Adjustable Preparation Film Applicator film thickness 0~ 5000 microns Adjustable

Name: HuiNuo KTQ-250 Adjustable Preparation Film Applicator film thickness 0~ 5000 microns Adjustable
Brand: HuiNuo
SKU: NB048436
Price: 327.0 USD
Availability: InStock

$ 327.00Ex works

Adopt scale differential head to adjust film thickness, Graduation 10 μ m, film range 0~ 5000 μ m, drawdown blade straightness +/- 2 μ m, die steel drawdown blade wear resistance corrosion resistance, aluminum frame light and durable.

Model

Get Quote

Category : Film Applicator

Brand : HuiNuo

SKU : NB048436

Service :The delivery and service By NBCLab.Com

Overview

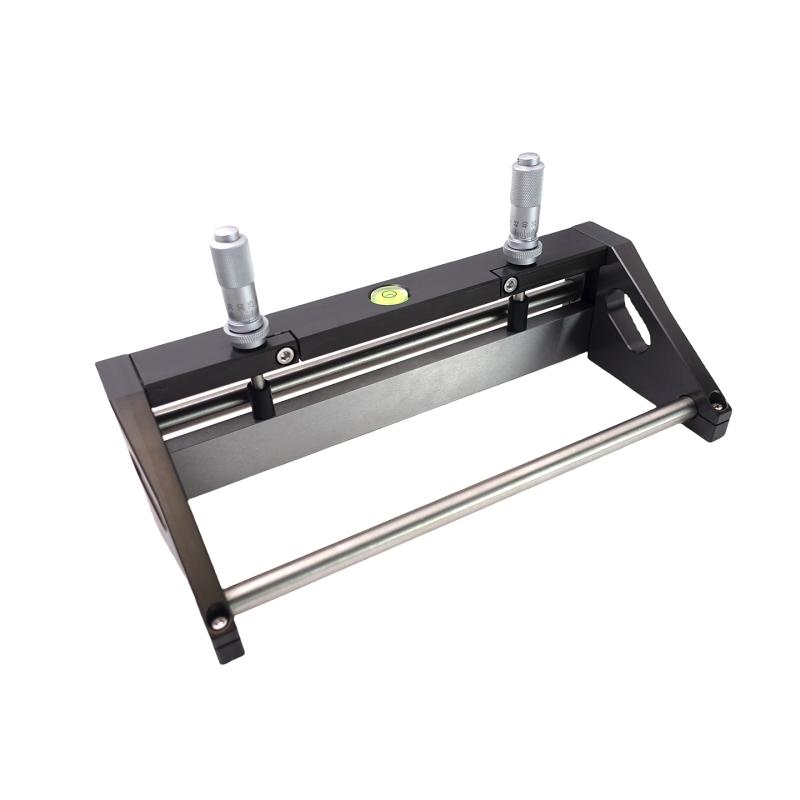

HuiNuo adjustable fabricator KTQ-250 is a film Applicator with adjustable film thickness. Adjust the drawdown blade gap through the upper two scale differential heads to control the Coating thickness, the film range is 0~ 5000 microns, and the accuracy is +/- 5μm. The frame is made of aluminum hard oxidation, the drawdown blade is made of die steel, Dimension 274 * 100 * 55mm (excluding differential head), Net weight 1280g.

Features

1. Non-digital scale differential head, Graduation 10μm 2. Die steel drawdown blade material, with high Hardness, Abrasion Resistance and corrosion resistance 3. Large range, adjustable from 0 to 5000 microns 4.250Mm application width 5. drawdown blade straightness +/- 2μm

Principle

Applicator by adjusting the above two scale differential head, the vertical direction to adjust the drawdown blade to control the gap, i.e. the gap size of the final Coating thickness.

Applications

Wet-film prepative, Coating thickness control

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

Type
adjustable
wet film thickness
0~5000um
application width
250mm
accuracy
±5um
Rack material process
Aluminum hard oxidation
Drawdown blade material process
Die steel
Size
274 * 100 * 55mm (length * width * height, excluding differential head)
Net weight
1280g
differential head
Scale differential head
Drawdown blade straightness
±2um
Differential Head Graduation
10μm

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
