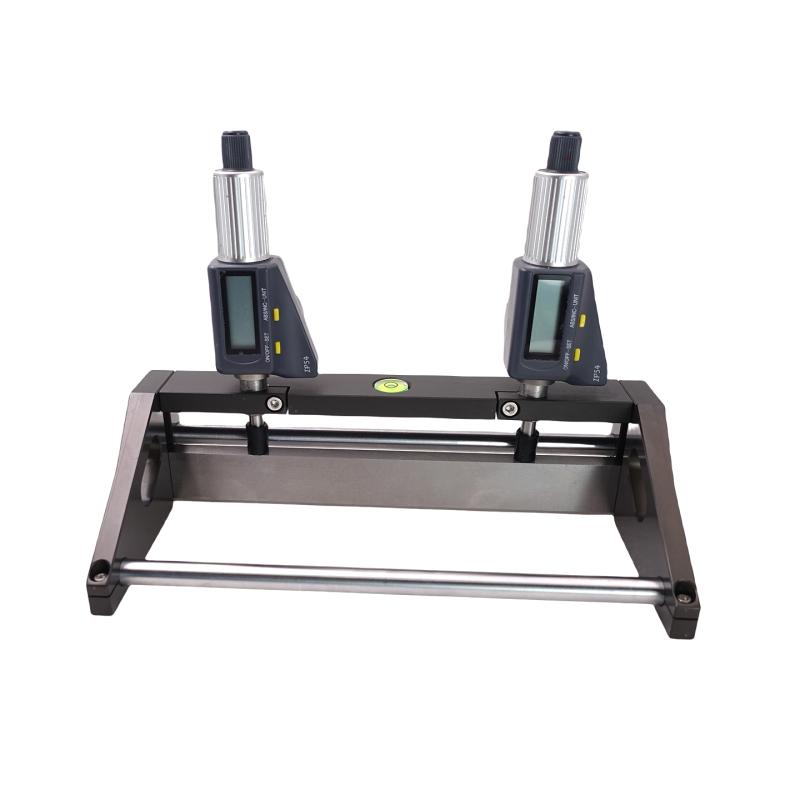

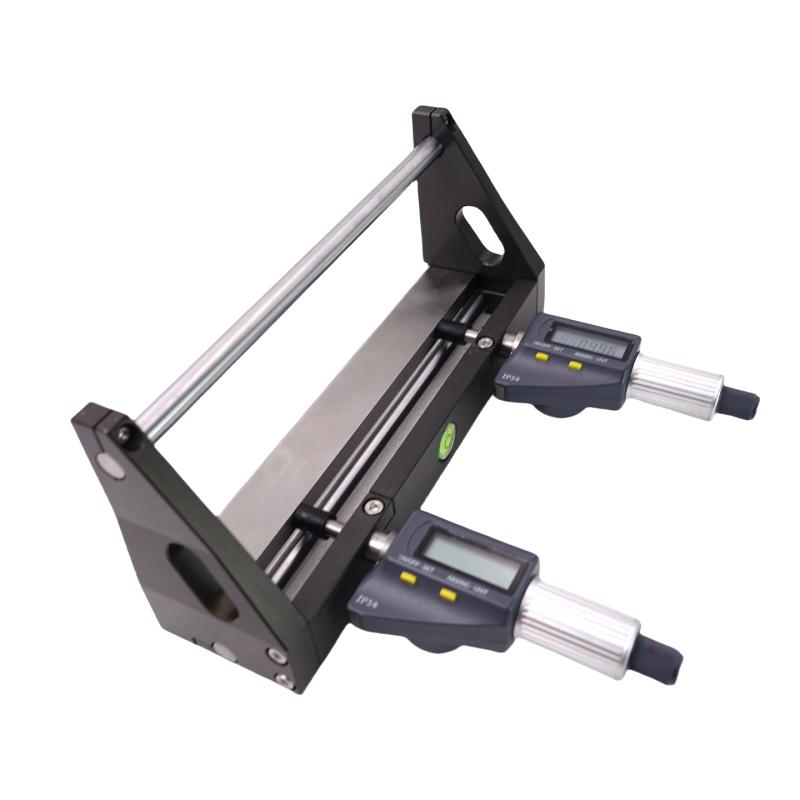

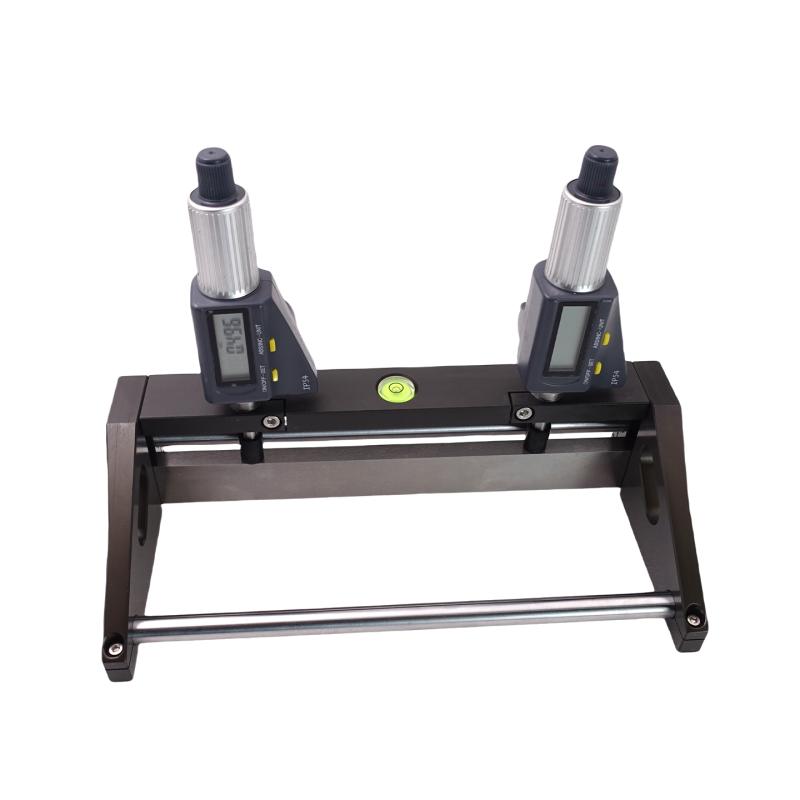

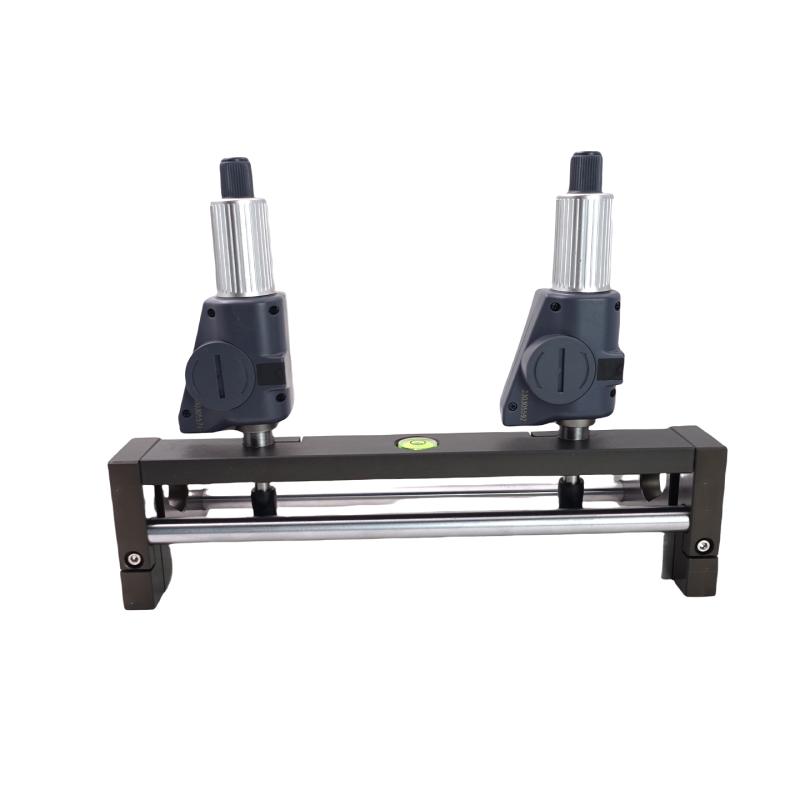

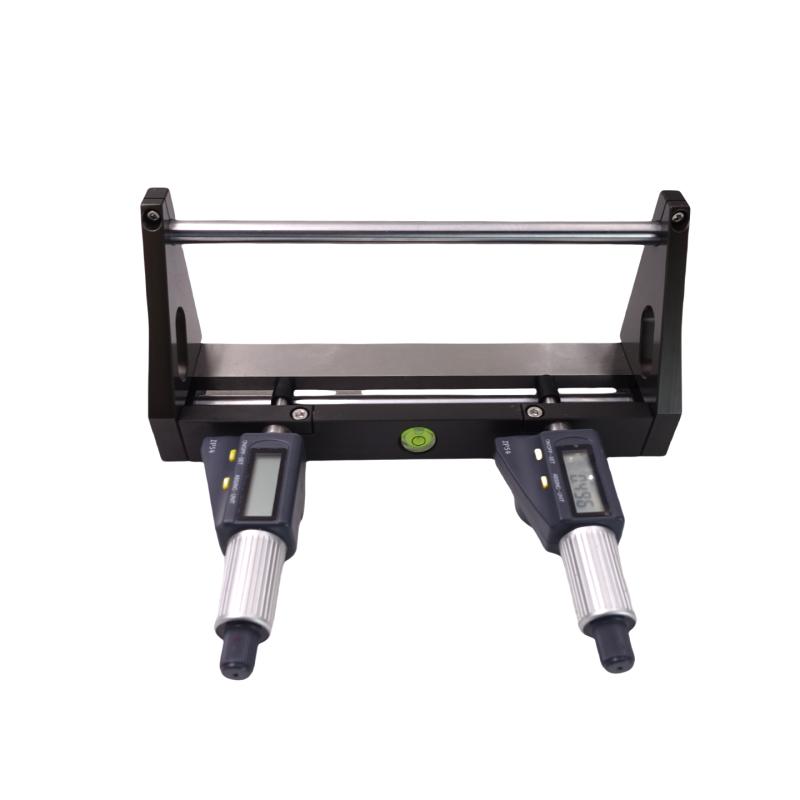

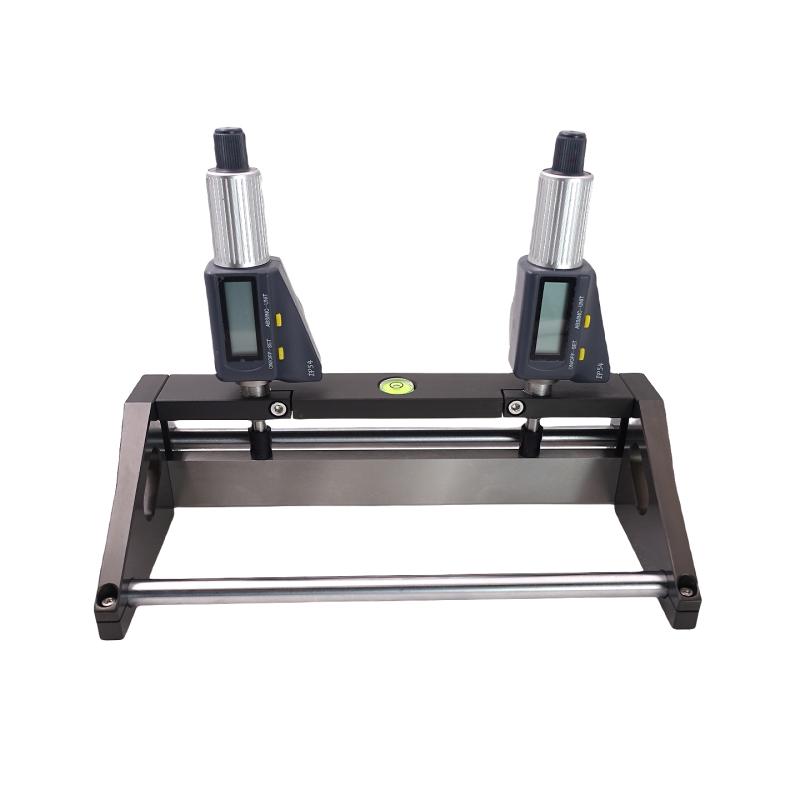

HuiNuo KTQ-50S Adjustable Preparation Adjustable Film Applicator Magnetic suction drawdown blade 0~ 5000μm film thickness

Name: HuiNuo KTQ-50S Adjustable Preparation Adjustable Film Applicator Magnetic suction drawdown blade 0~ 5000μm film thickness
Brand: HuiNuo
SKU: NB048437

Please contact customer service

Adopt magnetic suction removable drawdown blade, easy to clean; film thickness range 0~ 5000μm adjustable, drawdown blade accuracy up to +/- 2μm; lightweight hard aluminum oxide frame and high Hardness die steel drawdown blade, wear resistance and corrosion resistance.

Model

Get Quote

Category : Film Applicator

Brand : HuiNuo

SKU : NB048437

Service :The delivery and service By NBCLab.Com

Overview

HuiNuo KTQ-50S Adjustable Film Applicator is a new generation of drawdown blade removable film applicator. It adopts magnetic drawdown blade design to solve the cleaning problem of high viscosity and easy curing materials after scraping. The application width of the equipment is 50mm, and the film thickness range is adjustable from 0 to 5000μm, which meets the needs of different application scenarios.

Features

1, magnetic detachable drawdown blade structure, cleaning more convenient 2. Precise thickness adjustment with Qingliang differential head (scale and digital display optional) 3. Hardness die steel material of drawdown blade, hard aluminum oxide frame, lightweight and wear-resistant and corrosion-resistant 4, film thickness range 0~ 5000μm adjustable 5, drawdown blade accuracy +/- 2μm to 5μm (depending on the specific model) 6. Provide a variety of application widths of 50-600mm and support customization

Principle

Based on the principle of differential gap scraping, the device is scraped on the substrate by a precisely adjusted drawdown blade to form a wet-film of a set thickness. The magnetic drawdown blade can be easily disassembled for easy Spreader and subsequent cleaning of different materials.

Applications

Coatings, inks R & D and Quality control, Lithium battery Electrode prepative, Optical inspection Film Spreader, Adhesive testing, Nanomaterials research

Type
adjustable
wet film thickness
0~5000um
application width
50mm
Drawdown blade accuracy
±2um
Rack material process
Aluminum hard oxidation
Drawdown blade material process
Die steel
Size
74 * 100 * 55mm (length * width * height, excluding differential head)
Net weight
440g
differential head
green quantity
Drawdown blade straightness
±2um
Graduation of digital differential head
1um

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
