$ 790.00Ex works
Using DSP chip control, Measurement speed is fast and low power consumption; Vertical Measurement range up to 160μm, support more than 20 kinds of paraMeters such as Ra, Rz; Built-in lithium battery works continuously for more than 20 hours, storing 100 sets of data.
Category : Roughness Tester
Brand : Leeb
SKU : NB048450
Service :The delivery and service By NBCLab.Com

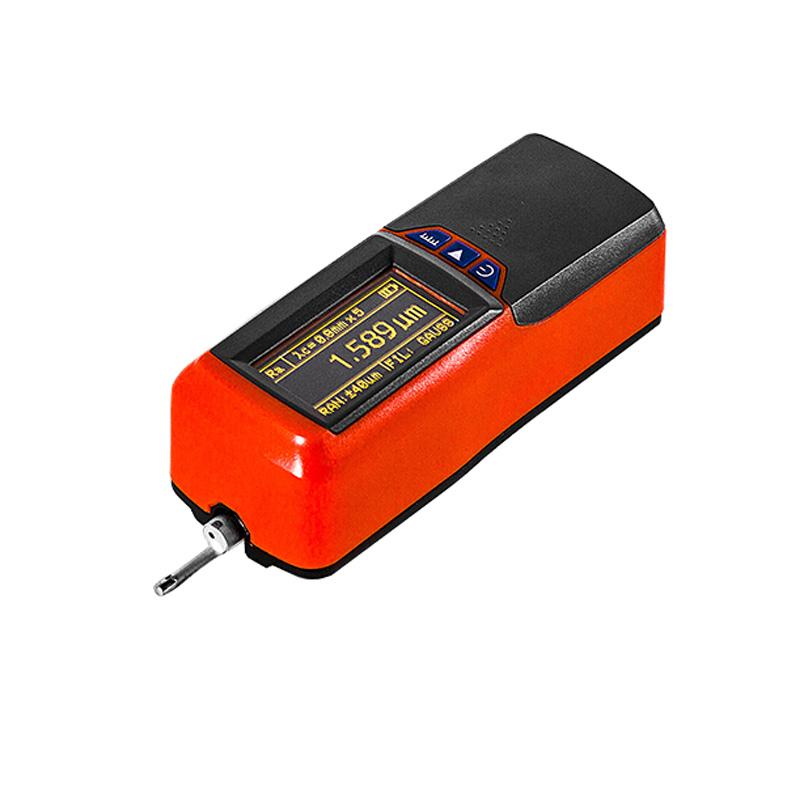

Portable Roughness Gauge is a Portable stylus surface roughness shape measurement instrument, suitable for testing in workshop verification stations, laboratories, Measurement rooms and other environments. Measurement parameters comply with international standards and are compatible with the standards of some industrialized countries such as the United States, Germany, Japan, the United Kingdom, etc. The measurement results can be displayed digitally and graphically on the LCD display or output to the printer.
1. Mechatronics design, small size, light weight, easy to use 2. Adopt DSP chip for control and data processing, fast speed and low power consumption 3. Large range, Multi-Parameter measurement, including Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rsm, Rku, Rs, RPc, Rk, Rpk, Rvk, Ry, Mr1, Mr2, Rmax 4.128 × 64 OLED point matrix display, digital/graphic display, highlight without viewing angle 5. The display is informative and intuitive, capable of displaying all parameters and graphics 6. Compatible with ISO, DIN, ANSI, JIS and other national standards 7. Built-in lithium-ion rechargeable battery and charging control circuit, high capacity, no Memory effecy 8. There is a remaining power indicator icon, prompting the user to charge in time. 9. The charging process indication can be displayed, and the operator can know the charging degree at any time 10. Continuous Operating Time greater than 20 hours 11. Data storage, can store 100 original data sources and waveforms 12. Real-time clock setting and display for easy data recording and storage 13. With power-saving functions such as automatic sleep and automatic shutdown 14. Reliable anti-motor dead circuit and software design 15. Display measurement information, menu prompt information, error information and switch machine and other prompt information 16. Full Metal Shell Design, Strong, Compact, Portable and Reliability 17. Can connect computers and printers 18. All parameters can be printed or any parameters set by the user can be printed 19. Optional Surface Sensor, Small Hole Sensor, Measurement Platform, Sensor Sheath, Connector Length
When measuring the surface roughness of the workpiece, the Sensor is first placed on the surface of the workpiece to be measured, and then the instrument is started for measurement. The precision drive mechanism inside the instrument drives the Sensor to slide along the measured surface in a straight line with constant velocity. Sensor feels the asperity of the measured surface through the built-in sharp stylus. At this time, the roughness of the measured surface of the workpiece will cause the stylus to be displaced. The displacement changes the amount of Inductance of the Sensor Inductance coil, thereby generating an analog signal proportional to the measured surface roughness at the output of the phase sensitive detector. The signal enters the data collection system after amplification and level conversion. The DSP chip performs digital filtering and parameter calculation on the collected data , the measurement results are given on the display, can also be output on the printer, and can also communicate with the PC.
Processing industry, manufacturing, testing, commodity inspection and other departments, mainly suitable for on-site inspection of large workpieces and production lines, as well as verification of inspection, Measurement, commodity inspection and other departments
ISO、DIN、ANSI、JIS
1. Place the Sensor on the measured surface of the workpiece 2. Start the instrument for measurement 3. Sensor glides along the measured surface 4. The stylus feels asperity and displaces 5. The displacement changes the Inductance of the Inductance coil, generating an analog signal 6. The signal is amplified and level converted into the data collection system 7. DSP chip for digital filtering and parameter calculation 8. The measurement results are displayed on the monitor, or output to the printer, or communicate with the PC
• Measurement range: Z axis (vertical) 160μm, X axis (horizontal) 17.5mm • Resolution: Z-axis (vertical) 0.01μm/+/- 20μm, 0.02μm/+/- 40μm, 0.04μm/+/- 80μm • Indication Error: no more than +/- 10% • Variability of indication: no more than 6% • Power supply: built-in lithium-ion rechargeable battery, charged with DC5V, 800mA charger • Working environment: Temperature -20 ℃~ 40 ℃; Humidity < 90% RH • Storage and transportation environment: Temperature -40 ℃~ 60 ℃; Humidity < 90% RH • Sensor stylus is natural diamond, 90 taper angle, 5μm tip radius, force measurement < 4mN • The guide head is hard alloy, with a radius of 40mm in the sliding direction • Coasting speed: Vt = 0.135mm/s when lr = 0.25, Vt = 0.5mm/s when lr = 0.8, Vt = 1mm/s when lr = 2.5, return Vt = 1mm/s
