Overview

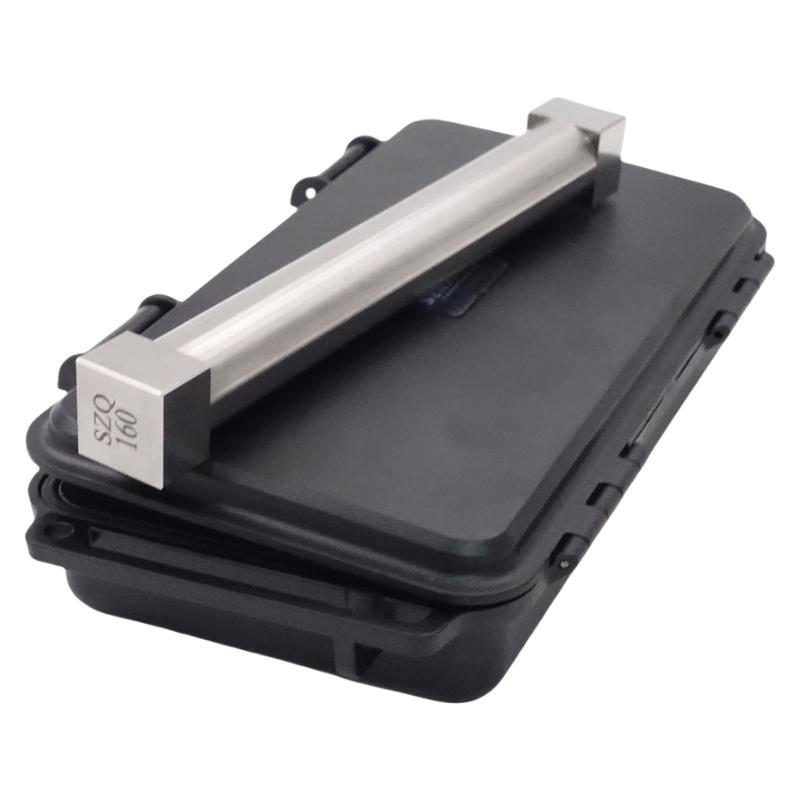

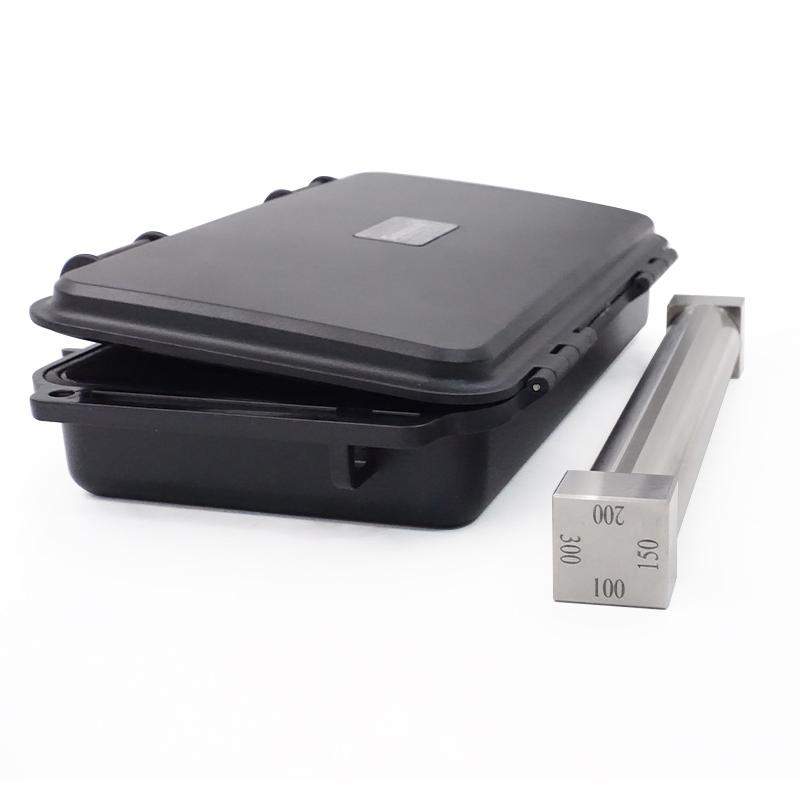

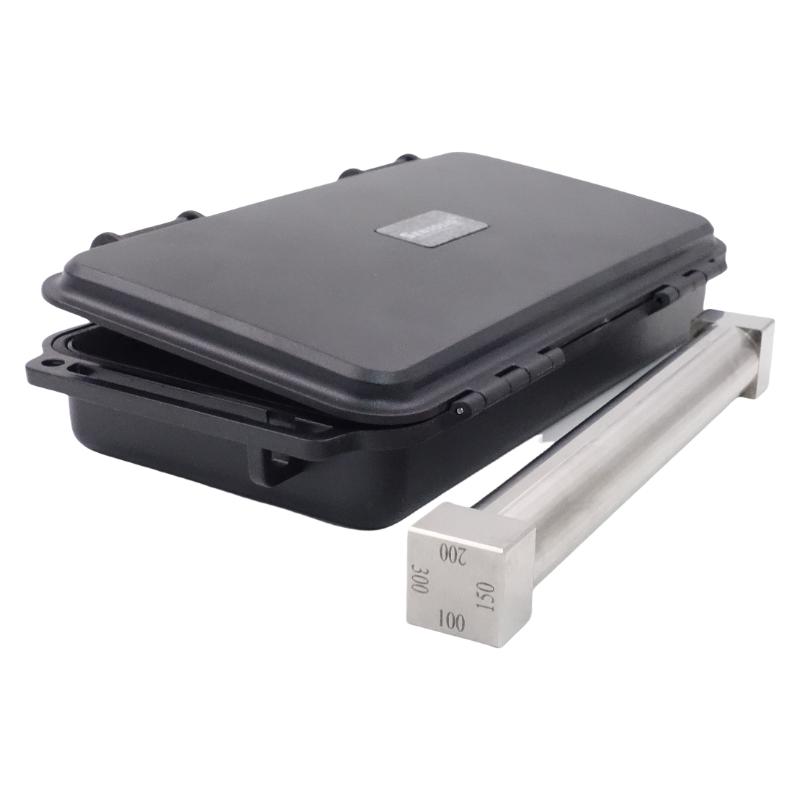

HuiNuo SZQ-160 4-sided Applicator is an experimental film instrument with an accuracy of +/- 2 microns. It is made of high-carbon chromium wear-resistant stainless steel and has good corrosion resistance. The Applicator will conduct imported three-coordinate accuracy testing before leaving the factory and comes with factory test data reports. It is suitable for sample Moulding proofing in Resin, Coating, Glue, New material, polymer material and other fields. It supports non-standard customization and supporting laboratory Automatic Film Applicator.

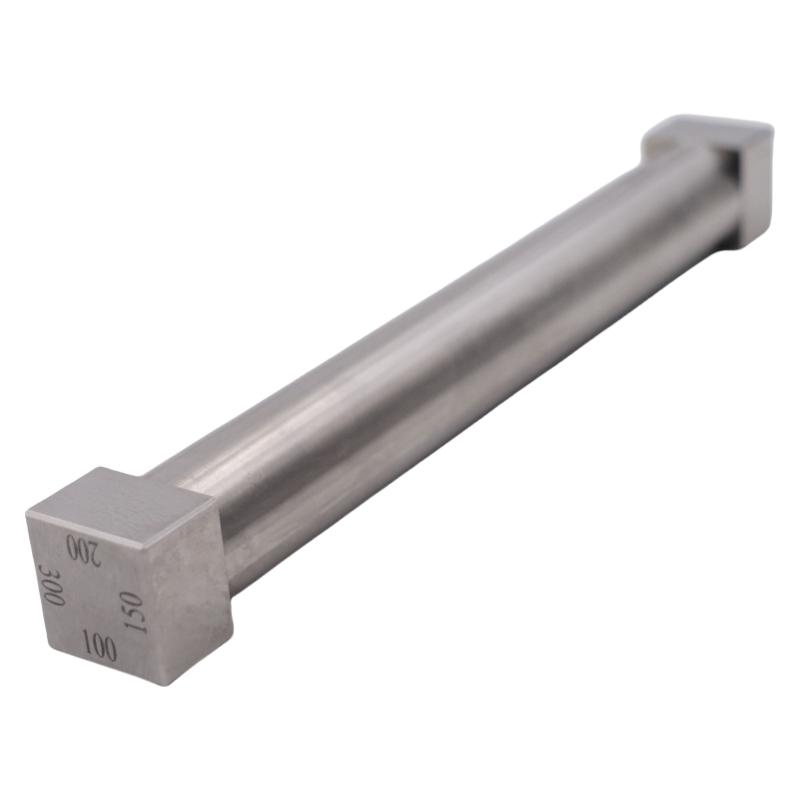

SZQ-160 300/400/500/600μm model film thickness of 300μm, 400μm, 500μm, 600μm, application width 160mm, total length 190mm, belongs to the extended type 4-sided Applicator.
Features

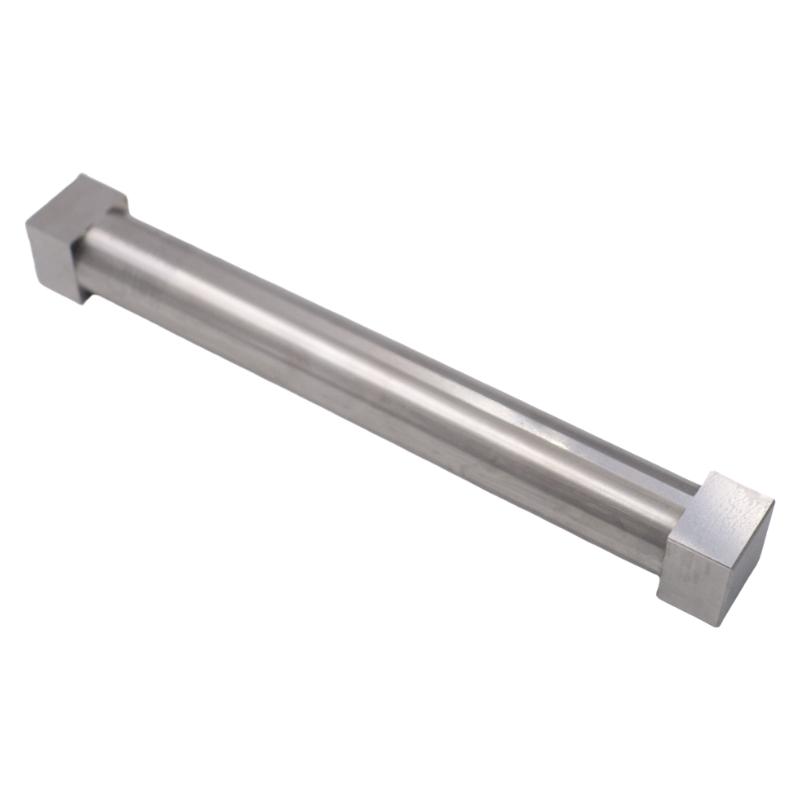

1. Made of 9Cr18Mo High Hardness Stainless Steel, with Good Abrasion Resistance and corrosion resistance, Hardness value of 50~ 55HRC
2, accuracy up to +/- 2μm to ensure experimental accuracy
3. Smooth surface, diverse styles, wide range of applications, support for customized specifications

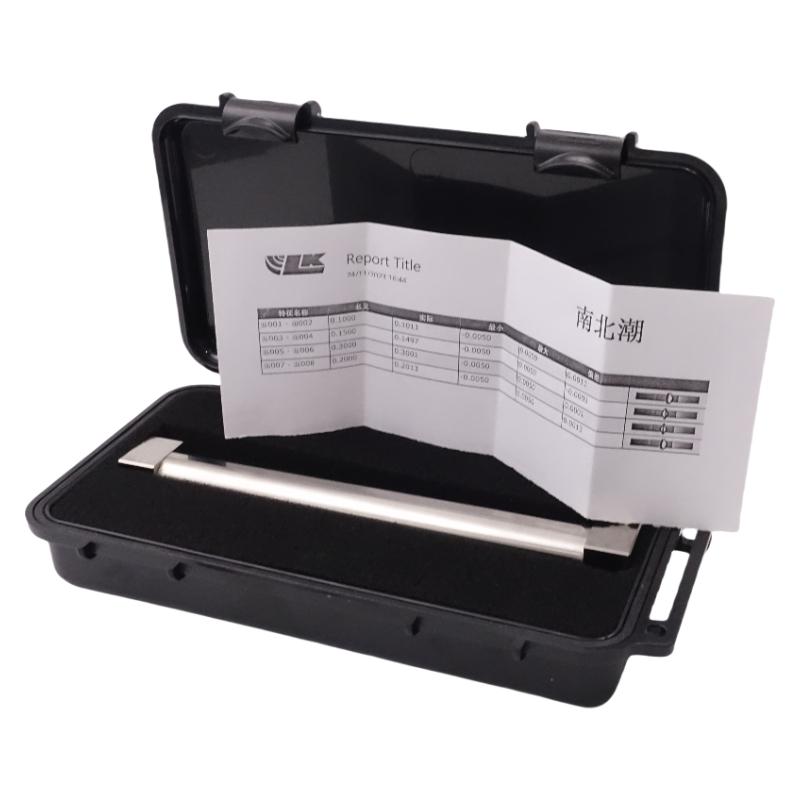

4. Adopt imported three-coordinate detection accuracy, with factory inspection report, can stand Measurement
Principle
The 4-sided Film Applicator creates a uniform coating on the substrate surface by precisely controlling the application width and wet film thickness. The Applicator utilizes its 4-sided structure and specific thickness specifications to achieve precise wet-film preparation during manual or automatic Spreader processes.
Applications
Resin, Coating, Glue, New material, Polymer material
Steps
1. Select the appropriate 4-sided Applicator model and wet film thickness
2. Prepare Substrate and Sample Materials for Spreader
3. Place the Applicator on the Substrate
4. Apply sample material evenly for Spreader
5. After completing the film, remove the Applicator
6. Laboratory Automatic Film Applicator for automatic film operation
Notice
• Before use, please confirm that the Applicator model and thickness specifications meet the experimental requirements
• Applicator surface clean to avoid scratches affecting accuracy
• Non-standard customization needs to communicate specific specifications in advance
Automatic Film Applicators must ensure equipment compatibility
• Regularly verify Applicator accuracy to ensure experimental accuracy
