Overview

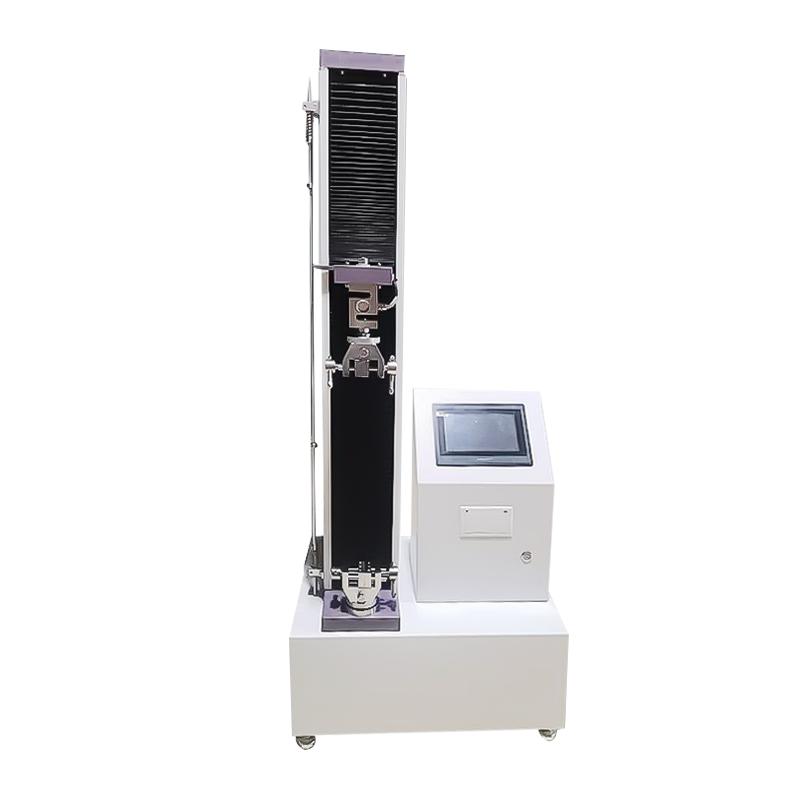

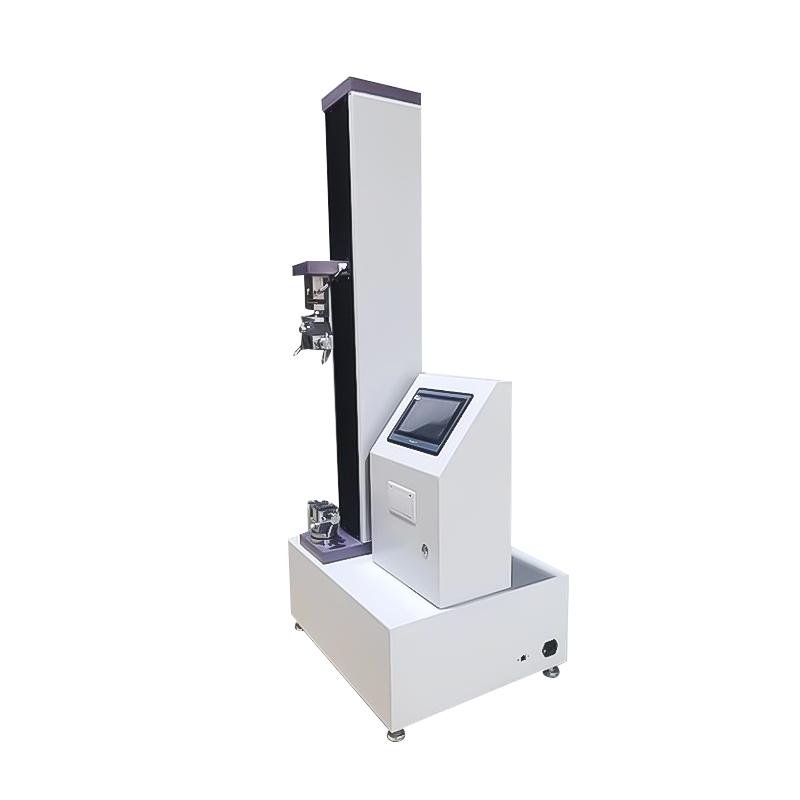

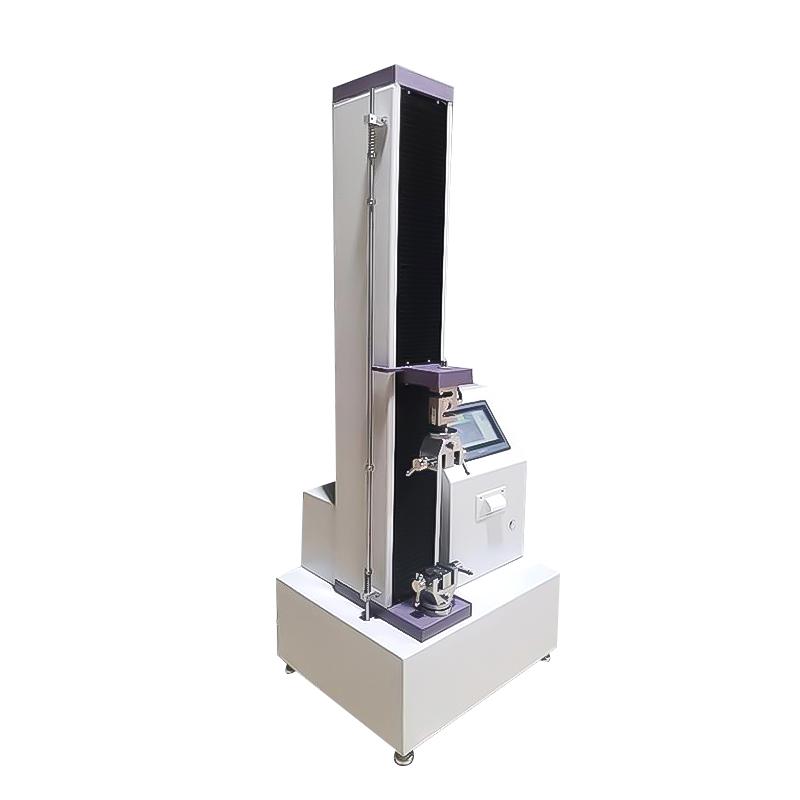

BaidaJUSHI LY-7012A 50KG Single Column Universal Testing Machine is a Universal Testing Machine, which is suitable for static loading, tensile, compression, bending, shearing, tearing, disbonding and other mechanical properties testing of plastic sheets, pipes, profiles, Plastic films, rubber, Wires and cables, steel, glass fibers and other materials. Provide special testing equipment for material development, physical property testing, teaching and research, and quality control.
Features
Measurement range 50kg, Precision +/- 0.1N, Resolution 1/200000 to ensure High Accuracy Testing.
2. Test speed range 0~ 500mm/min, effective Travel 700mm, Test space 100mm, adapt to a variety of test requirements.
3. Supports a variety of force units (kgf, gf, N, kN, lbf) and stress units (MPa, kPa, kgf/cm2, lbf/in2) for easy data conversion.
4. With upper and lower limit safety settings and test breakpoint sensing shutdown mode to ensure safe operation.
5. Equipped with a micro printer, it can directly output test results.
6. Adopt speed regulating motor as Power system, stable and reliable operation.
7. Optional tensile fixture (conventional) is available to enhance testing flexibility.
Principle
Universal Testing Machine applies force to the mechanical system driven by the speed-regulating motor, tests the material for static load, tensile, compression, bending, shearing, tearing, disbonding, etc., uses High Accuracy Sensor to measure the change of force value, and realizes safety setting and breakpoint sensing through the Control system, and finally outputs the test results.
Applications
Material development, physical property testing, teaching and research, quality control
Steps
Connect the power supply (1PH, AC220V, 50/60Hz).
2. Install the optional tensile fixture (conventional) and fix the specimen.
3. Test speed, force unit and stress unit.
4. Set the upper and lower limit safety values and breakpoint sensing parameters.
5. Start the testing machine for testing.
6. After the test is completed, use the micro printer to output the results.
Notice
Make sure the power supply is 1PH, AC220V, 50/60Hz to avoid voltage mismatch.
• Check Force Measurement range and Test speed settings before operation to prevent overload.
• Use the upper and lower limit safety settings and the breakpoint sensing function of the specimen to ensure the safety of the test.
• Maintain Power system and Sensor regularly to maintain equipment accuracy.
• Pay attention to the weight of the machine 80kg when handling to avoid dumping or damage.
