Overview

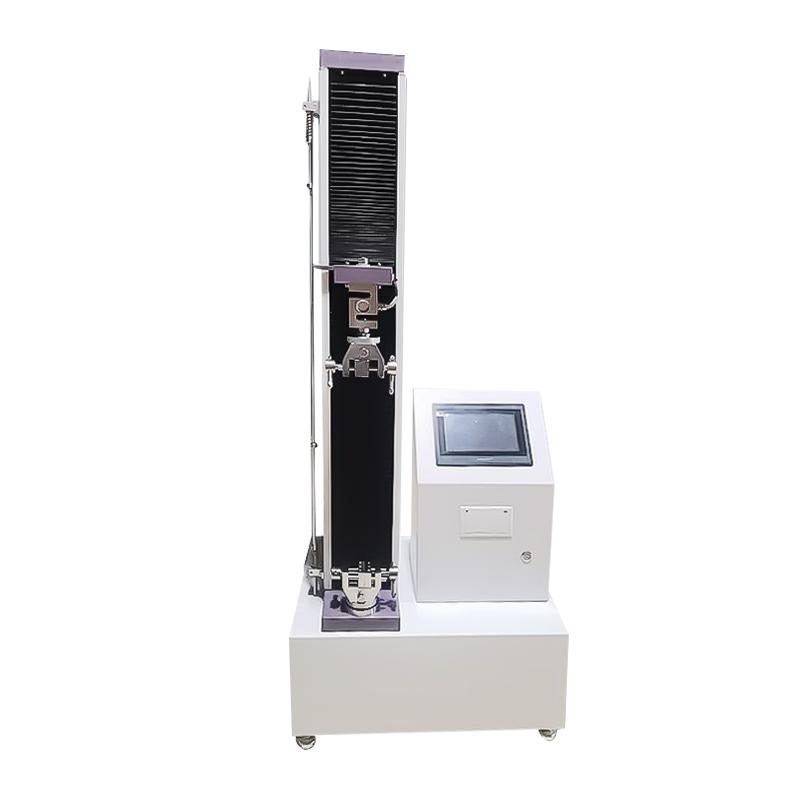

BaidaJUSHI LY-7012A 100KG Single Column Universal Testing Machine is a Universal Testing Machine, which is suitable for static load, tensile, compression, bending, shearing, tearing, disbonding and other mechanical properties tests on various materials. The equipment adopts mechanical afterburner method, which is suitable for physical and Mechanical Property Testing of Plastic Sheet, Pipe, Profile, Plastic film and Rubber, Wire and cable, Steel, Glass Fiber Dimension and other materials, and is widely used in material development, physical property testing, teaching and research and quality control.
Features
Measurement range 100kg, Precision +/- 0.1N, resolution up to 1/200000
2. Test speed range 0~ 500mm/min, Effective Travel 700mm, Test space 100mm
3. Support multiple force units (kgf, gf, N, kN, lbf) and stress units (MPa, kPa, kgf/cm2, lbf/in2)
4. With upper and lower limit safety settings and test piece breakpoint sensing stop mode
5. Equipped with a micro printer to output results
6. Power system with variable speed motor
7. Optional conventional tensile fixture
8. Machine weight 80kg, power requirements 1PH, AC220V, 50/60Hz
Principle
Single-column Universal Testing Machine drives the mechanical afterburner system through a speed-regulating motor, applies loads such as stretching and compression to the sample, and uses the High Accuracy Force Value Sensor to measure the mechanical properties of the material during the stress process. The device automatically stops by setting the upper and lower safety limits and the breakpoint sensing of the specimen, and outputs the test results through the micro-printer.
Applications
Material development, physical property testing, teaching and research, quality control
Steps
1. Connect the power supply and turn on the device.
2. Install optional tensile fixtures and specimens
3. Test speed, force unit and stop mode
4. Start the test and monitor the test process
5. After the device automatically shuts down, output the result through the micro printer
6. Turn off the power and clean the device
