Overview

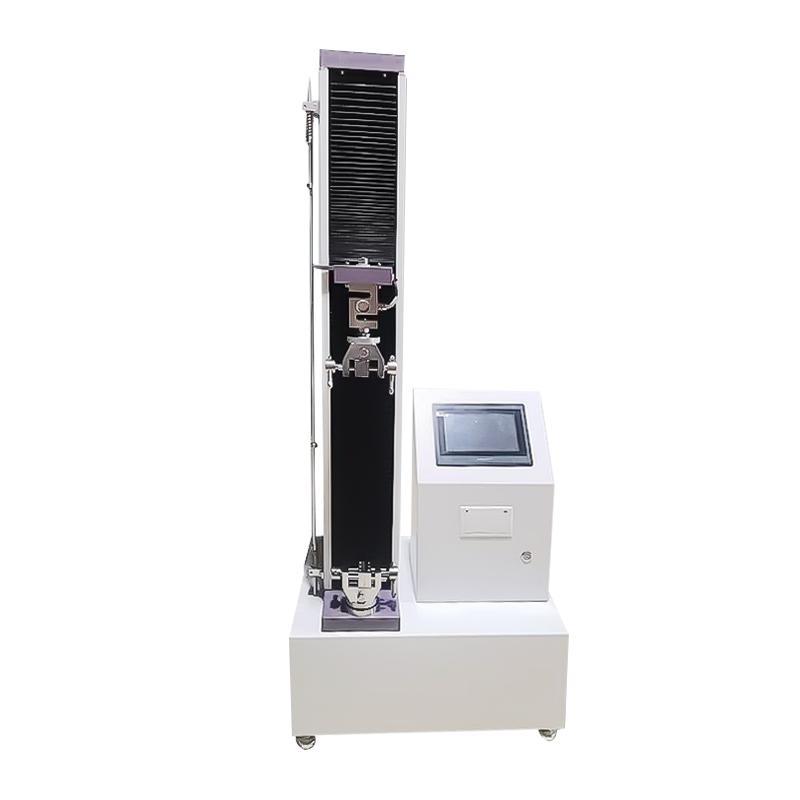

BaidaJUSHI LY-7012A 200KG Single Column Universal Testing Machine is a Universal Testing Machine used to test the mechanical properties of various materials such as static load, tensile, compression, bending, shearing, tearing, disbonding, etc. The equipment is suitable for physical and Mechanical Property Testing of Plastic Sheet, Tube, Profile, Plastic film, Rubber, Wire and cable, Steel, Fiberglass Dimension and other materials. It is a special testing equipment for material development, physical property testing, teaching research and quality control.
Features
Measurement range of 200kg, Precision of +/- 0.1N, Resolution of 1/200000 to ensure High Accuracy Testing.
2. Test speed range 0~ 500mm/min, effective Travel 700mm, Test space 100mm, adapt to a variety of test requirements.
3. Support a variety of force units (kgf, gf, N, kN, lbf) and stress units (MPa, kPa, kgf/cm2, lbf/in2), flexible conversion.
4. With upper and lower limit safety settings and test breakpoint sensing shutdown mode to ensure safe operation.
5. Equipped with a micro printer to output results for easy data recording.
6. Adopt speed regulating motor as Power system, stable operation.
7. Optional tensile fixture (conventional) to expand the application range.
8. Machine weight 80kg, power supply for 1PH, AC220V, 50/60Hz, easy to install and use.
Principle
Single-column Universal Testing Machine is powered by a speed-regulated motor, applying mechanical forces such as stretching and compression to the specimen, using High Accuracy Sensor measurement of force value changes, and realizing speed adjustment and safe shutdown through the Control system. The test results can be output through a micro-printer to analyze the mechanical properties of the material.
Applications
Material development, physical property testing, teaching and research, quality control
Steps
Connect the power supply (1PH, AC220V, 50/60Hz) to ensure that the device is powered on.
2. Install the optional tensile fixture or Miscellaneous fixture to fix the specimen.
3. Set the test parameters, such as force value unit, stress unit, Test speed (0~ 500mm/min) and stop mode (upper and lower limit safety setting or test piece breakpoint sensing).
4. Start the equipment and test the mechanical properties such as tensile and compression.
5. After the test is completed, output the results through the micro printer.
6. Turn off the power and clean the equipment.
Notice
• Check the power connection before operation to ensure compliance with 1PH, AC220V, 50/60Hz requirements.
• When installing the fixture, ensure that the sample is firmly fixed to avoid peeling during the test.
• Set the upper and lower limit safety parameters to prevent overload damage to the equipment.
• Pay attention to observe the status of the specimen during the test and deal with abnormalities in a timely manner.
• Maintain equipment regularly to maintain cleanliness and accuracy.
• Operate by professionals only and follow safety procedures.
