Overview

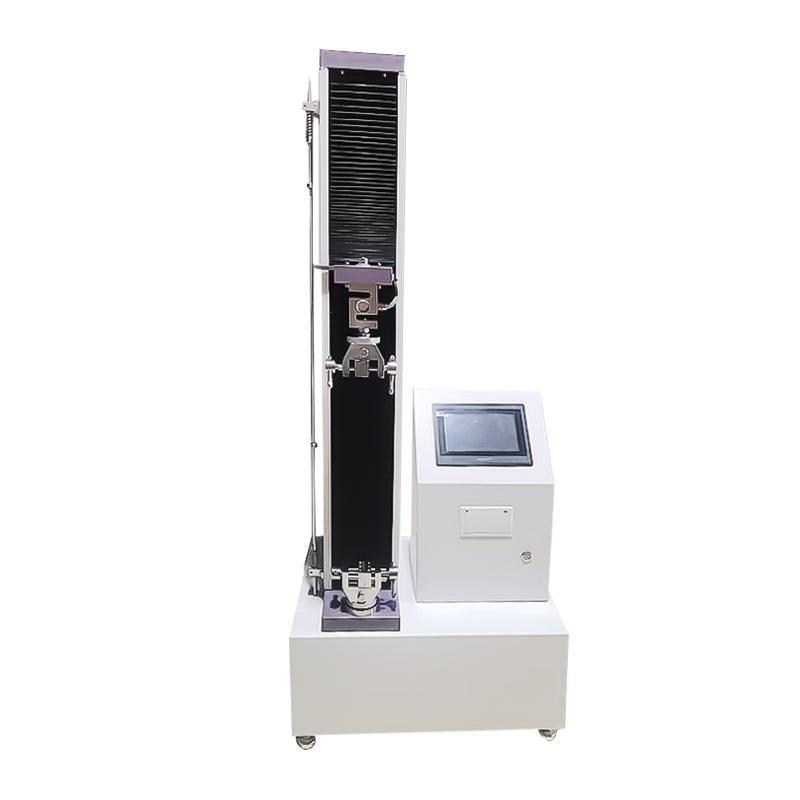

BaidaJUSHI LY-7012B 400KG Single Column Universal Testing Machine is a special equipment for material mechanical performance testing. The testing machine is suitable for static load, tensile, compression, bending, shearing, tearing, disbonding and other physical and Mechanical Property testing of plastic sheets, pipes, profiles, Plastic films and rubber, Wires and cables, steel, glass fibers and other materials. It is widely used in material development, physical property testing, teaching and research, quality control and other fields.
Features
1. Measurement range up to 400kg, Precision +/- 0.01N, Resolution 1/200000
2. Test speed range 0~ 500mm/min, effective Travel 700mm
3. Support multiple force units (kgf, gf, N, kN, lbf) and stress units (MPa, kPa, kgf/cm2, lbf/in2)
4. With upper and lower limit safety settings and test piece breakpoint sensing stop mode
5. Equipped with a micro printer to output results
6. Power system with variable speed motor
7. Optional conventional tensile fixture
Principle
Single-column Universal Testing Machine is driven by a variable-speed motor to apply mechanical force to the sample for tensile, compression and other tests. The system accurately measures the change of force value, and automatically stops when the preset upper and lower limit safety value is reached or the fracture of the specimen is detected, and outputs the test results through a micro-printer.
Applications
Material development, physical property testing, teaching and research, quality control
Steps
1. Connect the AC220V power supply
2. Install the optional tension fixture
3. Set test parameters (speed, force value units, etc.)
4. Place the specimen and fix it
5. Start the test program
6. The system automatically detects and stops
7. Output test results through a micro-printer
Notice
• Make sure the power supply is 1PH, AC220V, 50/60Hz
• Check the upper and lower limit safety settings before operation
• Pay attention to whether the breakpoint sensing function of the specimen is normal
• Regularly check the status of the machine (weight 80kg)
• Use the appropriate tensile fixture for testing
