Overview

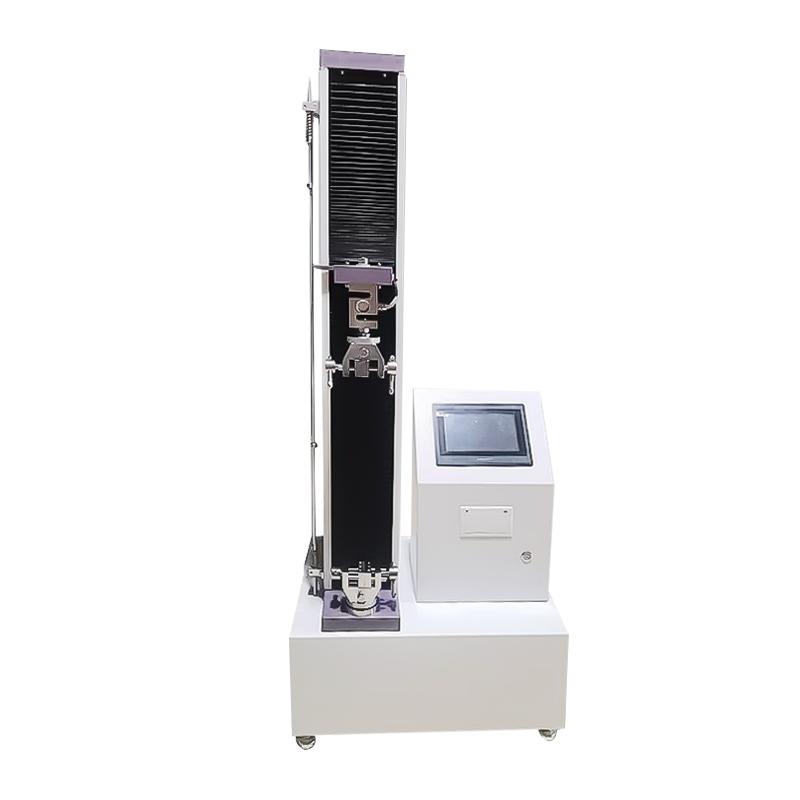

BaidaJUSHI LY-7012B 500KG Single Column Universal Testing Machine is a Universal Testing Machine for static load, tensile, compression, bending, shearing, tearing, disbonding and other mechanical properties of various materials. The equipment is suitable for physical and Mechanical Property Testing of Plastic Sheet, Pipe, Profile, Plastic film, Rubber, Wire and cable, Steel, Glass Fiber Dimension and other materials. It is a special testing equipment for material development, physical property testing, teaching research and quality control.
Features
Measurement range of 500kg, Precision of +/- 0.01N, Resolution of 1/200000 to ensure High Accuracy measurement.
2. Test speed range 0~ 500mm/min, effective Travel 700mm, Test space 100mm, adapt to a variety of test requirements.
3. Supports a variety of force units (kgf, gf, N, kN, lbf) and stress units (MPa, kPa, kgf/cm2, lbf/in2) for flexible application.
4. With upper and lower limit safety settings and test breakpoint sensing shutdown mode to ensure safe operation.
5. The result output is equipped with a micro printer for easy data recording.
6. Power system adopts variable speed motor, stable and reliable operation.
7. Optional tensile fixture (conventional) to enhance test adaptability.
8. Machine weight 80kg, power requirements 1PH, AC220V, 50/60Hz, easy to install and use.
Principle
Single-column Universal Testing Machine is driven by a variable-speed motor to apply mechanical force to the material for static load, tensile, compression, bending, shearing, tearing, disbonding and other tests. The force value Sensor accurately measures the applied force, and the data analysis system processes the force value information and outputs the result through the micro-printer to realize the quantitative analysis of the mechanical performance of the material.
Applications
Material development, physical property testing, teaching and research, quality control
Steps
Connect the power supply (1PH, AC220V, 50/60Hz) to ensure that the device is powered on.
2. Install the optional tensile fixture or Miscellaneous fixture to fix the specimen.
3. Set test parameters, such as force value unit, stress unit, Test speed, etc.
4. Set the upper and lower limit safety values and the breakpoint sensing conditions of the specimen.
5. Start the test, the equipment automatically applies force and performs measurement.
6. After the test is completed, output the results through the micro-printer.
7. Turn off the power and clean the equipment.
Notice
• Ensure that the power supply meets 1PH, AC220V, 50/60Hz requirements to avoid voltage mismatches.
• When installing fixtures and test pieces, pay attention to safety to prevent pinching or equipment damage.
• Regularly calibrate the Force Value Sensor to ensure measurement accuracy.
• Check the upper and lower limit safety settings before operation to prevent overload.
• Avoid touching moving parts during the test to ensure personal safety.
• Turn off the power supply in time after use to keep the equipment clean.
