Overview

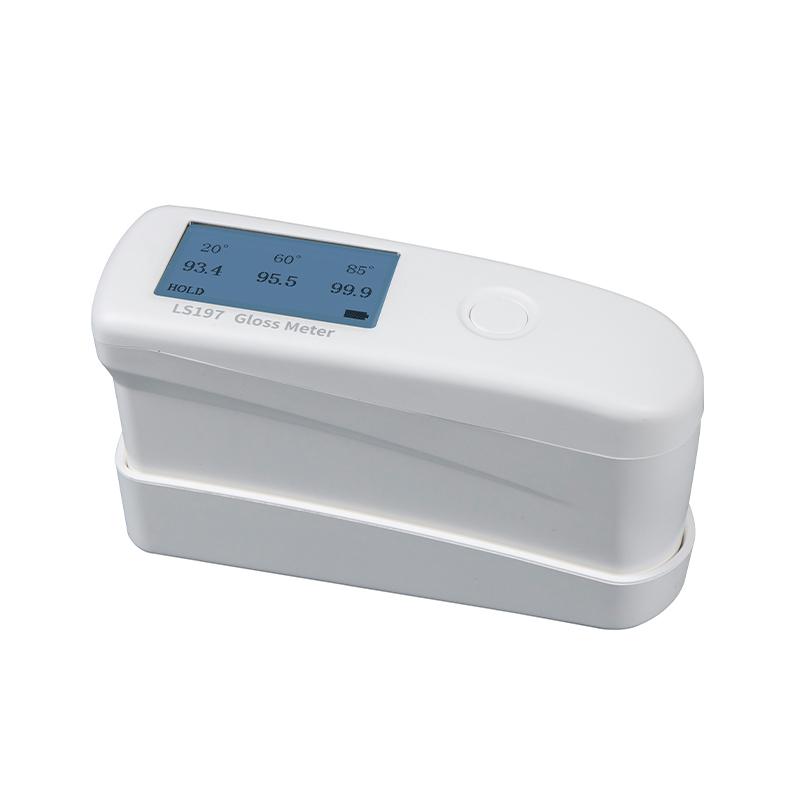

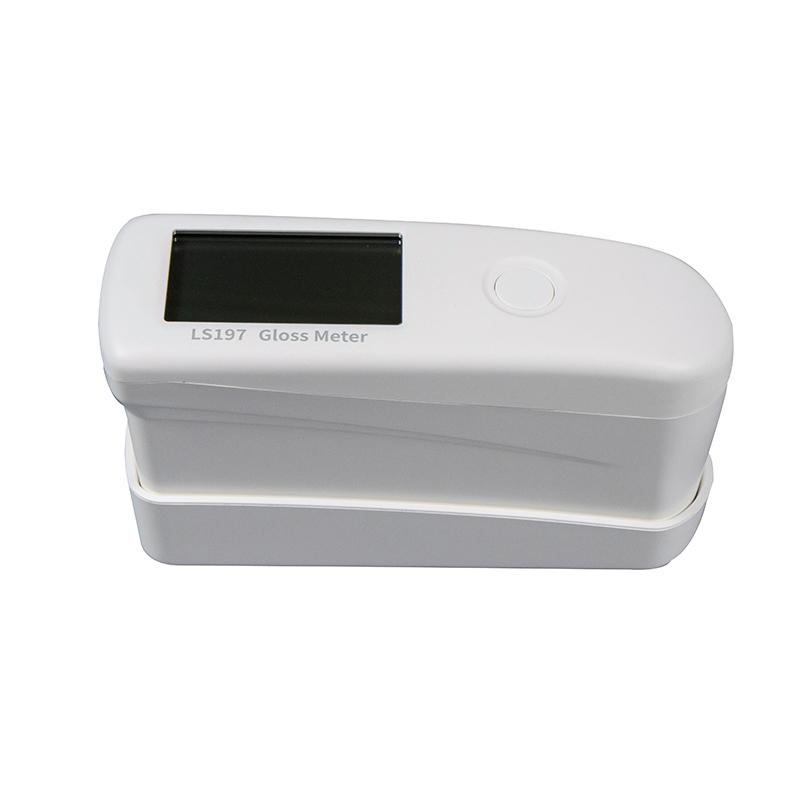

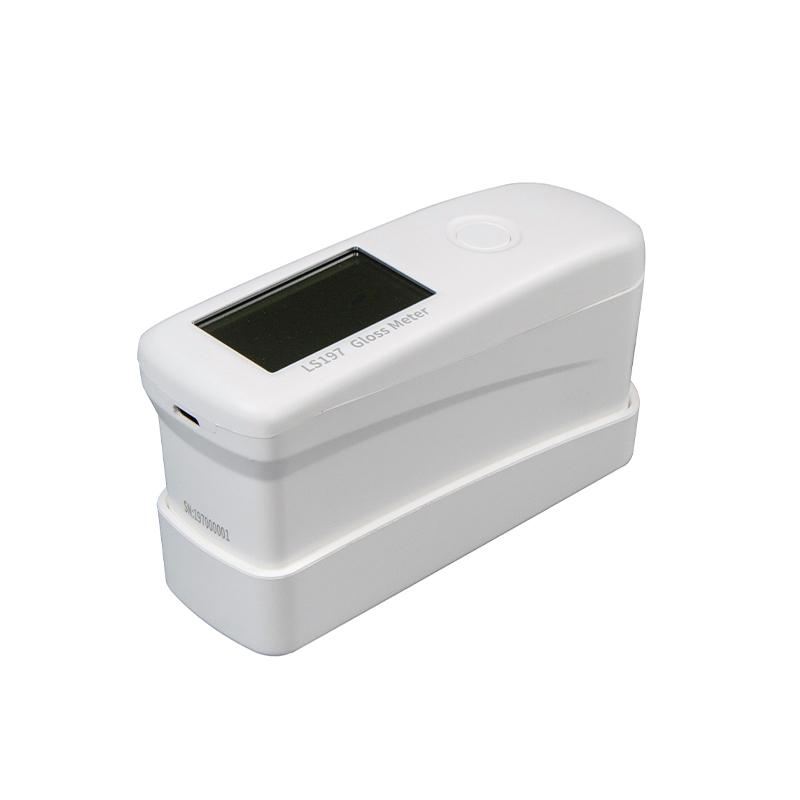

The LS197 is a multi-angle glossmeter with an ivory white engineering plastic shell, which is simple and elegant in design. The instrument is equipped with three Measurement Angles at 20 °, 60 ° and 85 °, which can simultaneously measure Glossiness at different angles. The range is up to 2000GU. It is suitable for high Glossiness and mirror reflection materials. Easy to operate, it can be measured immediately, no need to wait, and supports normal mode and QC mode. In QC mode, it can automatically determine whether the material Glossiness is qualified and improve the detection efficiency.
Features
1. Using 20 °, 60 °, 85 ° three-angle test design, Glossiness at different angles can be measured simultaneously, simplifying operation.
2. The range is up to 2000GU, which can measure high Glossiness and even mirror reflection materials to meet diverse needs.
3. Single angle, double angle or multi-angle measurement is freely matched, and the angle is optional.
4. Using D65 Illuminant, the Receiver Light spectrum Response Linear dispersion conforms to the Light spectrum visual function V (lambda) to ensure more accurate measurement of Color objects.
5. Imported chip and Sensor, with 50 point linear fitting algorithm, Repeatability up to +/- 0.2GU, resolution 0.1GU.
6. The full range accuracy meets the national first-class working machine standard, which can ensure that it has passed the national Measurement Institute test.
7. No need to press the button to operate after booting, it can be tested immediately.
8. Support QC mode, users can customize upper and lower limits for qualified judgment, suitable for batch testing.
9. Connectivity measurement is supported, and the computer can generate intelligent statistics and reports to enhance professionalism.
10. The fuselage adopts ivory white engineering plastic shell, humanized streamlined design, comfortable grip, and long-term measurement is effortless.
Principle
The LS197 glossmeter uses the multi-angle Optical inspection Measurement principle to emit D65 Illuminant at 20 °, 60 ° and 85 ° angles to illuminate the material surface. The receiver captures the reflected light intensity according to the Light spectrum Response Linear dispersion V (lambda) to calculate the Glossiness value. The instrument uses imported chips and Sensors, combined with a 50-point linear fitting algorithm to process the data to ensure measurement accuracy and Repeatability.
Applications
Coatings, paints, inks, plastics, tiles, paper, ceramics, Stones, metals
Standards
National level work machine standard
Steps

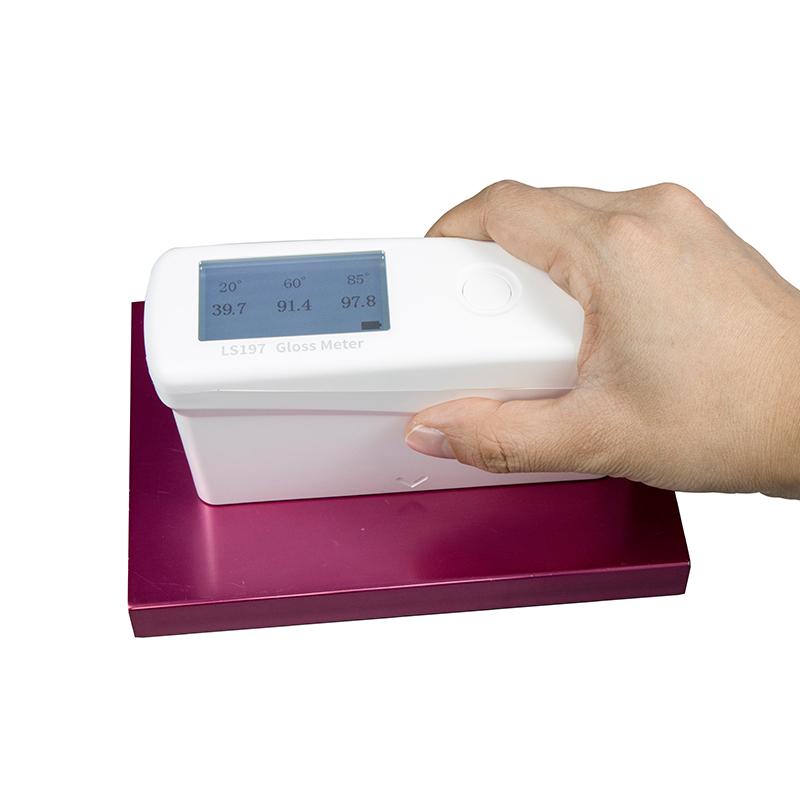

1. After starting the machine, there is no need to press the button to operate, and the instrument is placed on the surface of the material to be tested.
2. The instrument automatically measures Glossiness value, which is measured immediately.
3. In QC mode, you can customize the upper and lower limits for qualified judgment.
4. Connectivity measurement, connect computer for data statistics and report generation.
Notice
• Operating temperature in the range of 10~ 45 ℃, Humidity 0~ 85% RH and no condensation.
Storage temperature should be maintained at -10~ 60 ℃, Humidity 0~ 85% RH and no condensation.
The minimum size of the test object is 57mm * 10mm, please do not use it for smaller samples.
• Powered by a rechargeable lithium battery, charging via the USB (Type-C) interface.
• Avoid using or storing instruments in extreme environment conditions.
