Overview

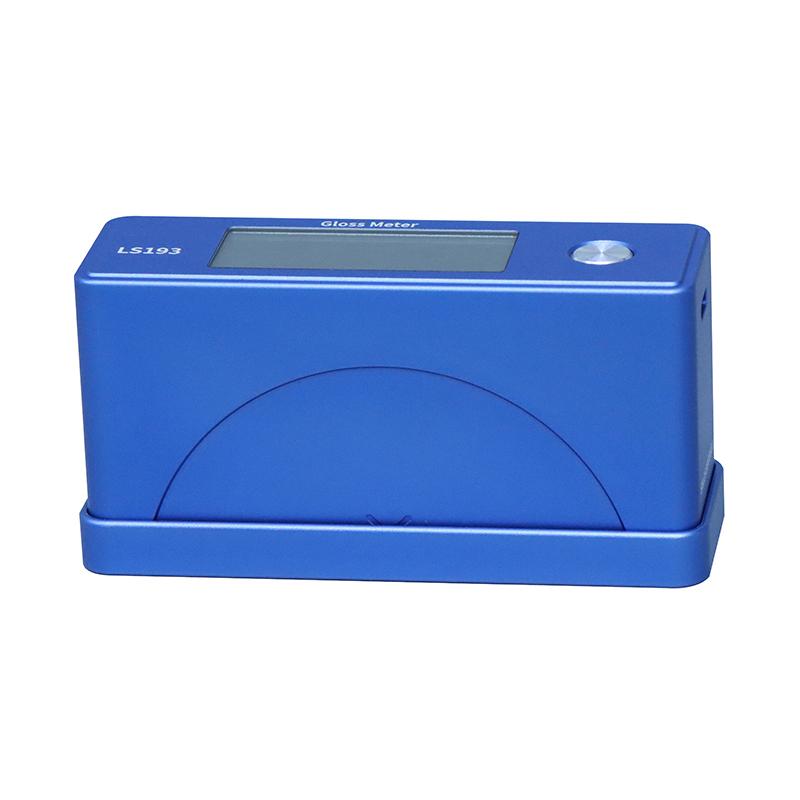

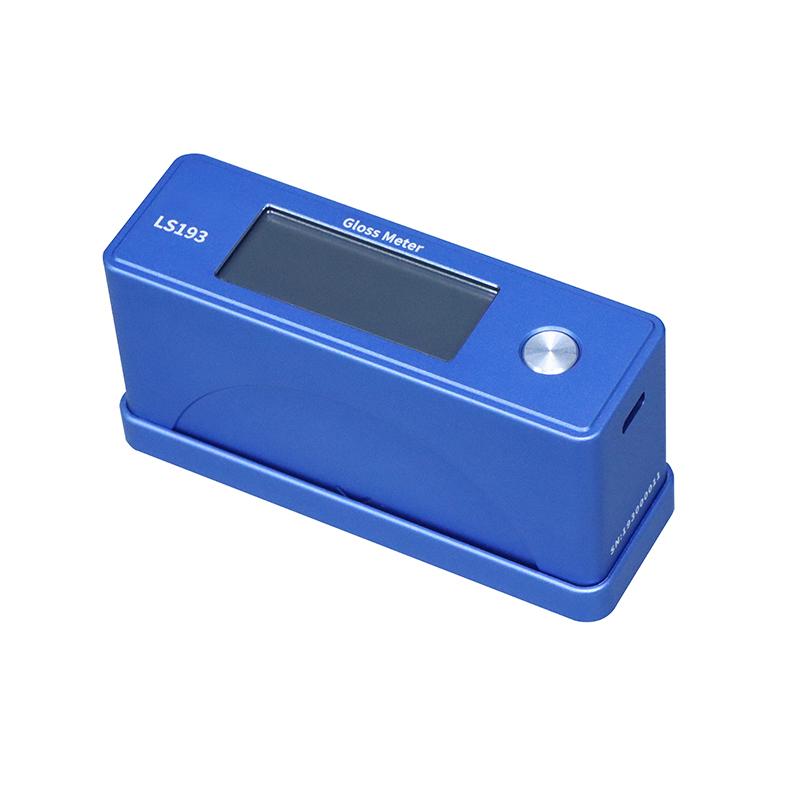

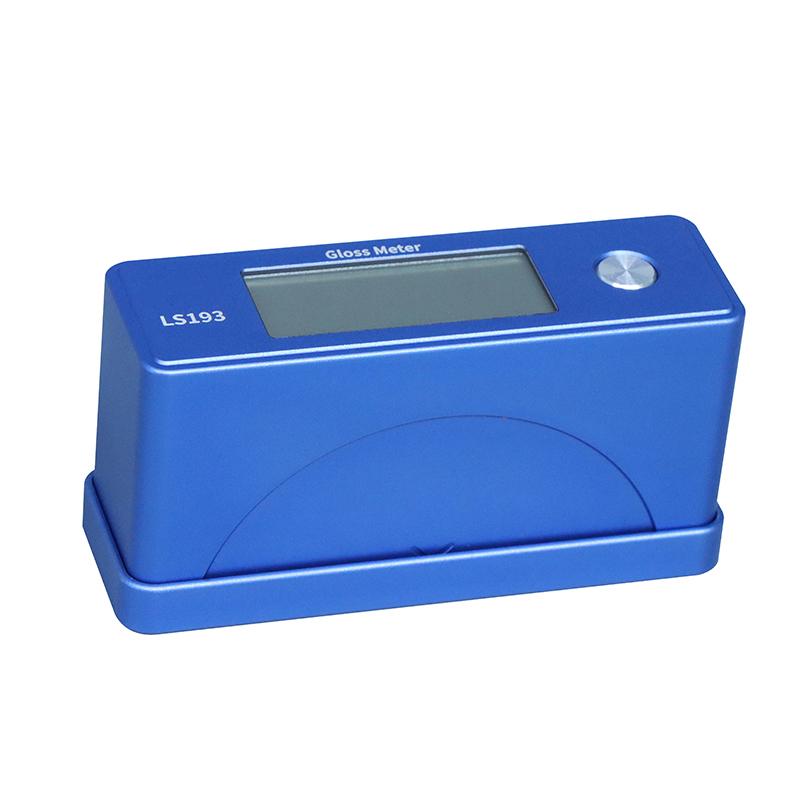

The LS193 is a small aperture Handheld glossmeter, which is specially used for gloss measurement of curved surfaces or ultra-small objects. It adopts a 60 ° universal angle design and has a maximum range of 1000GU. The instrument is easy to operate, and it can be measured immediately without pressing buttons. In addition to normal mode, the instrument can also be set to QC mode, which can realize QC rapid detection. The instrument is also equipped with powerful PC software, which can Connectivity measurement, intelligently count data and generate measurement reports.
Features
1. The measurement aperture of the instrument is only 3 * 6mm, suitable for surface or ultra-small object gloss measurement.
2. The instrument has Ambient Temperature Compensation, numerical stability, allowing long-period calibrating. Repeatability is very good, Repeatability up to +/- 0.2GU in the 0-100GU Measurement range; Repeatability up to +/- 0.2% in the 100-1000GU Measurement range.
3. The LS193 glossmeter can ensure that it passes any Measurement Institute test and meets the national JJG696-2002 first-class working machine standard, which is fully comparable to the imported glossmeter test data.
4. The instrument supports switching between normal mode and QC mode to adapt to different application scenarios. Normal mode is released and tested immediately, with fast reading without cumbersome operation; QC mode can customize the upper and lower limits, which can realize fast detection of incoming materials.
5. The instrument comes standard with a dedicated host computer software (only supports Windows systems), supports PC-side setting modes and upper and lower limits, and conducts Connectivity tests, and can generate test reports from the test data.

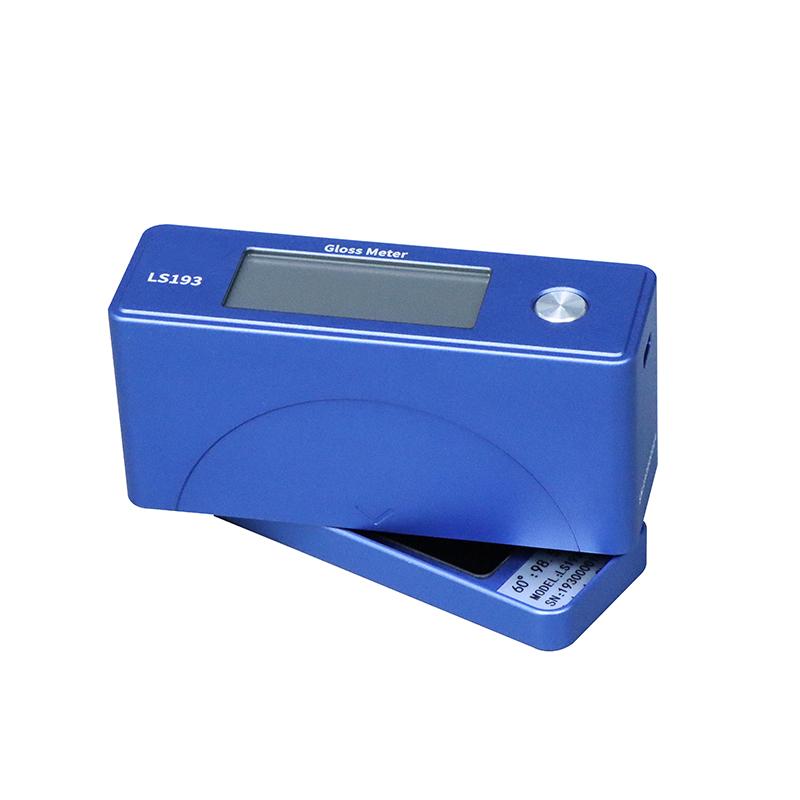

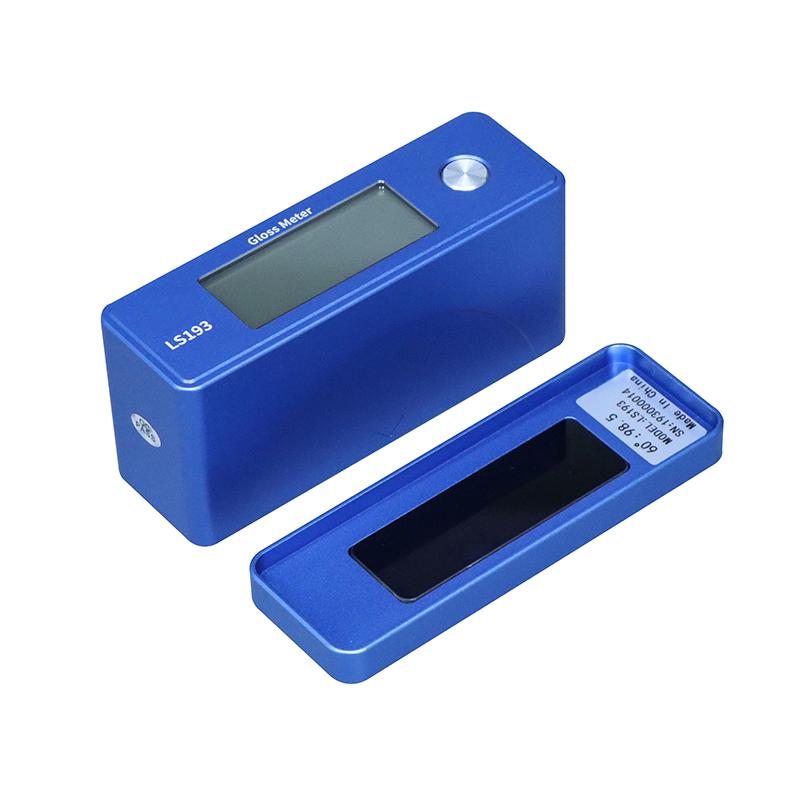

6. Adopt strong magnetic suction bottom cover design, two-in-one with Calibration plate, can be calibrated when turned on, no need to worry about Calibration plate loss.
7. The instrument has a built-in high-performance rechargeable lithium battery with ultra-low power consumption, which can last for more than 48 hours on a single charge.
8. The fuselage is thin, compact and portable, with an aviation aluminum shell, industrial style design, and excellent texture.
Principle
Adopt 60 ° Universal Angle Design, Measuring Area 1.5 * 3mm for Glossiness Detection of Object Surface, Combined with Ambient Temperature Compensation Technology to Ensure Numerical Stability and Repeatability.
Applications
Surface gloss measurement, ultra-small object gloss measurement, rapid detection of incoming materials
Standards
ISO2813, ISO7668, ASTM D523, ASTM D2457, DIN 67530, GB/T9754, GB/T13891, GB/T7706, GB/T8807, JJG 696-2002
Steps
1. Connect the computer via USB, you can use the glossmeter PC software. (PC software only supports Windows Operating system) This software can perform functions such as Connectivity measurement, parameter setting, report generation and printing.
2. It can be installed through the following channels:
1) In the product Encasement box, the included U disk is equipped with PC software, no need to install, just run it directly.
2) Download the software online to the local, and run it directly after decompression
Notice
• PC software only supports Windows Operating system
• Operating temperature: 10~ 45 ℃, 0~ 85% RH (no condensation)
Storage temperature: -10~ 60 ℃, 0~ 85% RH (no condensation)
