Overview

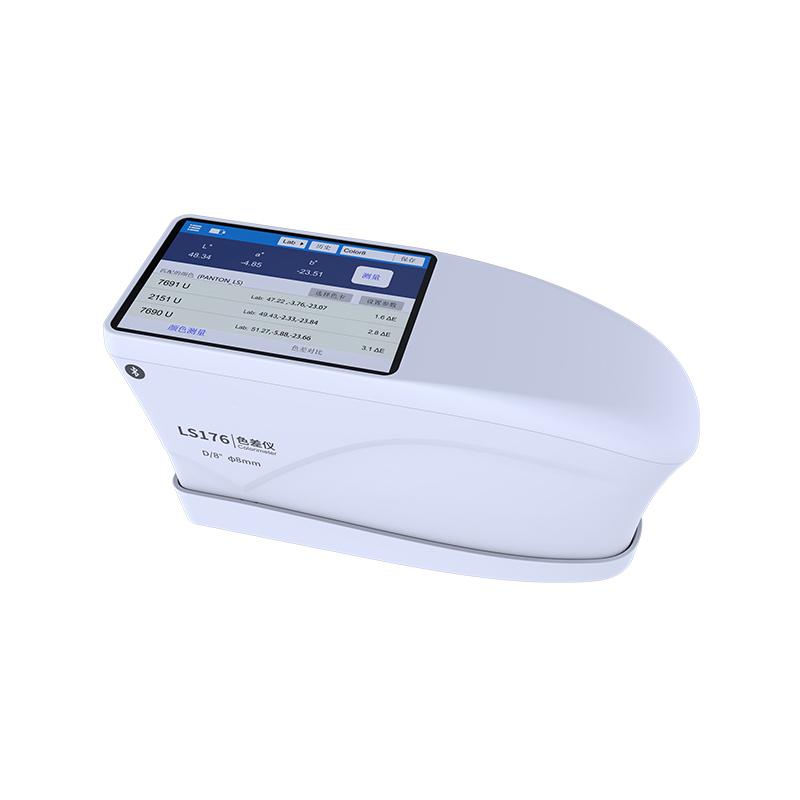

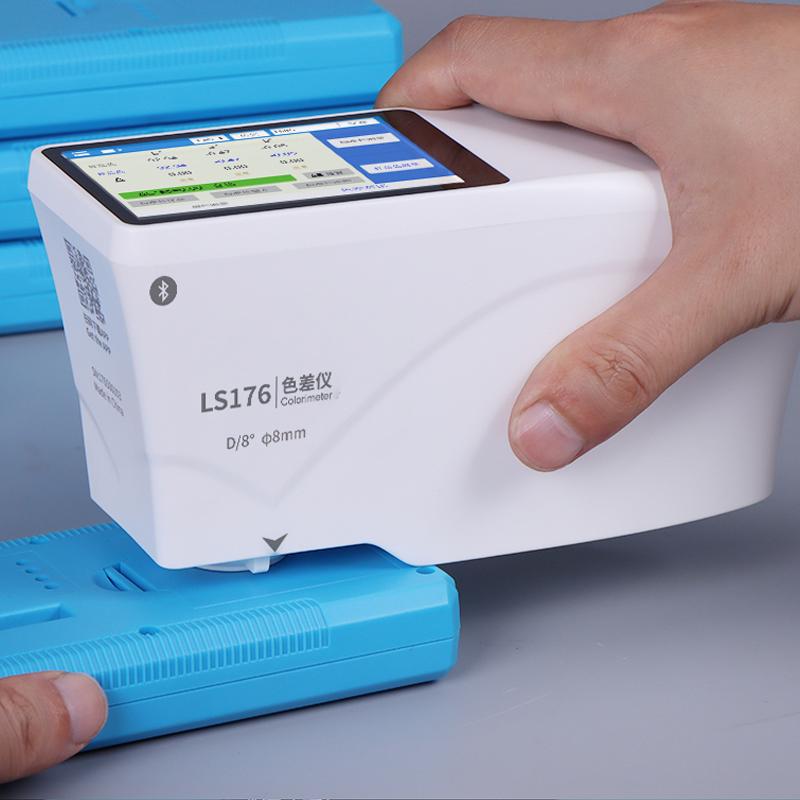

The LS176 is a Handheld multi-function color difference meter equipped with a 3.5-inch IPS color screen and a capacitive Touchscreen, providing a good operating experience. The instrument has multiple built-in color cards, which can quickly match the closest Color Chart number of the measurement Color, and has a color difference contrast function. It supports color difference threshold setting and a variety of Color difference formula selection, which is suitable for QC rapid detection.
Light spectrum LED Illuminant and Light spectrum Sensor design, D/8 lighting mode, Measurement accuracy, widely used in automotive paints, Hardware processing, Stone, decorative materials, plastic and other industries.
Features
1. Equipped with a reliable Light spectrum Sensor, intelligent algorithms analyze 8 bands of visible light to ensure accuracy
2. Full Band Balanced LED Illuminant to Avoid Lack of Light spectrum and More Accurate measurement
3. Adopt international general D/8 lighting, including specular reflection (SCI), for a wide range of applications
4. All indicators meet the requirements of the national JJG 595-2002 first-class machine
5. Can be connected to APP to realize Color Sharing
6. With PC software, with color difference statistical analysis function, support data import and export
7.3.5-Inch Capacitive Touchscreen, providing a good human-machine interaction interface
8. Contains multiple Electronic Color Charts, Color Chart matching accuracy is greater than 90%
9. QC Detection for Quick Evaluation of Color Precision
10. Multiple parameters can be measured, including CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex, Yellowness -98, whiteness -98, whiteness -Gauz, whiteness -Hunter, etc
11. Provide professional Light spectrum reflectance Linear dispersion to obtain Hue, Saturation and depth information of sample Color
Principle
The instrument is designed with Full Light spectrum LED Illuminant and Light spectrum Sensor, through D/8 illumination mode, including specular reflected light (SCI), intelligent algorithms analyze and process 8 bands of visible light to ensure measurement accuracy.
Use the built-in multi-color card and color difference comparison function to quickly match Color and evaluate color difference, support a variety of Color difference formulas, and achieve QC rapid detection.
Applications
Automotive paints, Hardware processing, Stone, Decoration materials, Plastics
Standards
GBT 3978-2008、GBT 3979-2008、GBT 7921-2008、GBT 11186.1-1989、GBT 11186.2-1989、GBT 11186.3-1989、JJG 595-2002
Steps
1. Preheating calibration instrument
2. Measurement mode and Color difference formula
3. Place the sample for measurement
4. View measurement results and Color Chart match
5. Use APP or PC software for data sharing and analysis
Notice
• Operating Temperature range 0~ 45 ℃, Humidity 0~ 85% RH (no condensation)
• Storage environment is -25~ 55 ℃, Humidity 0~ 85% RH (no condensation)
• Ensure that the battery is fully charged, and a single charge can make 10,000 consecutive measurements
• Keep the measurement diameter clean during measurement to avoid affecting the accuracy
• Preheat calibration before use to ensure Repeatability Standard Deviation Delta E * ab within 0.03
