Overview

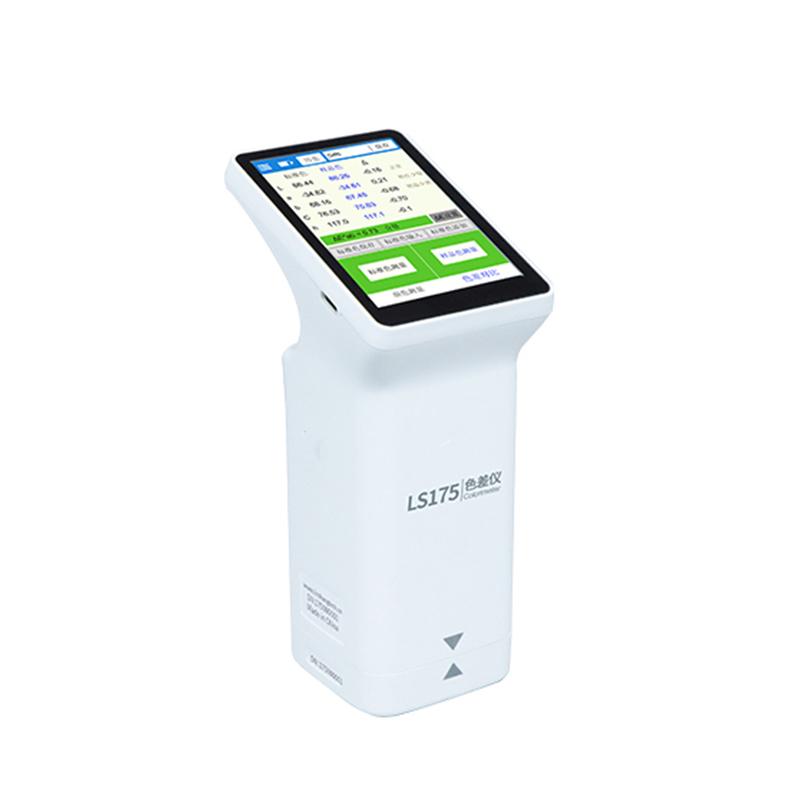

The LS175 is a Handheld large-diameter color difference meter designed with 45 °/0 ° Optical inspection geometry. It adopts a 20mm measurement diameter, which is very suitable for color difference comparison and Color measurement of textured or rough materials. Equipped with a 3.5-inch color large Touchscreen, the instrument can be used alone, and the operation experience is good. There are multiple standard Color Charts integrated inside, which can quickly match the color measurement to the closest Color Chart number.
LS175 is widely used, with a large measurement diameter of 20mm, a larger sampling light spot, and can measure a larger area of materials at one time. For the measurement of textured and rough objects, it can obtain more uniform Color data. At the same time, it is equipped with functional mobile end APP and PC software; it is usually used in product Color measurement and management, product color difference quality control, batch inspection of incoming materials in clothing fabrics, leather products, wood furniture, meat food and other industries.
Features
1. Large measurement diameter, texture material measurement is more accurate

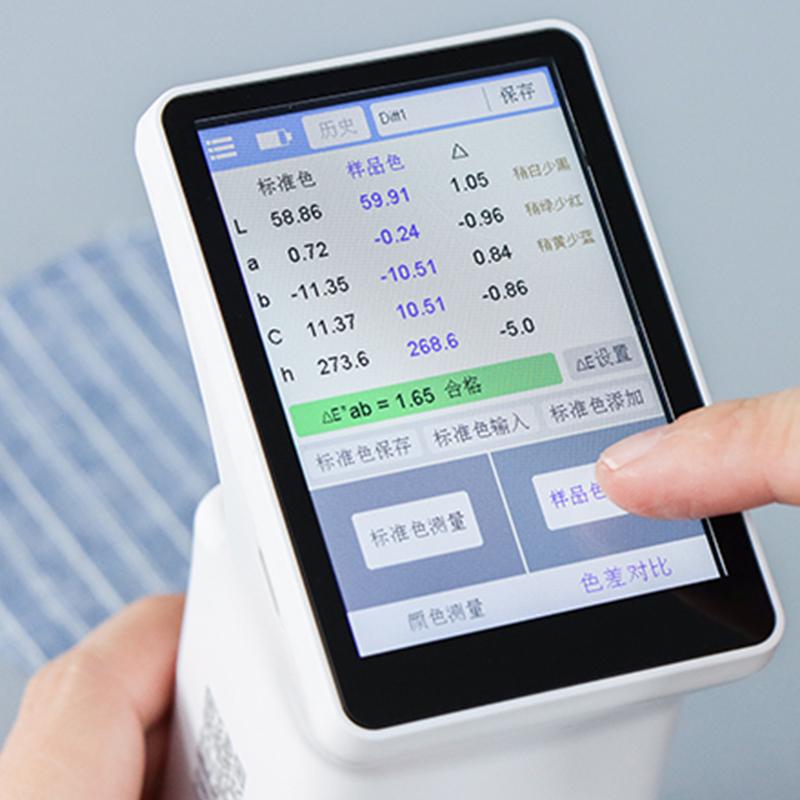

2. Large Touchscreen, easy operation
3. One second fast measurement, intelligent matching Color Chart number
4. Mass storage, self-built Color Chart library
5. Lab Color bias prompt, auxiliary color matching
6. No real object can also be compared with color difference
7. QC detection function, ultra-high quality control
8. Repeatability ≤ E * ab ≤ 0.03, in line with the national first-class color difference meter standard
9. Equipped with mobile end and PC end software
10. Support Multi-channel Color Sharing and Export
11. Color spaces and Color difference formulas
12. Light spectrum reflectance Linear dispersion

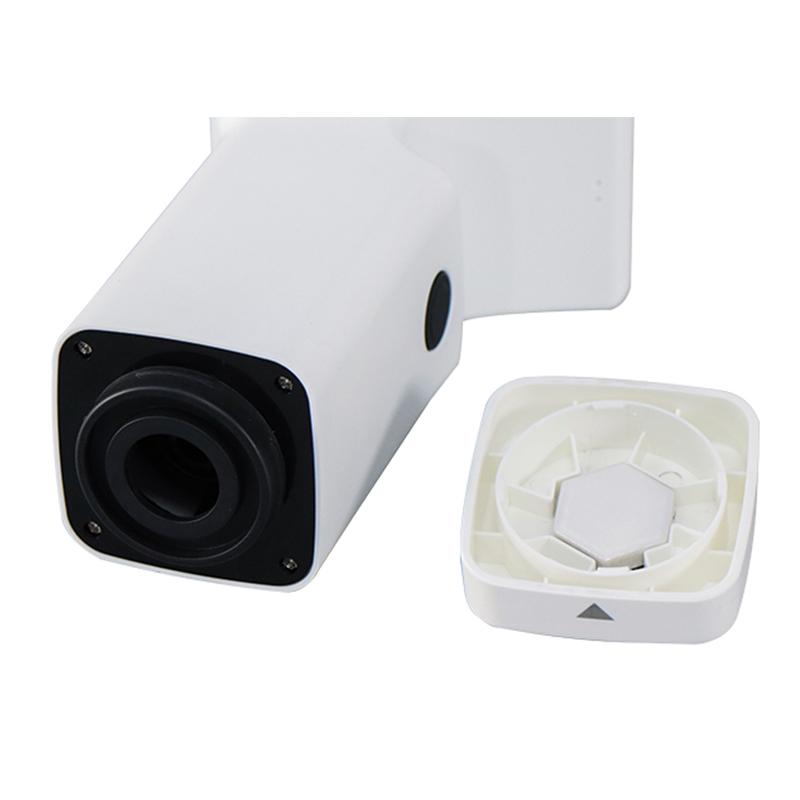

13. Equipped with measurement positioning plate, more accurate data
14. Whiteboard calibrated, easy to operate

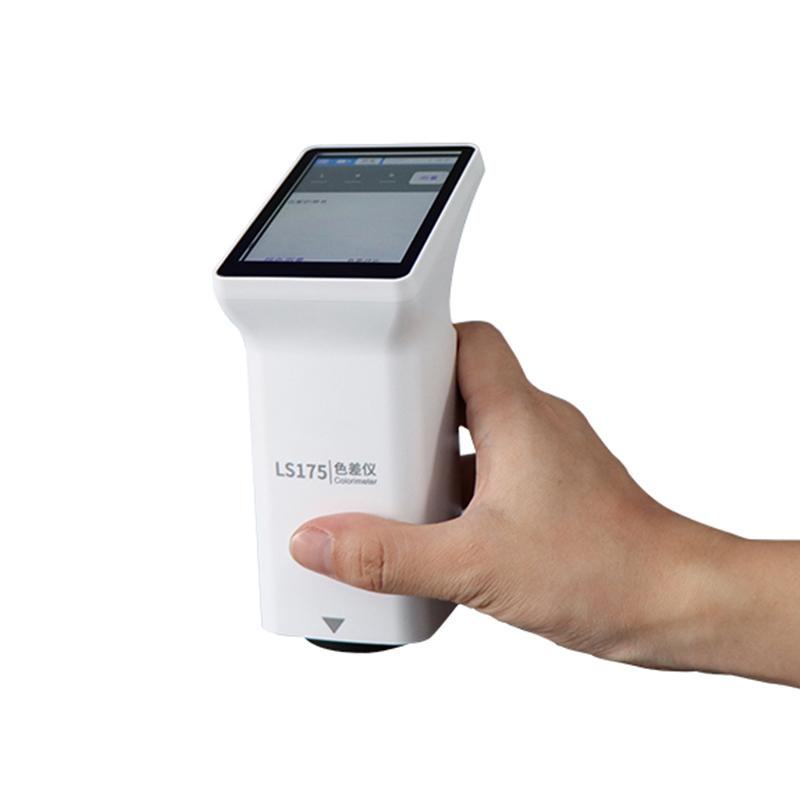

15. Ergonomic design for easy portability
16. Chip Scale Color Sensor, Full Light spectrum LED Illuminant
17.45/0 Ring Lighting
Principle
The LS175 color difference meter is designed with a 45 °/0 ° Optical inspection geometry, that is, a 45 ° annular illumination, 0 ° reception Measurement mode. The instrument uses a full Light spectrum LED Illuminant with a Wavelength range of 400-700nm. Light spectrum data of sample reflection is collected through a chip-scale color Sensor. Color measurement and analysis are performed under D65 Illuminant and 10 ° Field of View conditions.
Applications
Color measurement and management of products in clothing fabrics, leather products, wood furniture, meat food and other industries, product color difference quality control, batch inspection of incoming materials
Standards
JJG 595-2002 color difference meter verification procedures, GB/T 3978-2008 standard illuminator and Geometry conditions, GB/T 7921-2008 uniform color space and Color difference formula, GB/T 1186.1-1989 Measuring method of film Color Part 1: Principle, GB/T 1186.2-1989 Measuring method of film Color Part 2: Color measurement, GB/T 1186.3-1989 Measuring method of film Color Part 3 Color difference calculation, GB/T 19437-2004 Light spectrum measurement and chroma calculation of printing images, GB/T 19437-2004 T 39822-2021 Plastics, Determination of Yellow Index and its Variation, GB/T 17749-2008 Method for Representing Whiteness, ASTM E313-98 Standard Operating Practice for White and Yellow Index Measurement of Color Coordinates by Calculating Instruments
Steps
1. Whiteboard calibrated
2. Measurement mode and parameter selection
3. Align the instrument to the sample being tested
4. Press the measurement button for measurement
5. View measurement results and color difference data
6. Data management and sharing can be carried out by connecting mobile end APP or computer software through Bluetooth or USB
Notice
• Temperature range: 0~ 45 ℃, 0~ 85% RH (no condensation)
• Storage Temperature range: -25~ 55 ℃, 0~ 85% RH (no condensation)
• The whiteboard needs to be calibrated before use
• Ensure that the instrument is in close contact with the sample surface during measurement
• Avoid use in Humidity environments
• Regular charging to ensure battery performance
