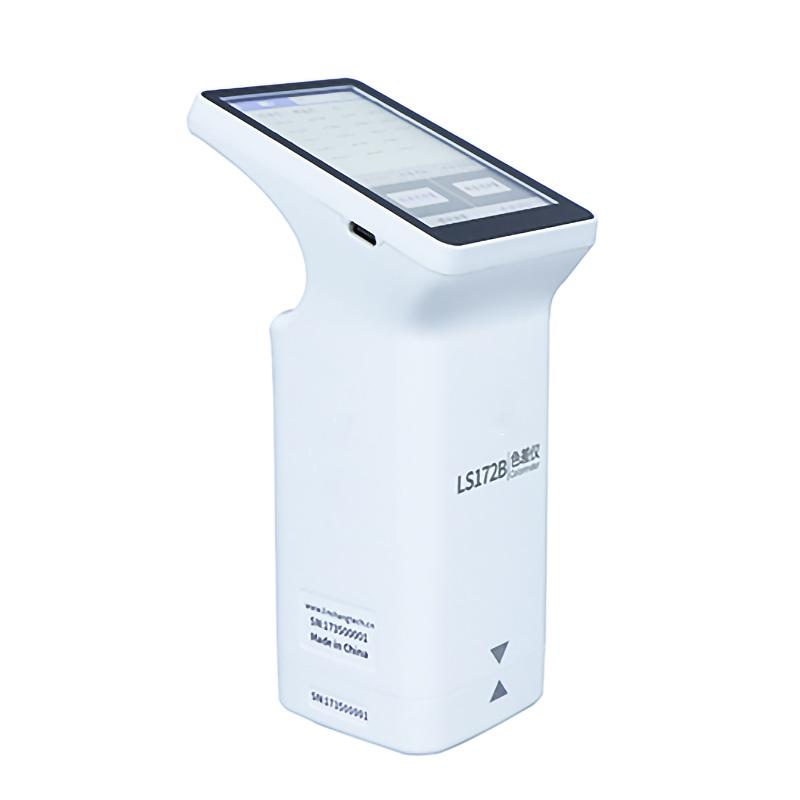

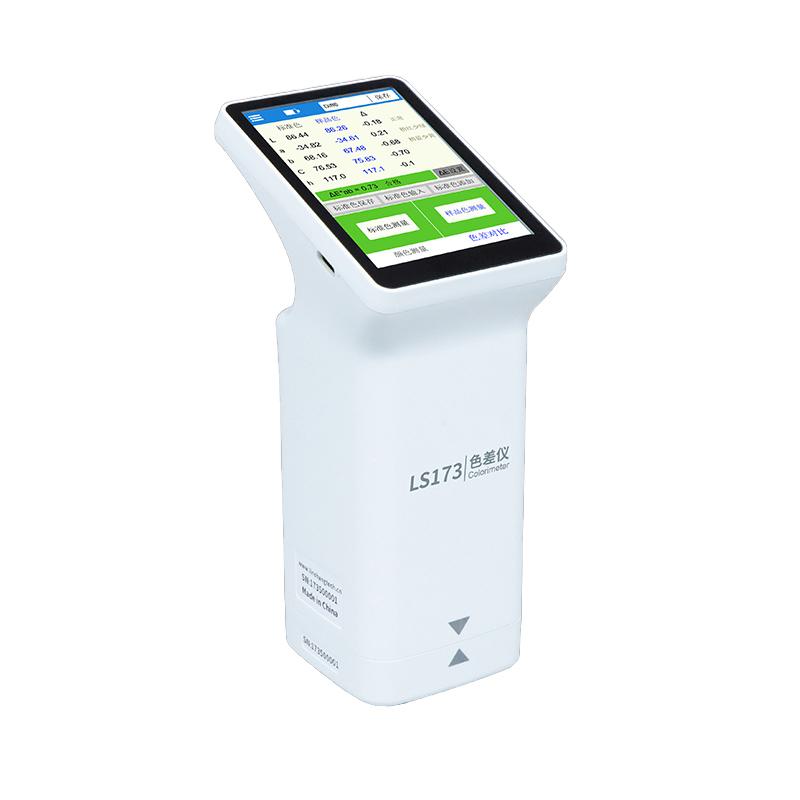

Overview

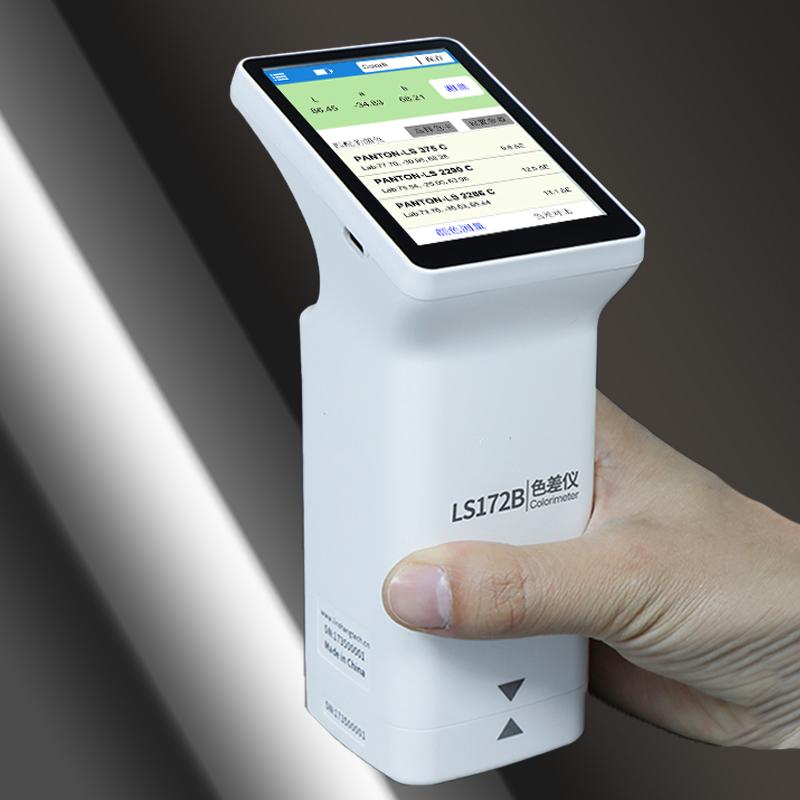

The LS173 is a Portable multi-function Handheld color difference meter with a 3.5-inch IPS color capacitive Touchscreen for good operation experience. The instrument has multiple built-in color cards, which can quickly match the measurement Color to the closest Color Chart number, and has the color difference contrast function. It supports a variety of standard color addition methods, can set the color difference threshold and flexibly select the Color difference formula to achieve rapid QC detection.
Features
1.3.5-Inch Touchscreen for easier operation

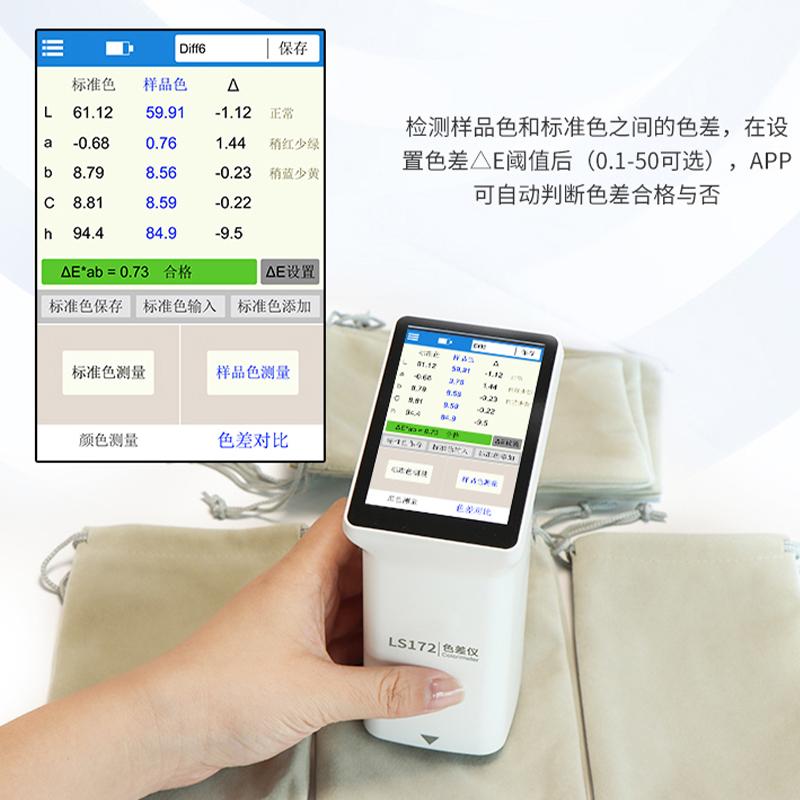

2. Color measurement and color difference comparison function
3. Built-in Multiple Electronic Color Charts
4. Lab Color Bias Tips
5. Mass storage, can be entered into industry-specific Color Charts
6. No real object can also be compared with color difference

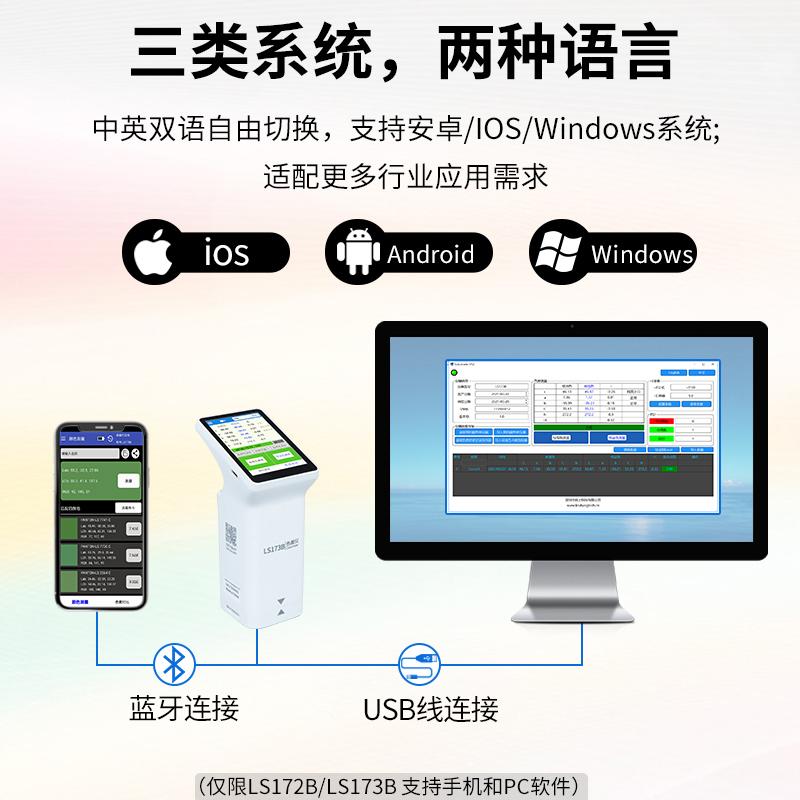

7. Multi-channel Color Sharing
8. QC detection function to improve product conformity
9. Repeatability Delta E * ab ≤ 0.03, Measurement accuracy 0.01
10. Color space and Color difference formula, suitable for different industry needs
11. Light spectrum reflectance Linear dispersion

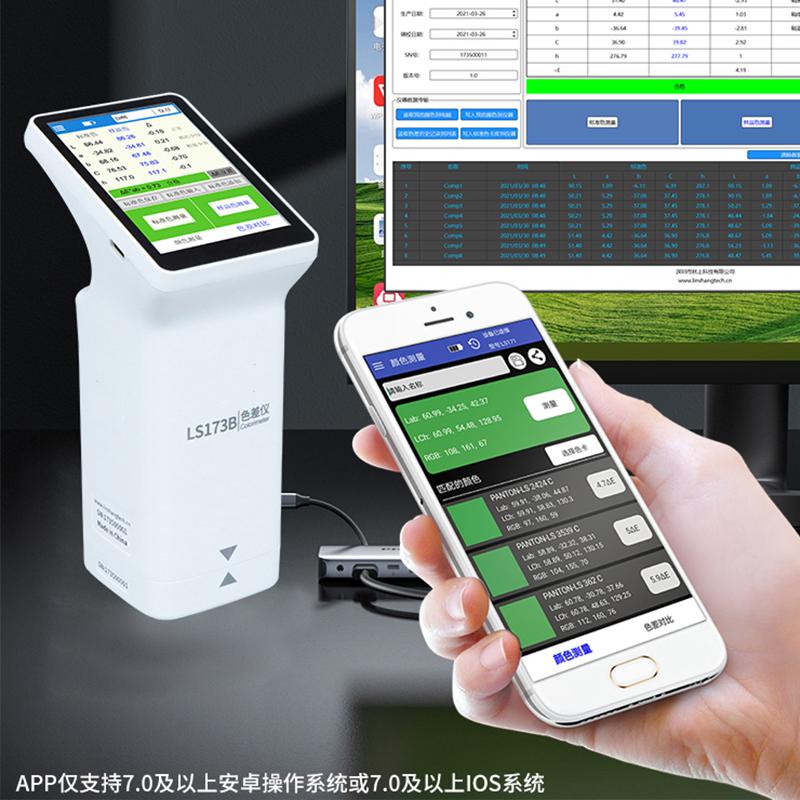

12. Powerful PC software
13. Equipped with measurement positioning plate, more accurate data
14. Whiteboard calibrated and easy to operate
15. The fuselage is stable and easy to carry
16. D/8 optical path structure
17. Light spectrum LED Illuminants
Principle
The LS173 uses a D/8 light path structure, including specular reflection (SCI), using a full-light spectrum LED Illuminant, with a Wavelength range of 400-700nm and a interval of 10nm. Color measurement is performed based on standard illuminator D65 and 10 ° field of view conditions, and various Color spaces and Color difference formulas are calculated through built-in algorithms to achieve Color matching and color difference contrast.
Applications
Color measurement, color difference comparison, QC detection, Color matching
Standards
JJG 595-2002 color difference meter verification procedures, GB T 3978-2008 standard illuminators and Geometry conditions, GB T 7921-2008 uniform color space and Color difference formula, GB T 11186.1-1989 Measuring method of film Color Part 1: Principle, GB T 11186.2-1989 Measuring method of film Color Part 2: Color measurement, GB T 1186.3-1989 Measuring method of film Color Part 3 Color difference calculation, GB/T 39822-2021 Plastics, determination of yellow index and its change value, GB/T 17749-2008 Representation method of whiteness, ASTM E313-98 Standard operating procedure for calculating instruments for white and yellow indices of measurement Color coordinates
Steps
1. Preheating calibration instrument
Step 2 Use a whiteboard to calibrate
3. Measurement mode and parameter selection
4. Color measurement or color difference comparison
5. Review and analyze the resulting data
Notice
• Operating Temperature range 0~ 45 ℃, Humidity 0~ 85% RH (no condensation)
• Storage Temperature range -25~ 55 ℃, Humidity 0~ 85% RH (no condensation)
• Ensure that the battery is fully charged, and a single charge can make 10,000 consecutive measurements
• Use of measurement pads to improve data accuracy
• Avoid Operating or Storing Instruments in Extreme Temperature and Humidity Conditions
