Overview
LS171 is a Portable China color difference meter, which is widely used in car paint lame plating, plastic metal, Hardware, furniture design, paints Coating, plastic, rubber and other fields. The instrument can collect Color anytime and anywhere, and realize color difference comparison in two simple steps. It has the characteristics of outstanding comprehensive functions and high cost performance. As a new color measurement and color difference contrast tool, using D/8 Optical inspection structure and High Accuracy Sensor, with good conformity and Repeatability, with mobile app for accurate Color measurement and quality control, suitable for plastics, paints, printing, ceramics, Spinning & weaving, automotive and other industries.
Features
1. The color difference contrast has the QC detection function, and the color difference threshold can be customized to determine the qualification

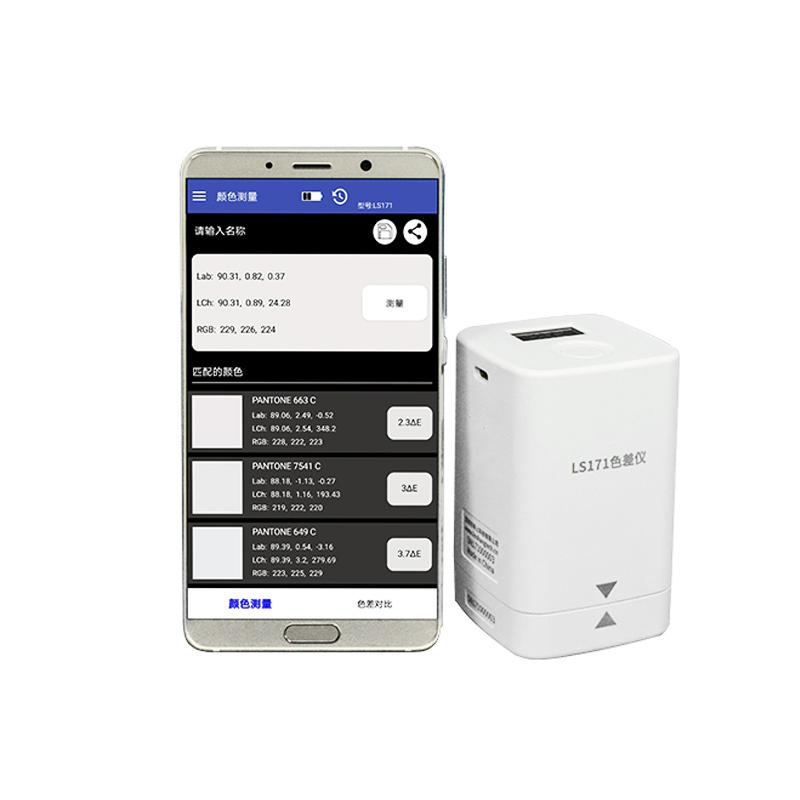

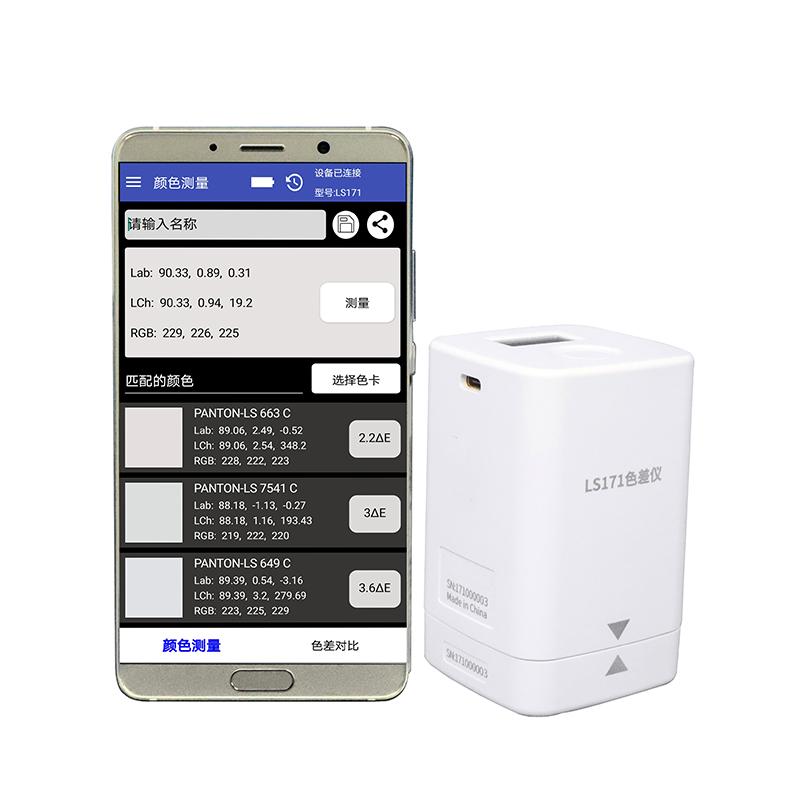

2. Collect Color anytime, anywhere, intelligently match multiple standard Color Charts, the matching accuracy is greater than 90%, and the APP interface directly restores Color
3. Create a Personal Color Chart Library to Store Massive Color Data
4. Support import and export Color data, and realize multi-person data sharing through QQ, WeChat, mailbox, etc
5. Provide 7 Color Spaces and 6 Color difference formulas to meet the needs of different industries
6. Compact size can be held in one hand, the fuselage is stable, and the measurement is convenient

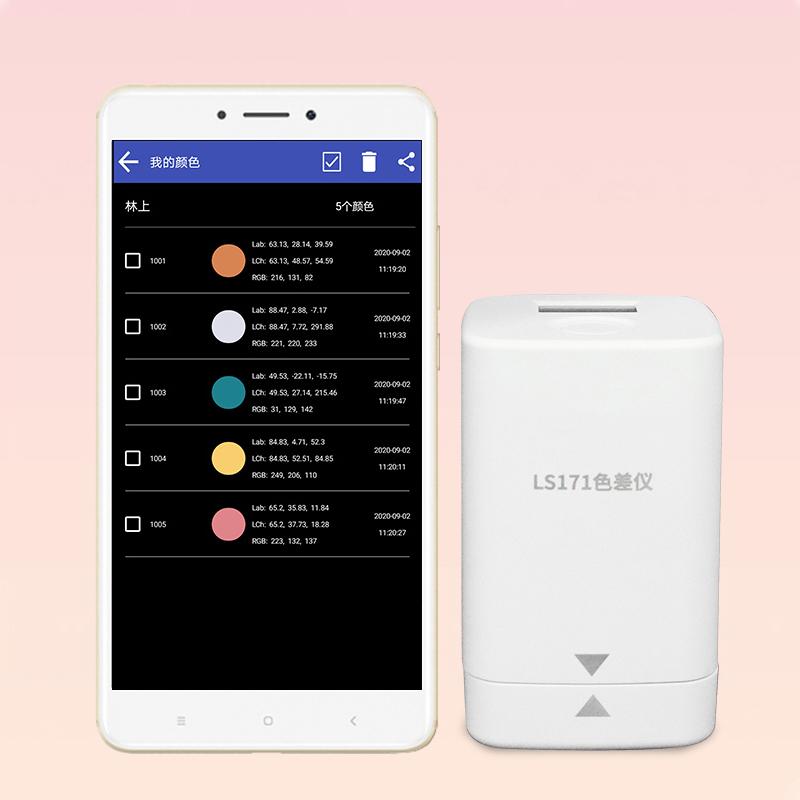

7. With OLED screen, it can be used alone or with Chinese and English bilingual mobile apps, with more powerful functions
8. Built-in lithium battery, safe and convenient to use, full power can be continuously measured 10000 times
9. Focus on Color acquisition and color difference detection, Repeatability Delta E * ab is not higher than 0.03
10. No need for cumbersome black and white plate calibrating, built-in compensation light path, stable measurement data, no need for frequent calibrating
Principle
The instrument adopts D/8 Optical inspection structure, is equipped with CIE standard High Accuracy Sensor, and performs Color data collection and color difference calculation under standard measurement conditions through full Light spectrum LED Illuminant lighting.
Applications
Car lame plating, Plastic metal, Hardware, Furniture design, paints Coatings, Plastics, Rubber, Plastic, Printing, Ceramics, Spinning & weaving, Automotive
Standards
GBT 3978-2008、GBT 3979-2008、GBT 7921-2008、GBT 11186.1-1989、GBT 11186.2-1989、GBT 11186.3-1989、JJG 595-2002
Steps

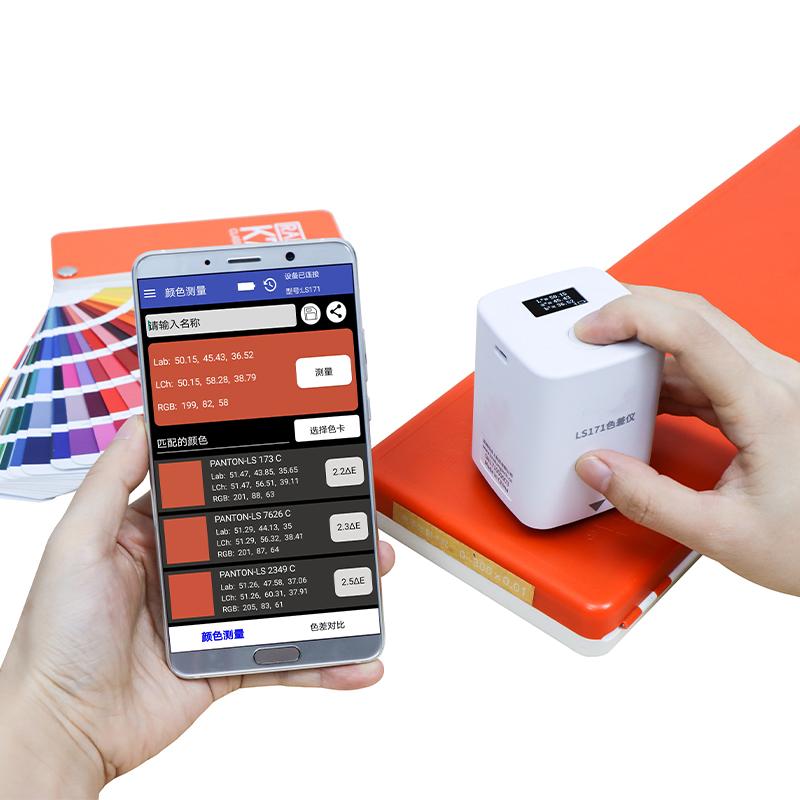

1. Color capture anytime, anywhere
2. Simple two steps to achieve color difference contrast
Notice
• Operating environment is 0~ 45 ℃, 0~ 85% RH (no condensation)
Storage environment is -25~ 55 ℃, 0~ 85% RH (no condensation)
