Overview

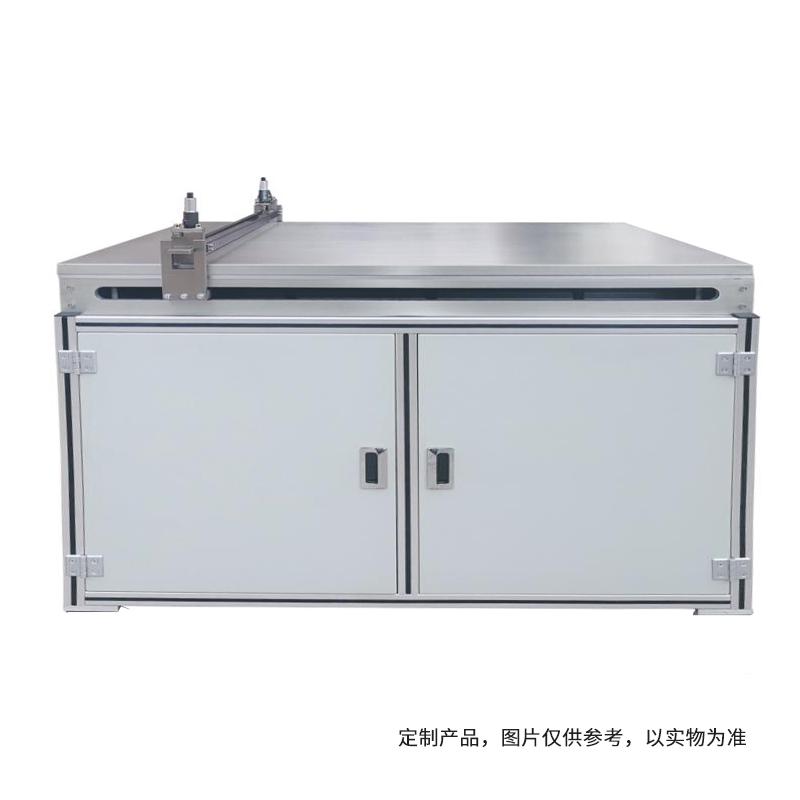

TBJ-B2-DJ15 Desktop Automatic Film Applicator is China heightening film equipment, using bar and adjustable drawdown blade two coating methods, custom Coating size 500 * 1000mm, film thickness range 0~ 10mm, suitable for Glass, tinplate, film cardboard and other substrate Spreader.
Features
1. Adopt bar and adjustable drawdown blade double coating method
2. Coating size 500 * 1000mm
3. The film thickness range is 0~ 10mm
4. Elevated design
5. Infinitely variable coating speed 5~ 180mm/s
6. drawdown blade lifting function
7. Optional automatic feeding, jet system device, UV solid content device
Principle
The equipment forms a uniform coating on the surface of the substrate through two coating methods of bar and adjustable drawdown blade, the drawdown blade can be lifted and lowered to adjust the thickness of the Spreader, and the infinitely variable speed is used to control the coating speed to ensure film accuracy and conformity.
Applications
Glass, tinplate, film cardboard and other substrate Spreaders
Standards
Host power supply 220V 50Hz
Steps
1. Prepare substrate and place on Glass Spreader
2. Select Bar or Blade Coating Method
3. Adjust Spreader Thickness and Rate Parameters
4. Start the device for Spreader operation
5. Remove the sample after completing the Spreader
Notice
• Spreader thickness range 0~ 10mm, please do not use beyond the range
• The coating speed range is 5~ 180mm/s, and less than 5mm/s needs to be customized
• Confirm that the power supply is 220V 50Hz before use
• Bar Spreader thickness should be determined according to bar model
• Regularly clean coating table and Spreader parts
