Overview

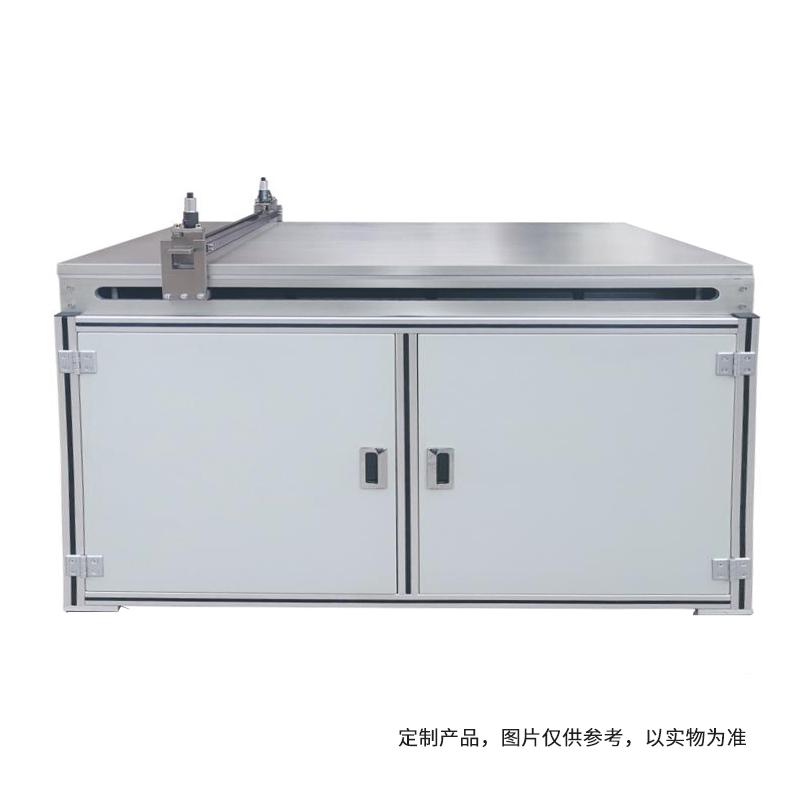

TBJ-B2-DJ16 Desktop Automatic Film Applicator is a China small Spreader device with an effective coating area of 250 * 1000mm and a drawdown Bar & Blade coating method. The device is designed for heightening, with a countertop height of 600mm. The Spreader baseplate adopts high flat Glass, which is suitable for film and thick film material Spreaders, and can be applied to Glass, tinplate, film cardboard and other substrates.
Features
1. Adopt bar + drawdown blade double coating method
2. The coating speed can be adjusted infinitely within the range of 5~ 180mm/s
3. drawdown blade can be lifted, Spreader thickness range 0~ 10mm
4. Spreader accuracy up to +/- 0.05mm
5. Support customized functions: automatic feeding, jet system device, UV solid inclusion device
6. Speed regulation accuracy up to 1mm/s
7. Desktop structure design, easy to operate
Principle
The Film Applicator realizes Material Spreader through the cooperation of bar and drawdown blade. The equipment adopts a stepless speed control system, which can precisely adjust the coating speed according to needs. The drawdown blade can be lifted and lowered to adjust the thickness of the Spreader, and the uniform Spreader process can be completed on a high flat Glass plate.
Applications
Glass Substrate Spreader, tinplate Spreader, film cardboard Spreader, film material Spreader, thick film material Spreader
Standards
Power standard: 220V 50Hz
Steps
1. Prepare Spreader Substrate and Place on Glass Spreader Table
2. Choose the right bar model according to your needs
3. Adjust drawdown blade height to desired Spreader thickness
4. Set coating speed parameters
5. Start the Device for Auto Spreader
6. Remove the sample after completing the Spreader
Notice
• Power supply voltage 220V 50Hz before use
• Spreader thickness should be determined according to the bar model
• The coating speed below 5mm/s needs to be customized
• Pay attention to the safety of equipment operation during operation
• Regularly clean the coating table to maintain Smoothness
• Customized functions need to be confirmed in advance
