Overview
HuiNuo SZQ-160 4-sided Applicator is an experimental film appliance with an accuracy of +/- 2 microns. It is made of high-carbon chromium wear-resistant stainless steel and has good corrosion resistance. The Applicator will perform accuracy testing before leaving the factory, using imported three-coordinate testing, and comes with factory test data reports, which can stand up to Measurement. It is suitable for Moulding proofing of samples in Resin, Coating, Glue, New material, Polymer materials and other fields. It supports non-standard customization, and can also be matched with the laboratory Automatic Film Applicator for automatic film.

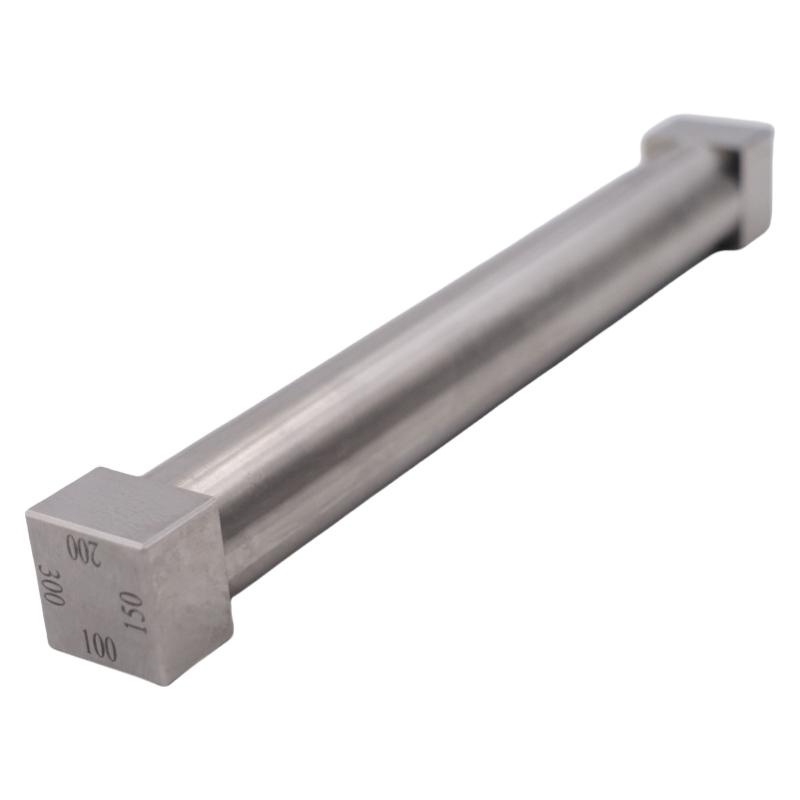

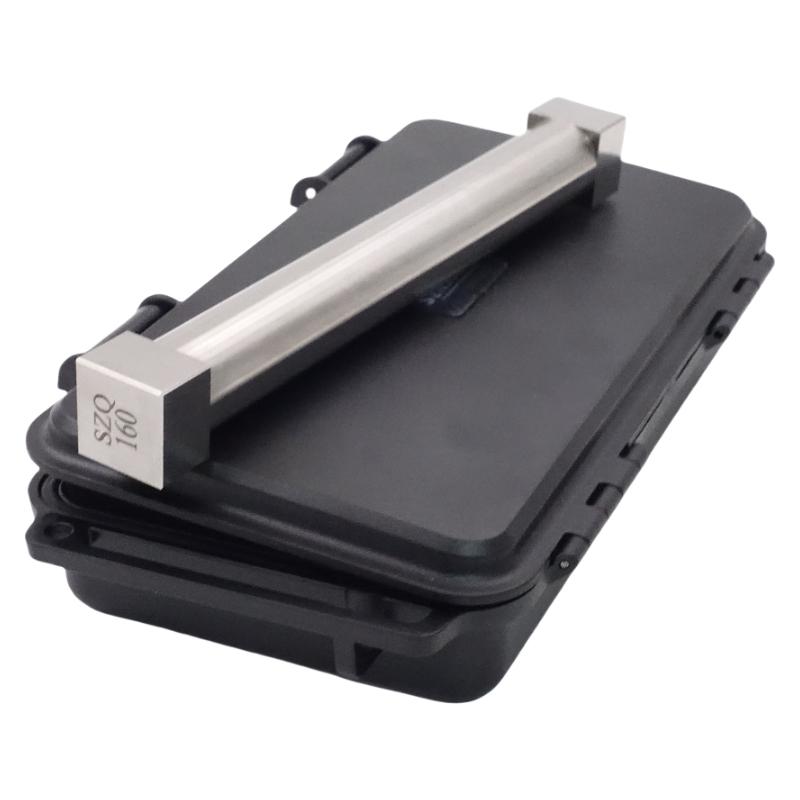

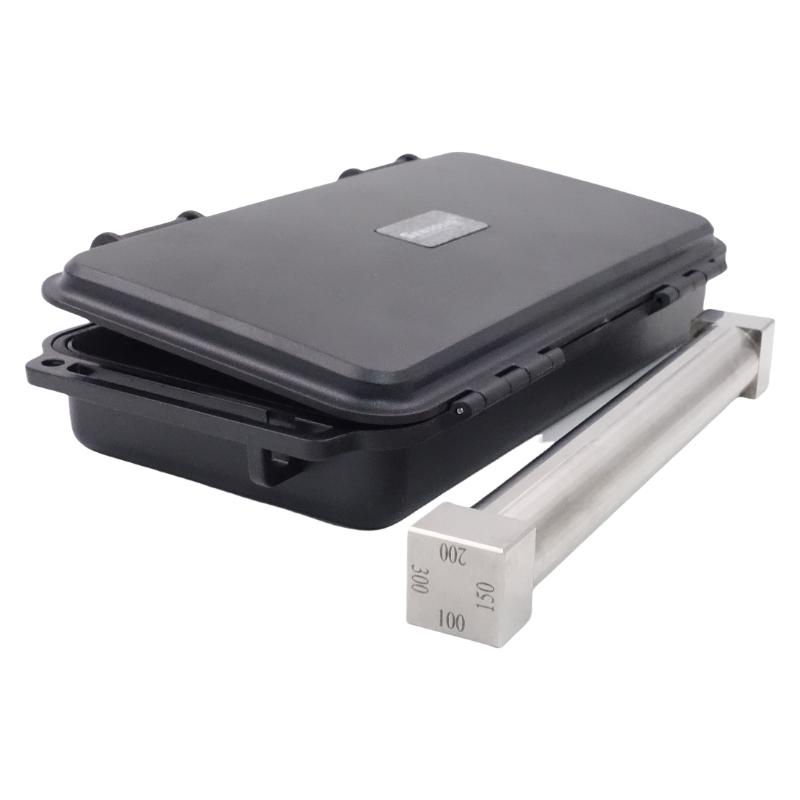

SZQ-160 100/200/300/400μm film thickness of 100μm, 200μm, 300μm, 400μm, application width 160mm, total length 190mm, is an extended type 4-sided Applicator.
Features
1. 9Cr18Mo high Hardness stainless steel material, with good Abrasion Resistance and corrosion resistance, Hardness value of 50~ 55HRC.
The accuracy is up to +/- 2μm to ensure the accuracy of the experiment.
3. Smooth surface, diverse styles, wide range of applications, support for customized specifications.

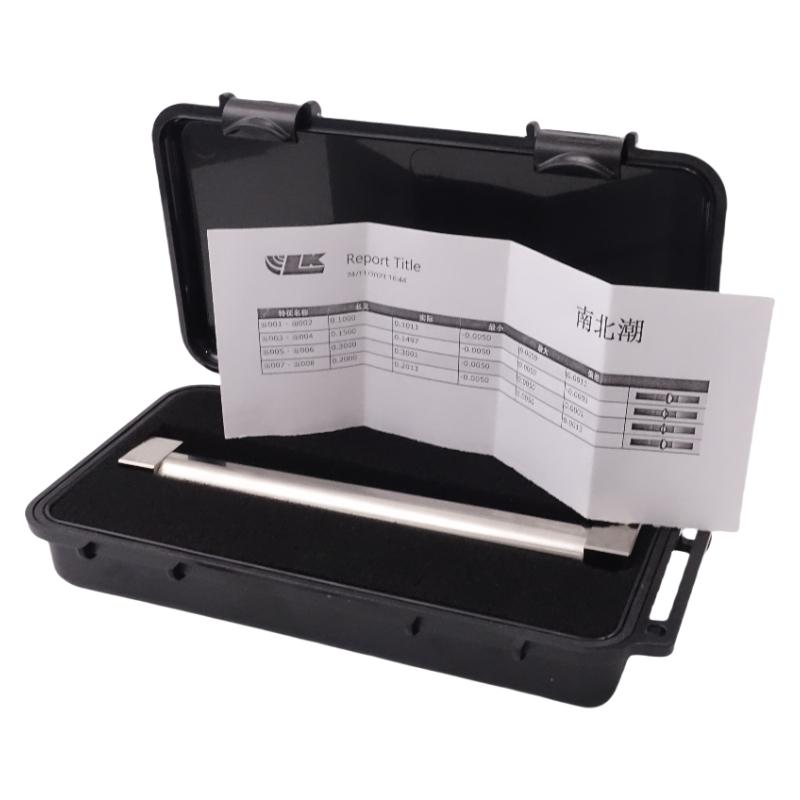

4. Adopt imported three-coordinate detection accuracy, with factory inspection report, can stand Measurement.
Principle
The 4-sided Film Applicator uses precisely designed wet film thickness and application width to uniformly Spreader material on the surface of the sample to form a wet-film of the specified thickness. Its High Accuracy structure and wear-resistant material ensure a stable and reliable film process, suitable for laboratory sample preparation.
Applications
Resin, Coating, Glue, New material, Polymer material
Steps
1. Prepare samples and film substrates.
2. Choose the 4-sided Applicator with the appropriate wet film thickness.
3. Place the Applicator on the substrate to unify the Spreader material.
4. Remove Applicator and check wet-film uniformity.
5. Clean Applicator for next use.
Notice
• Check that the Applicator surface is clean and free of damage before use.
• Spreader process to maintain uniform strength, to avoid uneven thickness.
• Clean in time after use to prevent material residues from affecting accuracy.
• Avoid collisions when storing and maintain a drying environment.
• Non-standard customization requires detailed specifications.
