Overview

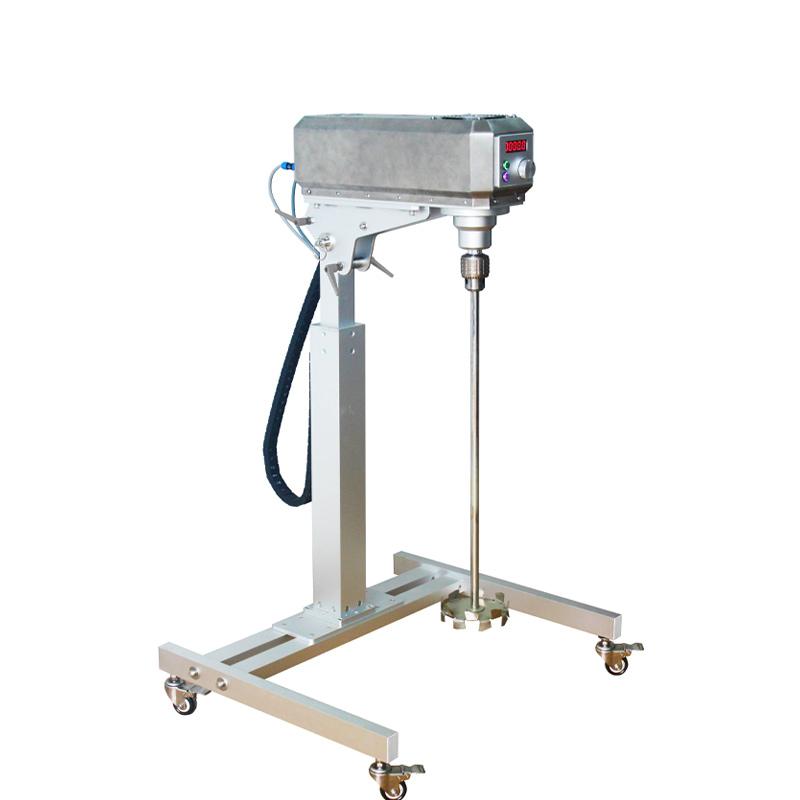

The AM800 electronic constant speed Stirrer is driven by a brushless DC servo motor, which is suitable for the pilot mixing and mixing of low to medium and high viscosity liquids in the laboratory. The machine has the characteristics of super torque output, low noise and maintenance-free operation at low speed. The stirring Rotation speed is controlled by a microprocessor, which can instantly and effectively compensate for the Rotation speed changes caused by load changes and Power supply voltage fluctuations, ensuring constant speed and reliability. Built-in automatic overload protection device ensures the safety of continuous operation of the experiment for a long time with high load; digital display of the actual output stirring Rotation speed ensures the intuitive collection of experimental data.
Features
1. Digital display function
2. Timing control function
3. Automatic lifting function
4. Super torque output at low speed
5. Low noise operation
6. Maintenance-free design
7. Rotation speed controlled by microprocessor
8. Automatic overload protection device
9. Constant speed and reliable operation
10. Suitable for high viscosity medium mixing
Principle
Rotation speed is controlled by microprocessor, which can instantly and effectively compensate for the change of Rotation speed caused by load change and Power supply voltage fluctuation to achieve constant speed stirring. Built-in automatic overload protection device ensures the safe operation of the equipment.
Applications
Laboratory, Biology, Physics, Molecular Science, Clinical New materials, New energy, Food, Cosmetics and other fields of teaching, research and production
Steps
1. Connect the power supply AC220V
2. Select the stirringrod and fix it to the quick turn chuck
3. Adjust the Rotation speed to the desired range (200~ 2000rpm) through the knob control mode
4. Set the timing function (if necessary)
5. Start Stirrer for experimental operation
6. Monitor actual Rotation speed of LED digital display
7. Turn off the power after the experiment
Notice
• Ambient Temperature must not exceed 40 ℃
• The relative humidity should not exceed 80%
• Power supply voltage is AC220V
• Stirringrod clamping range should be between 3~ 16mm
• Pay attention to the status of overload protection function
• Avoid long-term overload operation
• Regularly check the operating status of the equipment
