Overview

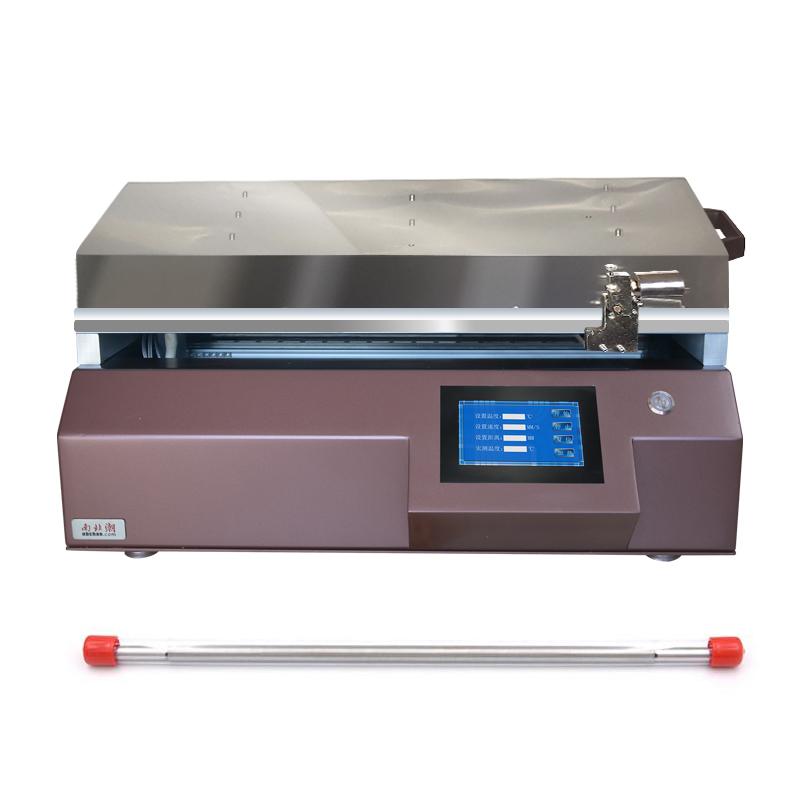

TBJ-X2-DJ18 Automatic Film Applicator is a laboratory Film Applicator for bar, detachable drawdown blade and Vacuum chuck. It has UV curing function and is equipped with detachable drawdown blade. The drawdown blade is easy to disassemble, clean and replace. It is suitable for UV glue, UV ink, etc. By controlling the speed and stable pressure to ensure the gluing effect of Spreader, the uniformity and smoothness of Spreader gluing are guaranteed, and the reproducibility of the film is greatly improved.
Features
1. Using imported accessories, the price is good and cheap
2. The coating method is bar + drawdown blade, the coating speed is 5~ 200mm/s (< 5mm/s can be customized)
3.The effective coating area 400 * 300mm (can be customized)
4. Spreader speed digital display, stepless variable speed control
5. Equipped with Vacuum chuck system, Vacuum Area 400 * 300mm (can be customized)
6. meyer rod coating accuracy +/- 0.001mm, Blade Coating accuracy +/- 0.003mm
7. With UV curing function, UV curing area 400 * 300mm
8. drawdown blade removable, easy to clean, easy to replace, drawdown blade can be lifted
Principle
The uniformity and smoothness of the Spreader coating are ensured by controlling the speed of the Spreader and the steady pressure applied to the Film Applicator. Vacuum chuck is used to fix the substrate, combined with bar or drawdown blade for Spreader, and UV curing system is equipped for coating curing treatment.
Applications
Laboratory film, UV Spreader, UV ink Spreader
Steps
1. Prepare the Spreader substrate and place it on the Spreader stage
2. Select bar or drawdown blade for installation
3. Set Spreader speed and parameters
4. Start the Vacuum chuck system to fix the substrate
5. Spreader operation
6. For curing, start the UV curing system
Notice
• Before Spreader, make sure that the substrate is fixed flat on the Spreader table
• Coating thickness requirements to select the appropriate bar or drawdown blade
• Pay attention to the Spreader Stability when operating
• Pay attention to safety protection during UV curing
• Regularly clean and maintain Spreader parts
