Overview

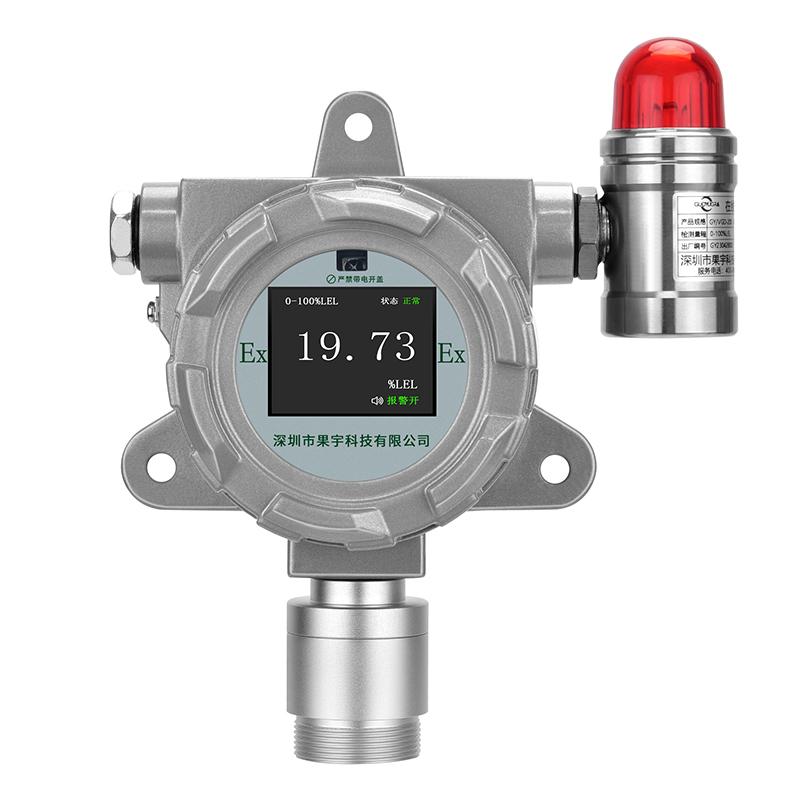

Formaldehyde detector is a low-power Modular design using MCU chip, intelligent Sensor detection technology, overall flameproof (d) structure, fixed Installation method detector. The standard configuration is LCDTFT high definition LCD display, three-wire 4~ 20mA analog, RS485 digital and switching signal output, provide customized products according to user requests, and also support Output signal fine-tuning and other functions to facilitate system networking and maintenance.
Features
1. Adopt Customizable Range Intelligent Sensor, which guarantees the advantages of high Sensitivity, high accuracy, linear stability and fast Response of the detector;
2. The use of MCU chip highlights the low power consumption of the detector, safe and reliable performance, accurate data conversion, stable signal output, etc.;
3.4-20mA, RS485, switch and other signal output, easy access to PLC, DCS, DDC and other industrial control systems, can also be a single machine through the switch linkage fan, solenoid valve and other control equipment;
4. Support customized wireless signal transmission: Zigbee, LORA, 433M, 4G, WiFi, NB, GPRS, etc.;
5 point array high definition LCDTFT LCD screen, Chinese and English Operating interface can be switched;
6. The detector can be operated by remote control without opening the lid to perform function menu operations such as alarm value, zero adjustment, calibrating, reset, and modification of the address code;
7. Local integrated sound and light alarm indication, remote mobile phones, computers, monitoring rooms, third-party platforms and other alarm prompts can be realized through alarm control host or wireless signal, and infrared remote control can also be silenced with one click;
8. Aluminum alloy cast body explosion-proof shell, sturdy and durable;
9. Passed a variety of CMA, CNAS, CE, ROHS, SIL, UL, ECM safety and other international certifications;
10. Explosion-proof certificate grade: Ex db IIC T6 Gb; explosion-proof certificate number: SYEx23.04100.
Principle
Formaldehyde detector adopts the principle of catalytic combustion detection and detects gas concentration by diffusion Sampling method.
Applications
Workplace environment Gas detection, industrial process control, safety monitoring
Standards
GB/T3836.1-2021、GB/T3836.31-2021、GB3836.15-2000、GB12476.1-2013、GB12358-2006、GBZ2.1-2007、GB4208-2008
Steps
1. Carry out function menu operations such as alarm value, zero adjustment, calibrate, reset, and address code modification of the detector through remote control without opening the lid;
2. Connection cable: 4~ 20mA choose three-core Shielding cable, RS485 choose four-core, when the distance exceeds 1000 meters, the single wire diameter is ≥ 1.5mm, and the Shielding layer is connected to the earth;
3. Optional wireless transmission module for data transmission.
Notice
• Operating voltage is DC24V (12V~ 30V), please ensure that the power supply matches;
• Working Ambient Temperature -20~ 50 ℃, Humidity 10-95% RH (non-condensing);
• Sensor life is 2 to 3 years, depending on the Operating Environment;
• Explosion-proof form Probe Transmitter and Sensor are flameproof;
• When connecting the cable, the distance exceeding 1000 meters requires a single wire diameter ≥ 1.5mm, and the Shielding layer is connected to the earth;
• Optional Accessories include 220V to 24V Power Adapter, computer monitoring accessories, etc., at the user's own expense;
• Output signal can be selected from 4-20mA, RS485, voltage signal, switching signal or wireless signal, voltage output and current output can be selected.
