Overview

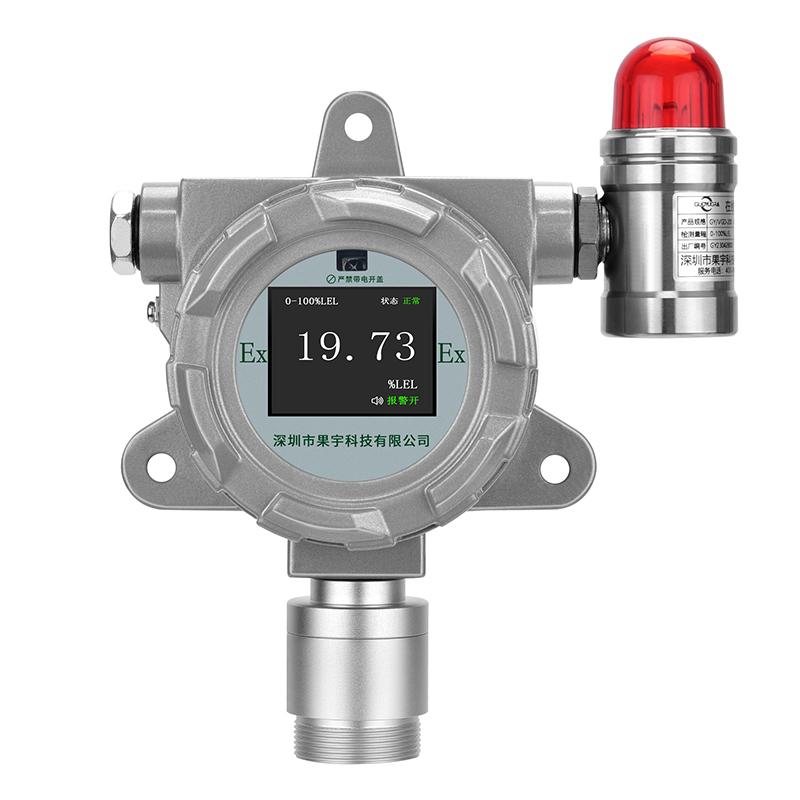

Isopropanol detector (infrared) is a low-power Modular design using MCU chip, intelligent Sensor detection technology, overall flameproof (d) structure, fixed Installation method detector. The standard configuration is LCDTFT high definition LCD display, three-wire 4~ 20mA analog, RS485 digital and switching signal output, customized products are provided according to user requests, and functions such as fine-tuning of Output signal are also supported, which is convenient for system networking and maintenance.
Features
1. Adopt Customizable Range Intelligent Sensor, which guarantees the advantages of high Sensitivity, high accuracy, linear stability and fast Response of the detector;
2. The use of MCU chip highlights the low power consumption of the detector, safe and reliable performance, accurate data conversion, stable signal output, etc.;
3.4-20mA, RS485, switch and other signal output, easy access to PLC, DCS, DDC and other industrial control systems, can also be a single machine through the switch linkage fan, solenoid valve and other control equipment;
4. Support customized wireless signal transmission: Zigbee, LORA, 433M, 4G, WiFi, NB, GPRS, etc.;
5 point array high definition LCDTFT LCD screen, Chinese and English Operating interface can be switched;
6. The detector can be operated by remote control without opening the lid to perform function menu operations such as alarm value, zero adjustment, calibrating, reset, and modification of the address code;
7. Local integrated sound and light alarm indication, remote mobile phones, computers, monitoring rooms, third-party platforms and other alarm prompts can be realized through alarm control host or wireless signal, and infrared remote control can also be silenced with one click;
8. Aluminum alloy cast body explosion-proof shell, sturdy and durable;
9. Passed a variety of CMA, CNAS, CE, ROHS, SIL, UL, ECM safety and other international certifications;
10. Explosion-proof certificate grade: Ex db IIC T6 Gb; explosion-proof certificate number: SYEx23.04100.
Principle
The detector adopts the principle of infrared NDIR detection, and detects gas concentration through diffusion Sampling method to achieve High Accuracy measurement.
Applications
Workplace environment Gas detection, explosive environment monitoring, flammability dust environment monitoring, industrial process control, safety alarm system
Standards
GB/T3836.1-2021、GB/T3836.31-2021、GB3836.15-2000、GB12476.1-2013、GB12358-2006、GBZ2.1-2007、GB4208-2008
Steps
1. Carry out function menu operations such as alarm value, zero adjustment, calibrate, reset, and address code modification of the detector through remote control without opening the lid;
2. Connection cable: 4~ 20mA choose three-core Shielding cable, RS485 choose four-core, when the distance exceeds 1000 meters, the single wire diameter is ≥ 1.5mm, and the Shielding layer is connected to the earth;
3. Wireless transmission: built-in LORA, Zigbee module for short-range wireless transmission, or external GPRS/4G module for remote data transmission to the cloud platform;
4. Alarm settings: Standard configuration of two-level alarm, can be set to conventional high and low alarm or interval control alarm.
Notice
• Operating voltage is DC24V (12V~ 30V) to ensure that the power supply meets the requirements;
• Working Ambient Temperature -20~ 50 ℃, Humidity 10-95% RH (non-condensing);
• Sensor life is about 10 years, depending on the Operating Environment;
• Explosion-proof form Probe Transmitter and Sensor are flameproof;
• When connecting the cable, the distance exceeding 1000 meters requires a single wire diameter ≥ 1.5mm, and the Shielding layer is connected to the earth;
• Optional Accessories such as 220V to 24V Power Adapter require additional configuration;
• Measurement certificate is optional, the user pays the fee;
• Output signal voltage output and current output choose one;
• Ensure that the installation meets explosion-proof standards and electrical interface requirements.
