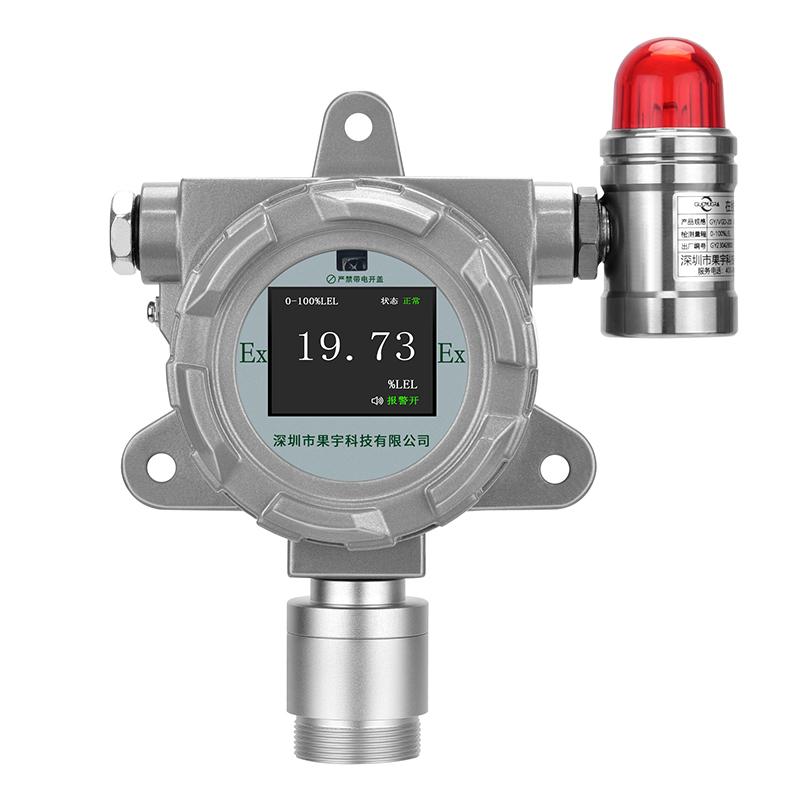

GUOYUGRA GY/VGD-200-C5H10-G (0-1% Vol) ring pentane Detector Infrared gas concentration Detector

Name: GUOYUGRA GY/VGD-200-C5H10-G (0-1% Vol) ring pentane Detector Infrared gas concentration Detector
Brand: GUOYUGR
SKU: NB048805
Price: 965.0 USD
Availability: InStock

$ 965.00Ex works

Using infrared NDIR detection principle, range 0-1% Vol, resolution up to 0.001, Response Time ≤ 30 seconds, Sensor life up to 10 years, support a variety of signal output and remote monitoring, with High Accuracy and Stability.

Model

GY/VGD-200-C5H10-G(0-1%Vol)

Get Quote

Category : Gas Detector

Brand : GUOYUGR

SKU : NB048805

Service :The delivery and service By NBCLab.Com

Overview

Ring pentane detector (infrared) is a low-power Modular design using MCU chip, intelligent Sensor detection technology, overall flameproof (d) structure, fixed Installation method detector. The standard configuration is LCDTFT high definition LCD display, three-wire 4~ 20mA analog, RS485 digital and switching signal output, customized products are provided according to user requests, and Output signal fine-tuning and other functions are also supported, which is convenient for system networking and maintenance.

Features

1. Customizable Range Intelligent Sensor is adopted to ensure the advantages of high Sensitivity, high accuracy, linear stability and fast Response of the detector 2. The MCU chip is used, highlighting the low power consumption of the detector, safe and reliable performance, accurate data conversion, stable signal output, etc 3.4-20mA, RS485, switch and other signal output, easy access to PLC, DCS, DDC and other industrial control systems, can also be a single machine through the switch linkage fan, solenoid valve and other control equipment 4. Support customized wireless signal transmission: Zigbee, LORA, 433M, 4G, WiFi, NB, GPRS, etc 5 point array high definition LCDTFT LCD screen, Chinese and English Operating interface can be switched 6. The alarm value, zero adjustment, calibrate, reset, modify the address code and other function menu operations of the detector can be performed by remote control without opening the lid 7. Local integrated sound and light alarm indication, remote mobile phones, computers, monitoring rooms, third-party platforms and other alarm prompts can be realized through alarm control host or wireless signal, and infrared remote control can also be silenced with one click 8. Aluminum alloy cast explosion-proof shell, sturdy and durable 9. Passed a variety of CMA, CNAS, CE, ROHS, SIL, UL, ECM safety and other international certifications 10. Explosion-proof certificate grade: Ex db IIC T6 Gb; explosion-proof certificate number: SYEx23.04100

Principle

The detector adopts the principle of infrared NDIR detection and detects the pentane gas by diffusion Sampling method.

Standards

GB/T3836.1-2021、GB/T3836.31-2021、GB3836.15-2000、GB12476.1-2013、GB12358-2006、GBZ2.1-2007、GB4208-2008

Steps

1. Carry out function menu operations such as alarm value, zero adjustment, calibrate, reset, and address code modification of the detector through remote control without opening the lid 2. Local integrated sound and light alarm indication, remote mobile phones, computers, monitoring rooms, third-party platforms and other alarm prompts can be realized through alarm control host or wireless signal 3. Infrared remote control one-button muffler

detection medium
Cyclopentane C5H10
receiving device
User computer, control alarm, PLC, DCS, DDC, etc
Operating Mode
diffusion
Detection principle
Infrared NDIR
detection Range
0-1%Vol
resolution
0.001
detection error
≤ +/- 1% F. S (≤ 1% in full scale)
Repeatability
≤±2%
Linearity
≤±2%
Response Time
≤30S
Operating Voltage
DC24V（12V~30V）
Operating temperature
-20℃~ 50℃ (Special requirements: -40℃~ + 70℃)
Operating humidity
10-95% RH (non-condensing)
Sensor life
10 years (depending on the environment used)
Explosion-proof form
Probe Transmitters and Sensors are Flameproof
connecting cable
① 4~ 20mA choose three-core Shielding cable, RS485 choose four-core, when the distance exceeds 1000 meters (with a detector), the single wire diameter is ≥ 1.5mm, and the Shielding layer is connected to the earth. ② Wireless transmission: can be built-in LORA, Zigbeg module, short-Range wireless transmission; can be external GPRS/4G module, remote data transmission to cloud platform, can view history on computer and mobile phone, without distance restrictions (optional)
Alarm mode
On-site sound and light alarm, external alarm, remote controller alarm, computer data collection software alarm, etc
Alarm settings
Standard configuration Two-level alarm; Alarm mode can be set: conventional high and low alarm, interval control alarm
Dimension
182*201*92（L*W*H）
electrical interface
Default M20X1.5 internal thread, optional 3/4NPT, 1/2NPT
Measurement certificate
Optional, user pays
Optional Accessories
220V to 24V Power Adapter. Computer monitoring accessories: free host computer software, USB to RS485 conversion cable, RS485 to network port converter
Output signal 1
① 4-20mA signal: standard 12-bit accuracy 4-20mA output chip, transmission distance 1Km; ② RS485 signal: using standard MODBUS RTU protocol, transmission distance 1Km
Output signal 2
③ Voltage signal: 0.4-2 V, 0-5V, 0-10V output, optional (Voltage output and current output choose one); ④ Switching signal: standard 1 group of passive contact point relays, capacity 220VAC 3A/24VDC 3A; ⑤ GPRS, 4G, WI FI, LORA, ZigBee and other wireless signals

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
